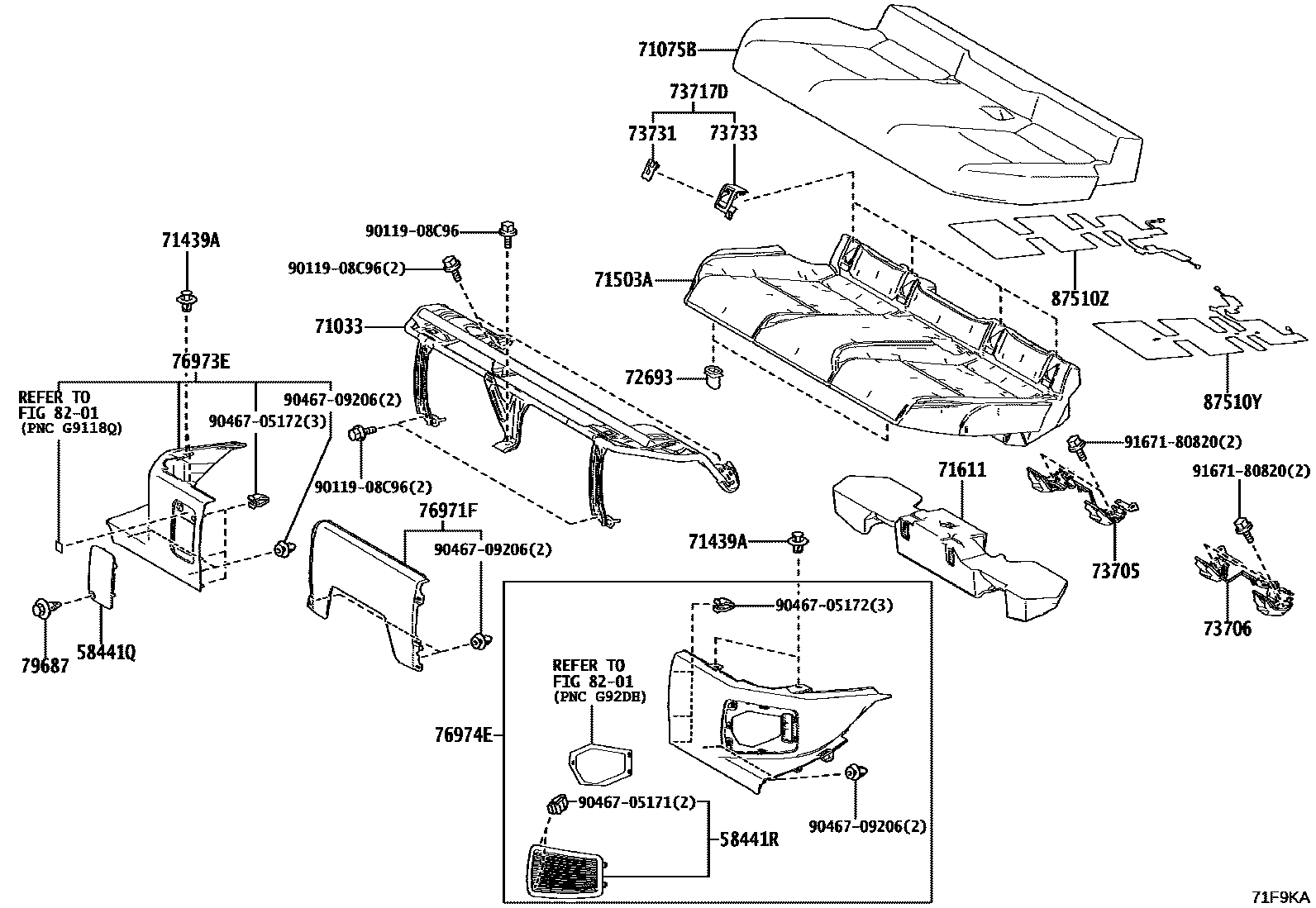

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK

58441QCOVER, BATTERY SERVICE HOLE, RH

main58441-30020-C0iAZSH38202406

BLACK,TRIM2#,4#

58441RCOVER, BATTERY SERVICE HOLE, LH

main58441-30030-C0iAZSH38202406

BLACK,TRIM2#,4#

71033LEG SUB-ASSY, REAR SEAT CUSHION

main71033-30010iAZSH38202406

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30L10-C0iAZSH38202406

BLACK,TRIM2#

main71075-30L10-E0iAZSH38202406

SADDLE TAN,TRIM4#

71439ACLIP

main90467-08226iAZSH38202406

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-30340iAZSH38202406

71611PAD, REAR SEAT CUSHION

main71611-30780iAZSH38202406

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iAZSH38202406

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30100iAZSH38202406

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30090iAZSH38202406

73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-30030-C0iAZSH38202406

BLACK,TRIM2#,4#

73731COVER, CHILD RESTRAINT SEAT

main73731-33020-C0iAZSH38202406

BLACK,TRIM2#,4#

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-30010-C0iAZSH38202406

BLACK,TRIM2#,4#

76971FCOVER, REAR UNDER

main76971-30010-C0iAZSH38202406

BLACK,TRIM2#,4#

76973ECOVER, REAR UNDER SIDE, RH

main76973-30010-C0iAZSH38202406

BLACK,TRIM2#,4#

76974ECOVER, REAR UNDER SIDE, LH

main76974-30010-C0iAZSH38202406

BLACK,TRIM2#,4#

79687CLIP

main90467-06165-C3iAZSH38202406

BLACK,TRIM2#,4#

sub90467-06165

main90467-13082-A0iAZSH38202406

MELLOW WHITE

sub90467-13082

8201

87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH

main87510-30680iAZSH38202406

87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH

main87510-30670iAZSH38202406

9011908C96

main90119-08C96

9046705171

main90467-05171

9046705172

main90467-05172

9046709206

main90467-09206

9167180820

main91671-80820

25 parts on this diagram · 2 diagrams in section
