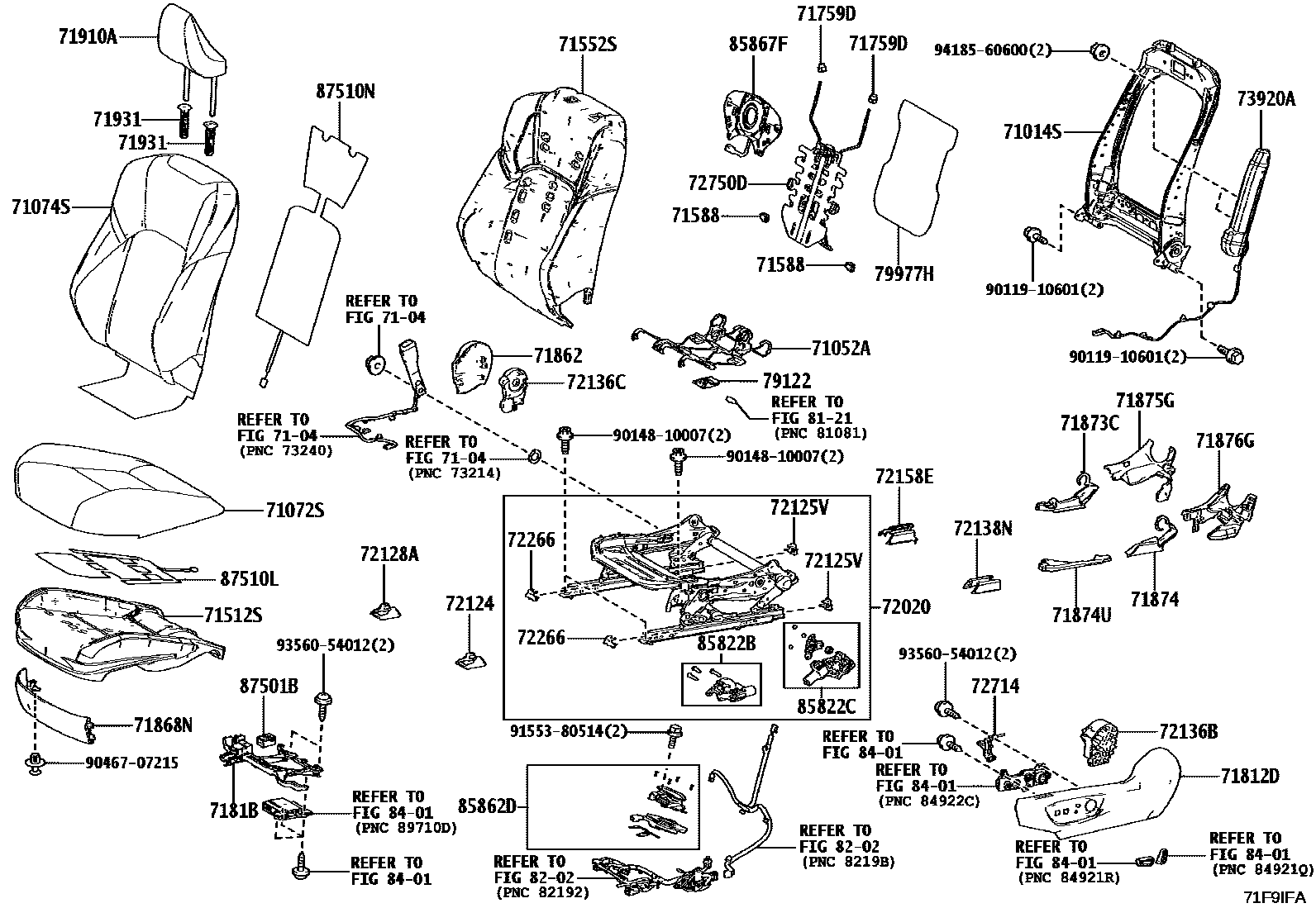

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
SADDLE TAN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
SADDLE TAN,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
71759DHOOK, FRONT SEATBACK, NO.2
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71868NSHIELD, FRONT SEAT CUSHION, FRONT LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873CSHIELD, REAR SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
SADDLE TAN,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM0#,2#,4#
W(LOCK),BLACK,TRIM2#,4#
W/O(LOCK),BLACK,TRIM0#,2#,4#
W/O(LOCK),BLACK,TRIM2#,4#
72020ADJUSTER ASSY, FRONT SEAT, LH
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72125VCOVER, SEAT TRACK, UPPER REAR LH
sub72125-47010
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72136SPACER, SEAT TRACK, LOWER NO.1
72136BSPACER, SEAT TRACK, LOWER NO.3
72136CSPACER, SEAT TRACK, LOWER NO.4
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
72266COVER, SEAT TRACK UPPER RAIL, LH
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73920AAIRBAG ASSY, FRONT SEAT, LH
79122BRACKET, FRONT SEAT CUSHION, LH
79977HFELT, FRONT SEATBACK, LH
8121
8202
8401
85822BMOTOR ASSY, POWER SEAT TILT, LH
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
85862DBLOWER, SEAT CUSHION CLIMATE CONTROL, LH
85867FBLOWER, SEATBACK CLIMATE CONTROL, RH
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9155380514
main91553-80514
9356054012
main93560-54012
9418560600
main94185-60600
52 parts on this diagram · 2 diagrams in section
