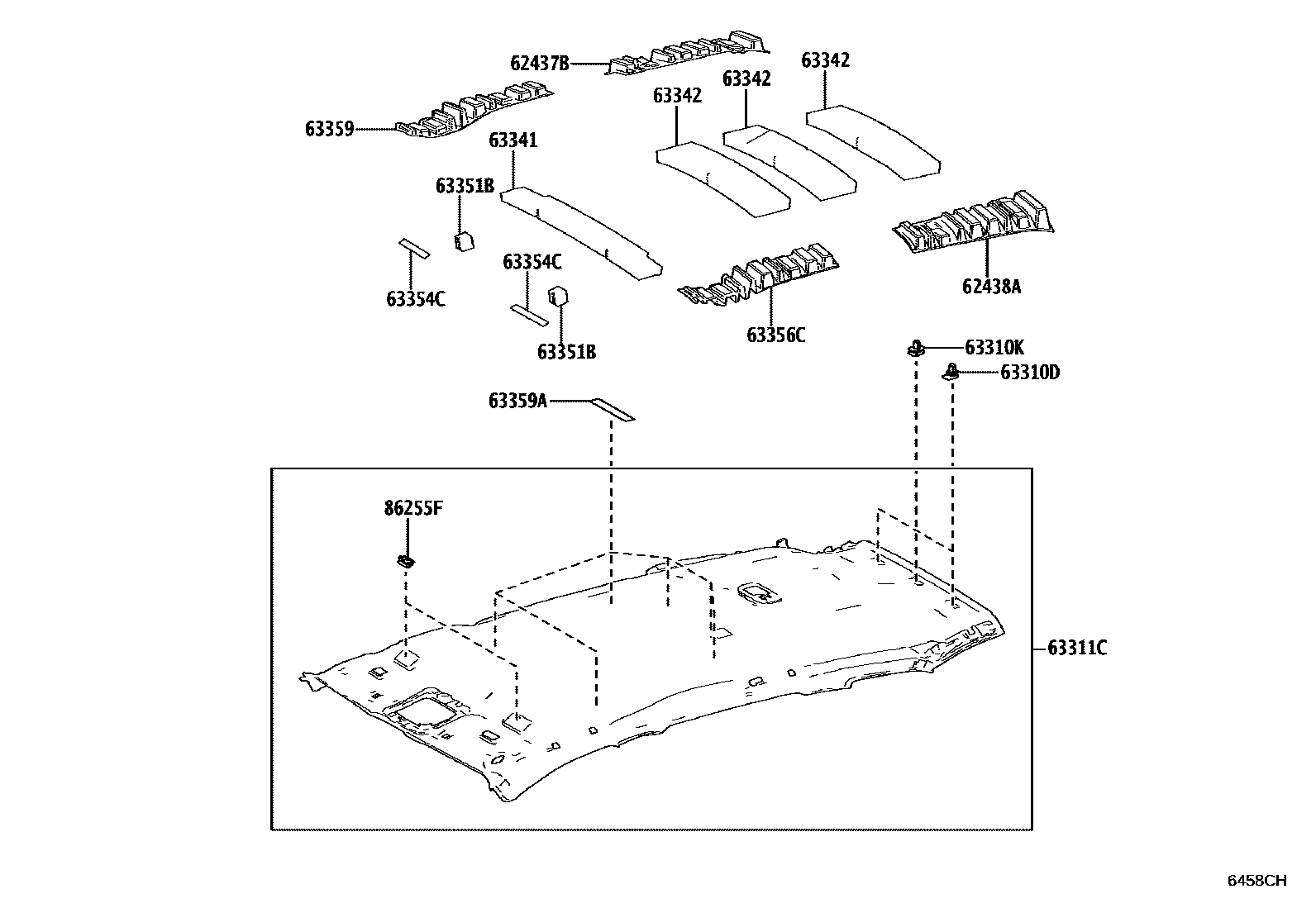

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-30070iAZSH38..M202406

main62437-30080iAZSH38..G202406

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-30070iAZSH38..M202406

main62438-30080iAZSH38..G202406

63310DCLIP, ROOF HEADLINING

main90467-09126iAZSH38202406

63310KCLIP

main90467-10181iAZSH38202406

63311CHEADLINING, ROOF

main63311-30L10-C1iAZSH38..M202406

BLACK,TRIM2#,4#

main63311-30L20-C1iAZSH38..G202406

BLACK,TRIM2#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-30390iAZSH38..M202406

63342PAD, ROOF SILENCER, NO.2

main63341-30490iAZSH38..M202406

63351BPAD, ROOF HEADLINING

main63351-30150iAZSH38..M202406

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-30060iAZSH38202406

63356CHOLDER, SUNSHADE TRIM

main63356-30030iAZSH38..M202406

63359PAD, ROOF HEADLINING END

main63355-30040iAZSH38..M202406

63359APAD, ROOF SILENCER, NO.18

main63359-30010iAZSH38..M202406-202409

86255FCASE, MICROPHONE

main86255-78020-C0iAZSH38202406

BLACK,TRIM2#,4#

13 parts on this diagram · 3 diagrams in section
