ROOF PANEL & BACK WINDOW GLASS

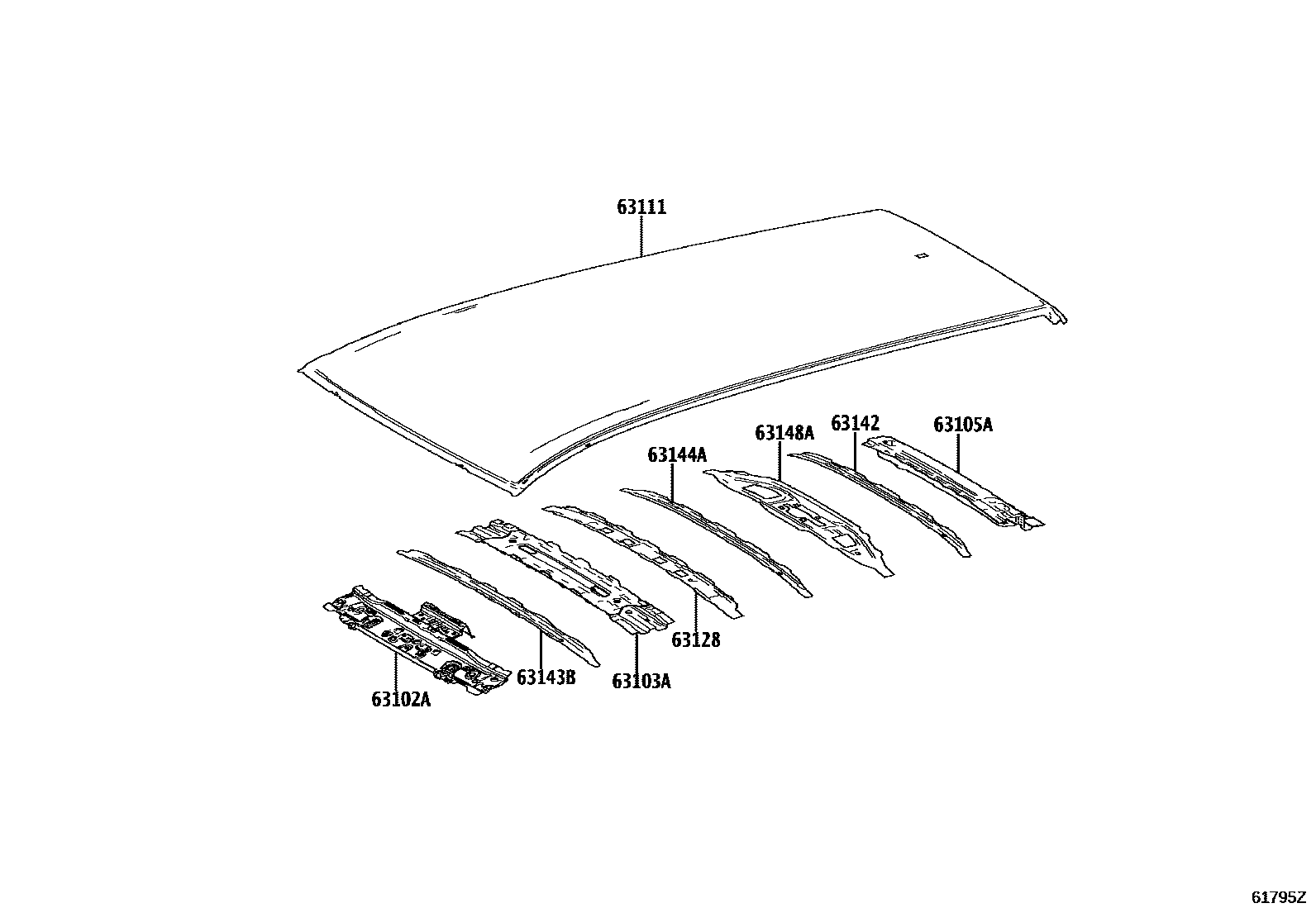

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF HOUSING 0004 1ROOF RAIL(NORMAL ROOF) 0005 1ROOF RAIL(PANORAMA ROOF)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30510iAZSH38..G202406

main63102-30914iAZSH38..M202406

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-30460iAZSH38..M202406

main63103-30470iAZSH38..G202406

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-30150iAZSH38202406

63111PANEL, ROOF

main63111-30B80iAZSH38..M202406

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30190iAZSH38..M202406

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30260iAZSH38202406

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-30350iAZSH38..M202406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30300iAZSH38..M202406

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30230iAZSH38..M202406

9 parts on this diagram · 5 diagrams in section
