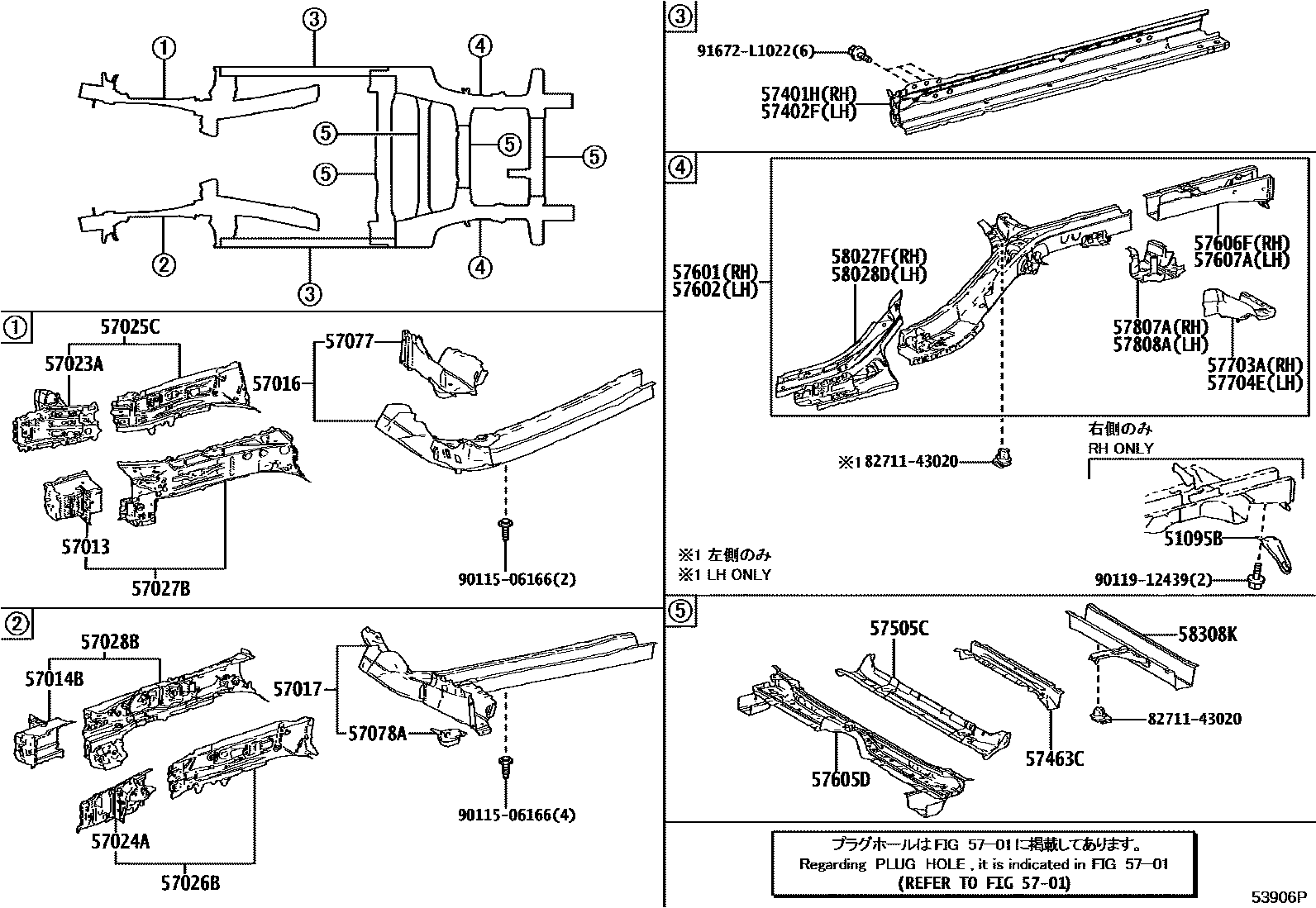

FLOOR SIDE MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57463CMEMBER, CENTER FLOOR CROSS, NO.3
57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606FMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH
57704EBRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH
57807AREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH
57808AREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 LH
58027FPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028DPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58308KPANEL SUB-ASSY, BODY LOWER BACK, LOWER
8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-43020
9011506166
main90115-06166
9011912439
main90119-12439
91672L1022
main91672-L1022
34 parts on this diagram · 1 diagram in section
