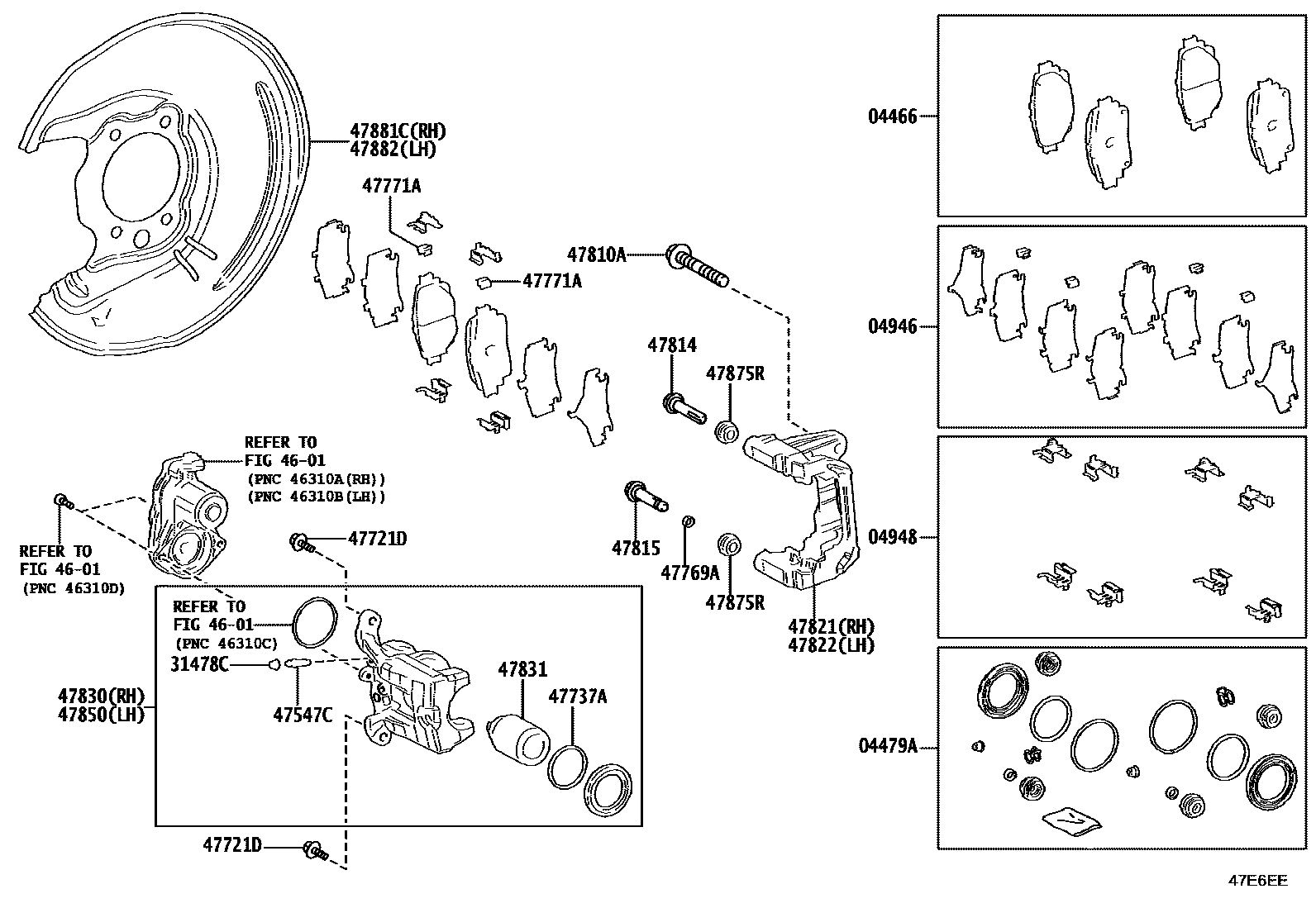

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAZSH38¥6,600202406

MARK NBK D6363-FF N

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iAZSH38¥2,200202406

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAZSH38¥1,780202406

04948FITTING KIT, DISC BRAKE, REAR

main04948-V2010iAZSH38¥1,040202406

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAZSH38¥160202406

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAZSH38¥200202406

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAZSH38¥270202406

*8-1.00PX23-12.5

sub90016-AA614¥270

47737ASEAL, REAR DISC BRAKE CYLINDER PISTON

main47737-28040iAZSH38¥90202406

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAZSH38¥50202406

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-78010iAZSH38¥140202406

sub47871-0R050

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12426iAZSH38¥240202406

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAZSH38¥510202406

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAZSH38¥510202406

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42100iAZSH38¥4,780202406

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42090iAZSH38¥4,780202406

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47850-42090iAZSH38¥26,100202406

47831PISTON, REAR DISC BRAKE

main47831-58040iAZSH38¥1,060202406

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-42100iAZSH38¥26,100202406

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAZSH38¥70202406

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020iAZSH38¥1,530202406

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020iAZSH38¥1,530202406

22 parts on this diagram · 1 diagram in section
