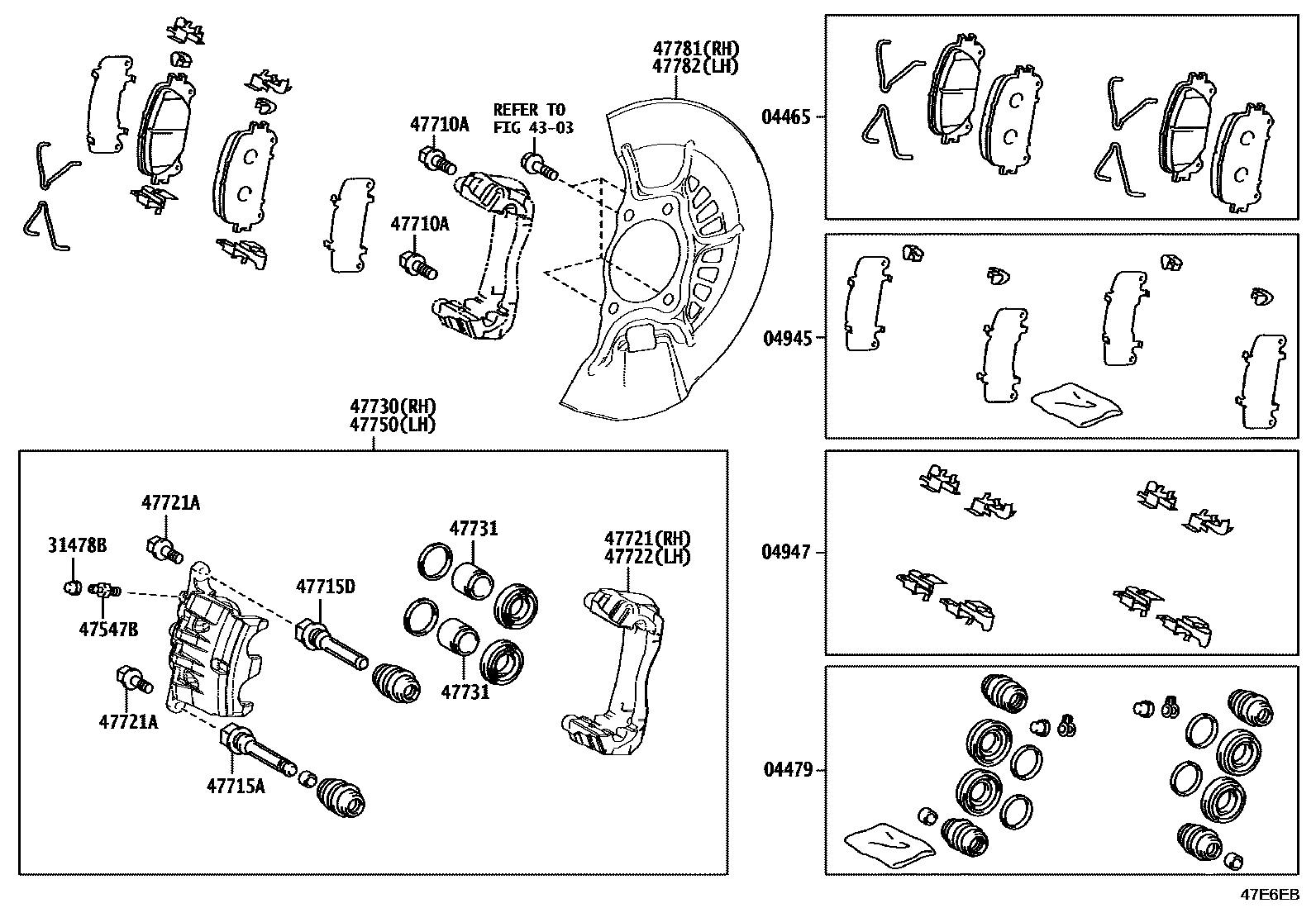

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-78010iAZSH38202406

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iAZSH38202406

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAZSH38202406

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAZSH38202406

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAZSH38202406

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAZSH38202406

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iAZSH38202406

*12-1.25PX35.5-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAZSH38202406

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iAZSH38202406

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAZSH38202406

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAZSH38202406

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAZSH38202406

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iAZSH38202406

47731PISTON, FRONT DISC BRAKE

main47731-48150iAZSH38202406

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iAZSH38202406

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAZSH38202406

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAZSH38202406

18 parts on this diagram · 1 diagram in section
