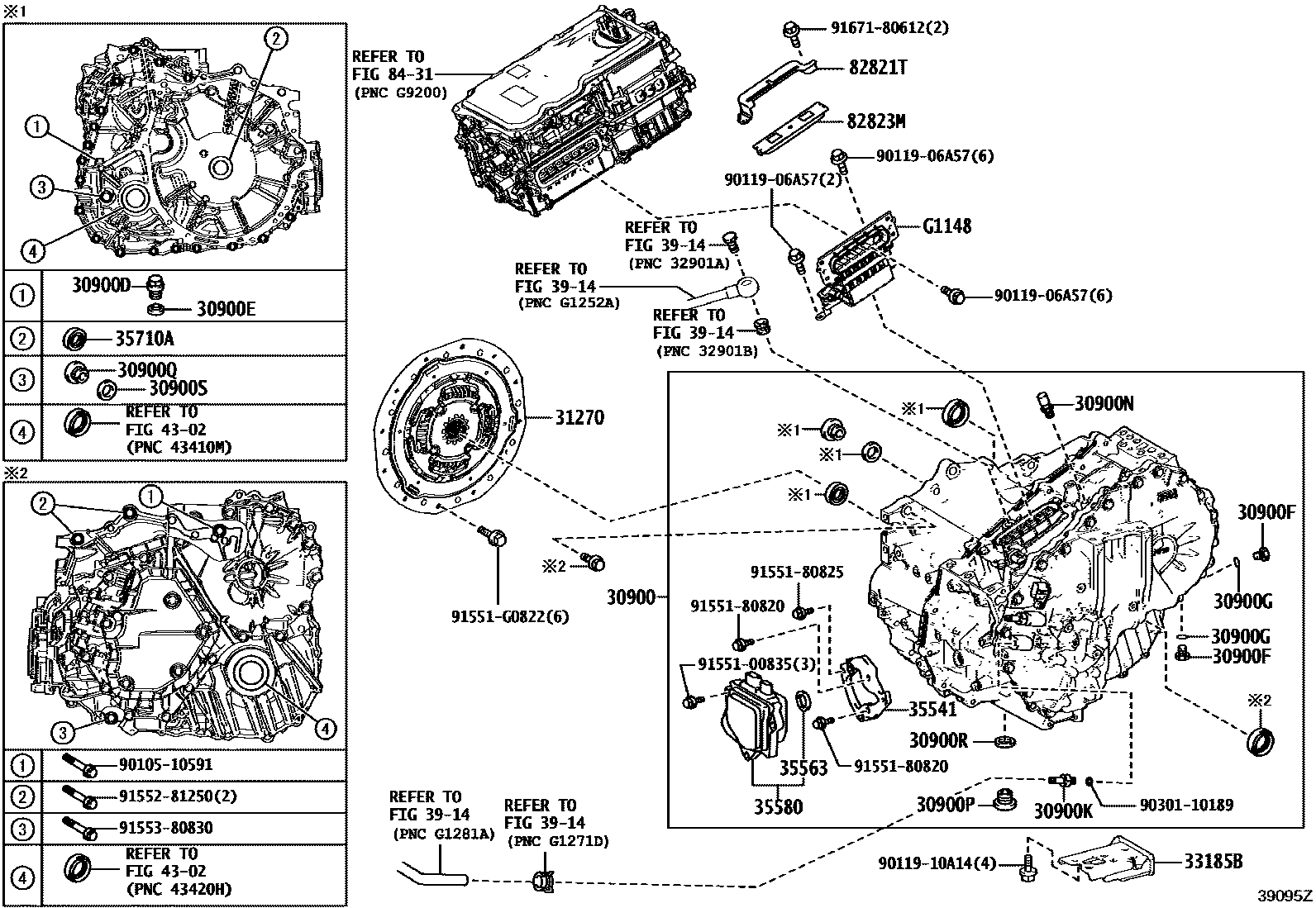

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1RR TRACTION MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-78080iAZSH38202406-202411

sub30970-78060

main30970-78060iAZSH38202411

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAZSH38202406

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAZSH38202406

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001iAZSH38202406

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189iAZSH38202406

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAZSH38202406

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAZSH38202406

30900PPLUG, DRAIN(HEV)

main90341-18016iAZSH38202406

30900QPLUG, FILLER(HEV)

main90341-18016iAZSH38202406

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAZSH38202406

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAZSH38202406

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040iAZSH38202406

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42030iAZSH38202406

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-78010iAZSH38202406

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iAZSH38202406

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-52011iAZSH38202406

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAZSH38202406

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iAZSH38202406

82823MCAP, TERMINAL

main82823-47040iAZSH38202406

8431

G1148CABLE, MOTOR

mainG114848110iAZSH38202406

9010510591

main90105-10591

9011906A57

main90119-06A57

9011910A14

main90119-10A14

9030110189

main90301-10189

9155100835

main91551-00835

9155180820

main91551-80820

9155180825

main91551-80825

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

34 parts on this diagram · 2 diagrams in section
