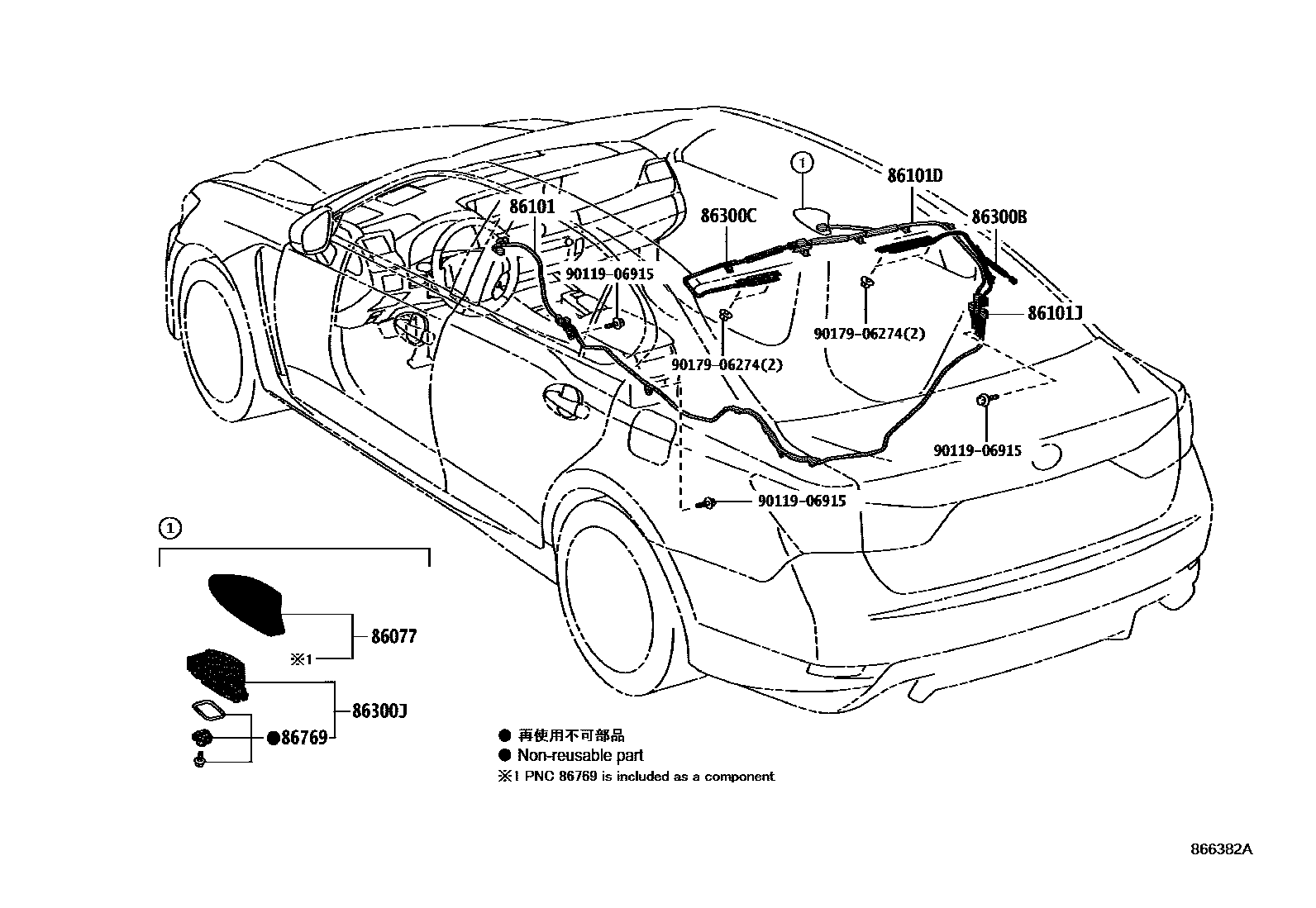

ANTENNA

86077COVER KIT, ANTENNA

main86077-53010-A1iURL10201510-202007

WHITE NOVA GF.,083

sub86077-53010

main86077-53010-B0iURL10201510-201609

MERCURY GRAY MC.,1H9

sub86077-53010

main86077-53010-B2iURL10201510-202007

SONIC TITANIUM,1J7

sub86077-53010

main86077-53010-B3iURL10201510-202007

SONIC SILVER,1J2

sub86077-53010

main86077-53010-B5iURL10201609-202007

DK.GRAY MC.,1G0

sub86077-53010

main86077-53010-B7iURL10201805-201909

MARCURY GRAY MC.MATT,1K7

sub86077-53010

main86077-53010-C3iURL10201510-202007

GRAPHITE BLACK GF.,223

sub86077-53010

main86077-53010-D0iURL10201510-202007

RED MC.CS.,3R1

sub86077-53010

main86077-53010-E2iURL10201510-201709

ORANGE,4W7

sub86077-53010

main86077-53010-F0iURL10201805-202007

NAPLES YELLOW,5C1

sub86077-53010

main86077-53010-J2iURL10201510-202007

BLUE,8X1

sub86077-53010

86101CORD SUB-ASSY, ANTENNA

main86101-30P40iURL10201510-202007

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30G50iURL10201510-201709

main86101-30R10iURL10201709-202007

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30K40iURL10201510-202007

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30C60iURL10201510-202007

86300CANTENNA ASSY, AMPLIFIER, NO.2

86300JANTENNA ASSY, ROOF

main86760-33190iURL10201709-202007

main86760-53070iURL10201510-201604

sub86760-53071

main86760-53071iURL10201605-201709

86769HOUSING, ROOF ANTENNA

main86769-53010iURL10201510-202007

9011906915

main90119-06915

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
