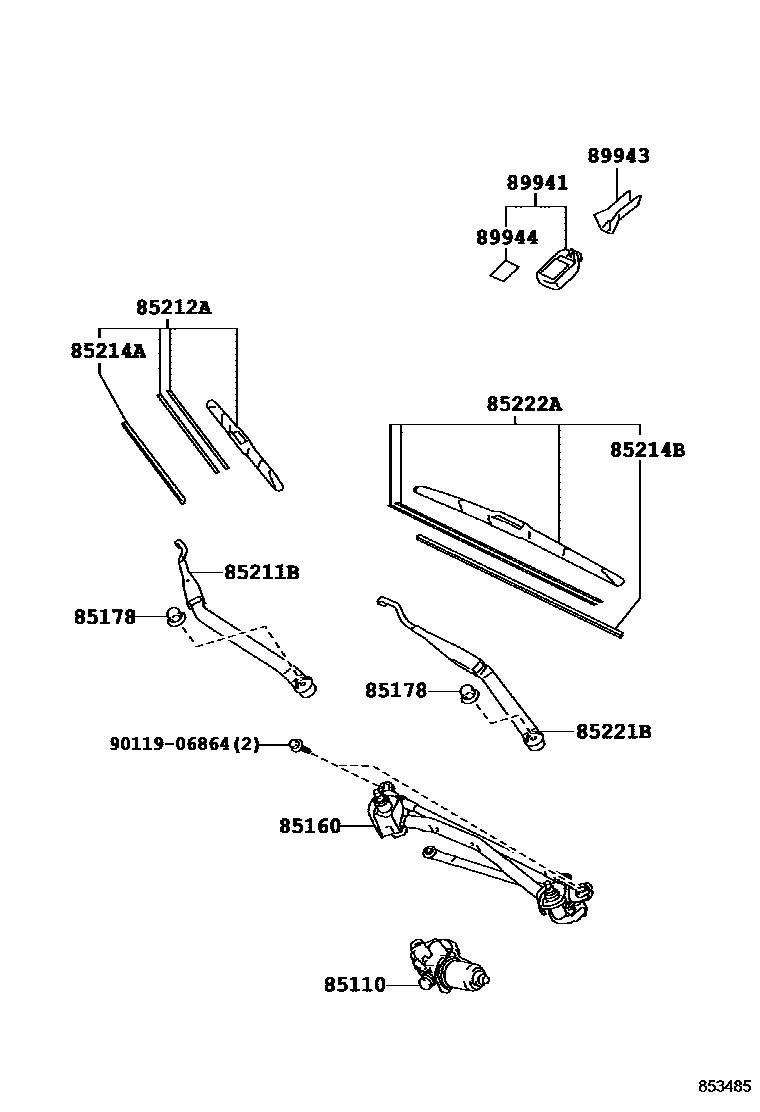

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30700iURL10201510-202007

85160LINK ASSY, WINDSHIELD WIPER

main85150-30740iURL10201510-202007

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iURL10201510-202007

85211BARM, FRONT WIPER, RH

main85211-30790iURL10201510-202007

85212ABLADE, FR WIPER, RH

main85212-30480iURL10201510-202007

85214ARUBBER, WIPER, RH

main85214-33180iURL10201510-202007

85214BRUBBER, WIPER, LH

main85214-52110iURL10201510-202007

85221BARM, FRONT WIPER, LH

main85221-30690iURL10201510-202007

85222ABLADE, FR WIPER, LH

main85222-30650iURL10201510-202007

89941SENSOR, RAIN

main89941-52010

89943COVER, RAIN SENSOR

main89943-33050

89944TAPE, RAIN SENSOR

main89944-42010

9011906864

main90119-06864

13 parts on this diagram · 1 diagram in section
