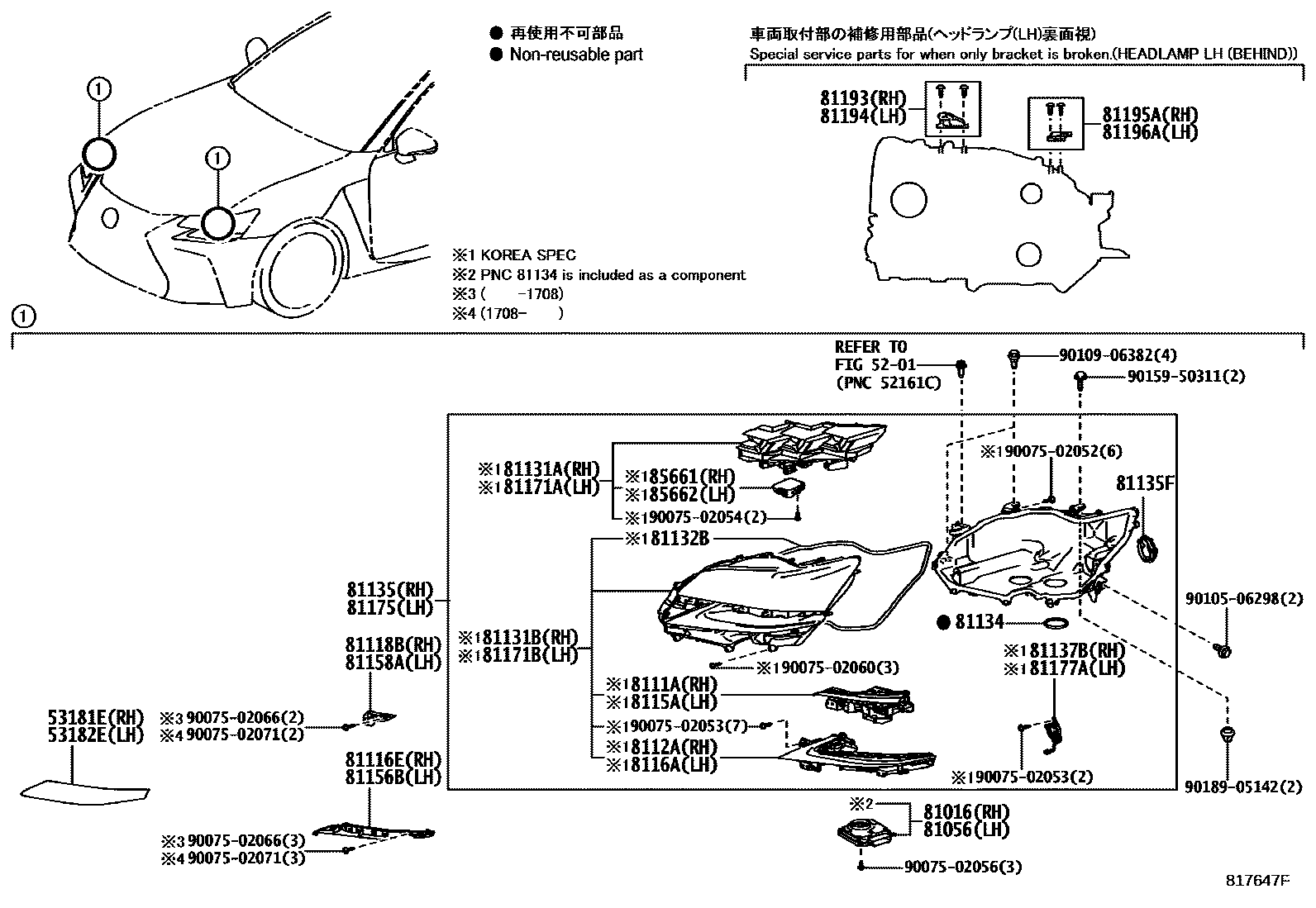

HEADLAMP
5201
53181ECOVER, HEADLAMP, RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
53182ECOVER, HEADLAMP, LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81116EBRACKET, HEADLAMP, RH NO.2
81118BBRACKET, HEADLAMP, RH NO.1
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
main8112A-30K60
81131AUNIT, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135FCOVER, HEADLAMP BACK
81137BFAN, HEADLAMP, RH
81156BBRACKET, HEADLAMP, LH NO.2
81158ABRACKET, HEADLAMP, LH NO.1
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
main8116A-30K60
81171AUNIT, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81177AFAN, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
85661MOTOR, HEADLAMP LEVELING, RH
main85661-48060
85662MOTOR, HEADLAMP LEVELING, LH
main85691-48010
9007502052
main90075-02052
9007502053
main90075-02053
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9007502066
main90075-02066
9007502071
main90075-02071
9010506298
main90105-06298
9010906382
main90109-06382
9015950311
main90159-50311
9018905142
main90189-05142
41 parts on this diagram · 1 diagram in section
