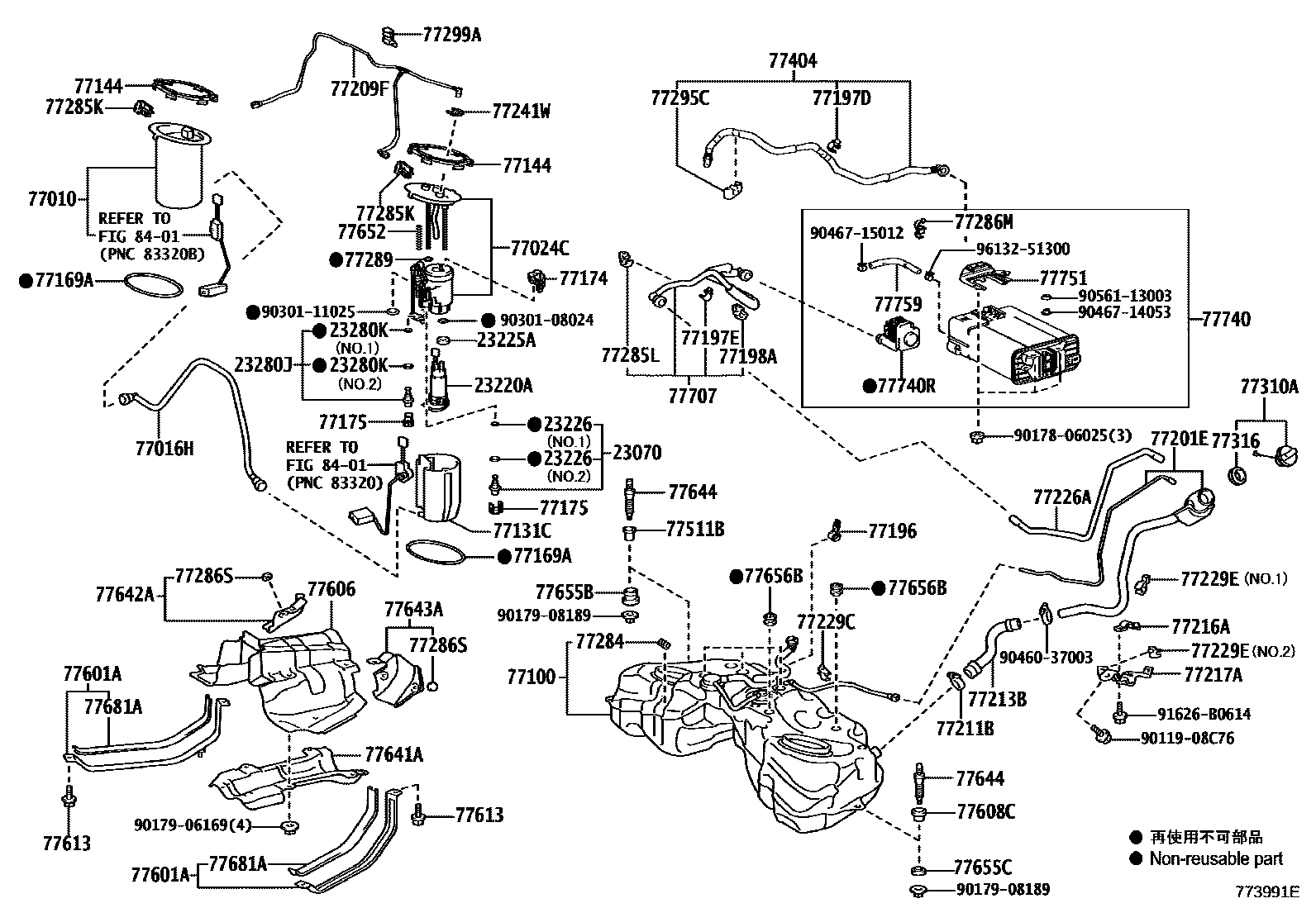

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77197ECLAMP, EVAPORATION VENT TUBE, NO.2
77198ACLAMP, EVAPORATION VENT TUBE, NO.3
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77241WCLIP, TUBE JOINT
77284CLAMP, FUEL TUBE
77285KCLAMP, FUEL TUBE, NO.1
77285LCLAMP, FUEL TUBE, NO.1
77286MCLAMP, FUEL TUBE, NO.6
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77295CGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77404HOSE SUB-ASSY, FUEL TANK VENT
77511BBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77655BCUSHION, FUEL TANK
77655CCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
77751BRACKET, CHARCOAL CANISTER BASE
77759HOSE, CHARCOAL CANISTER
8401
9011908C76
main90119-08C76
9017806025
main90178-06025
9017906169
main90179-06169
9017908189
main90179-08189
9030108024
main90301-08024
9030111025
main90301-11025
9046037003
main90460-37003
9046714053
main90467-14053
9046715012
main90467-15012
9056113003
main90561-13003
91626B0614
main91626-B0614
9613251300
main96132-51300
72 parts on this diagram · 3 diagrams in section
