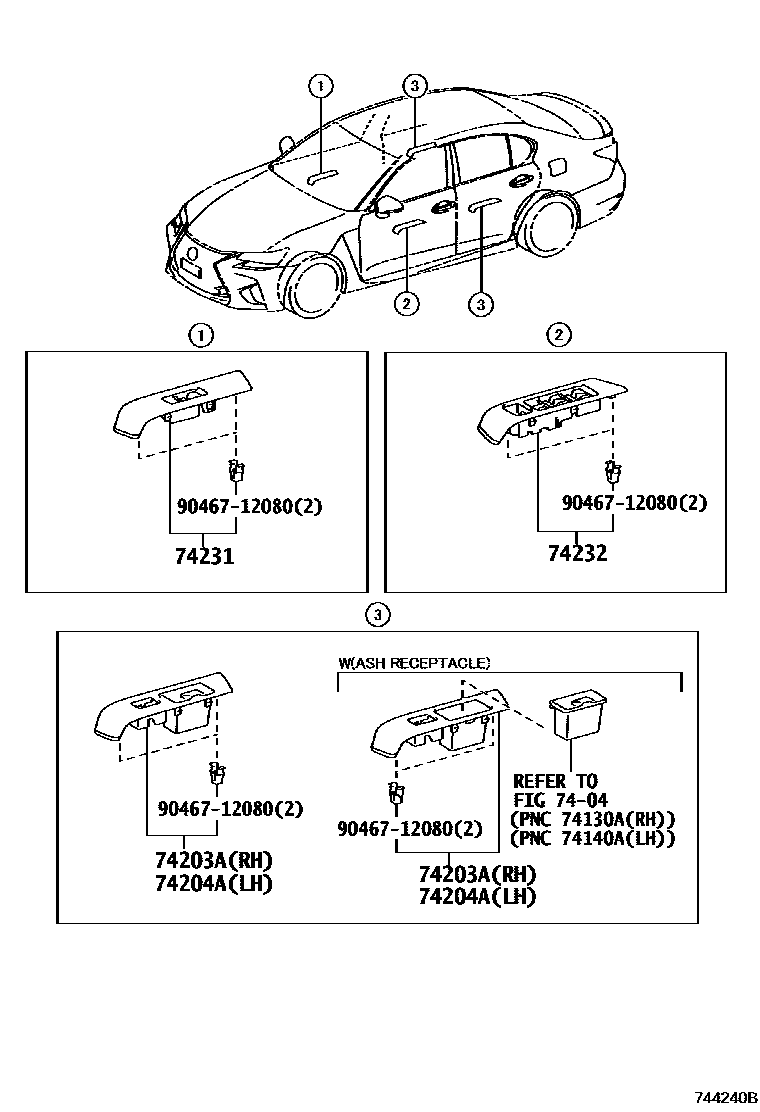

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

7404

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74270-30180iURL10201510-202007

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74280-30120iURL10201510-202007

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-30360iURL10201510-202007

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-30280iURL10201510-202007

9046712080

main90467-12080

6 parts on this diagram · 2 diagrams in section
