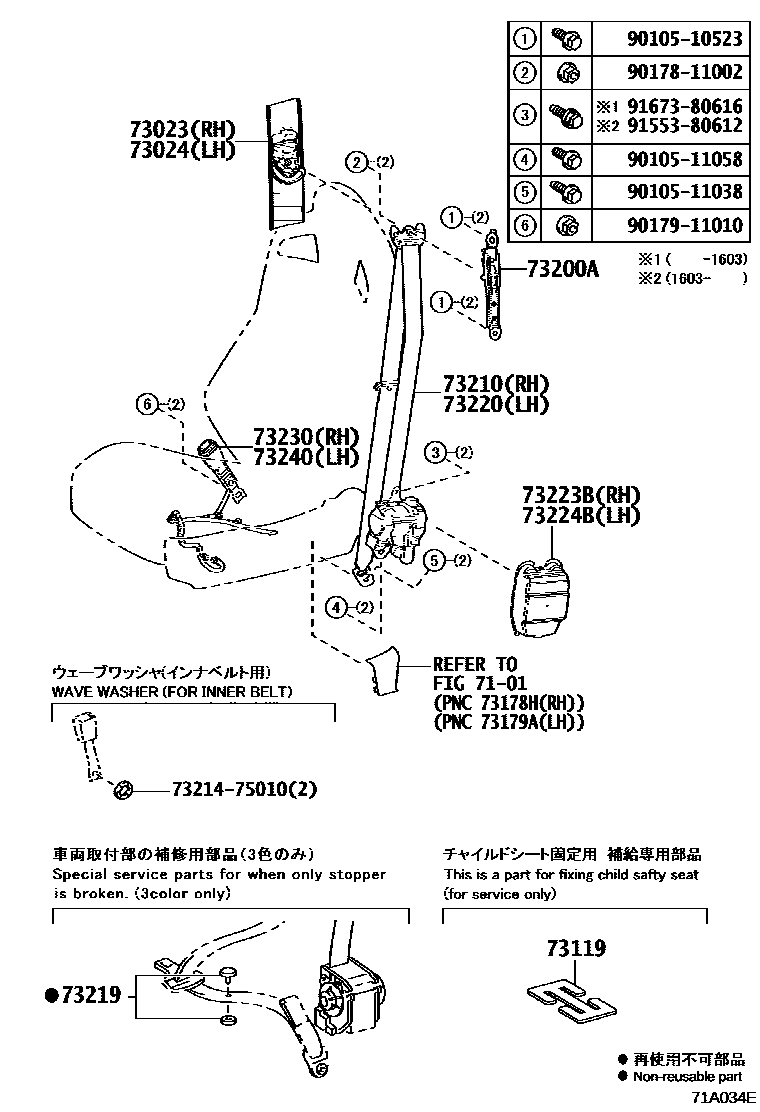

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

7101

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

sub73023-58010

sub73023-33030

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

sub73024-58010

sub73024-33030

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iURL10201510-202007

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30E50-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

main73210-30E50-C0iURL10201805-201909

BLACK,TRIM0#,1#,2#,3#,80

main73210-30E50-H0iURL10201805-201909

TURQUOISE BLUE,TRIM80

73219STOPPER, TONGUE PLATE

main73219-02010iURL10201510-202007

BLACK

main73219-02020iURL10201510-202007

GRAY

main73219-02030iURL10201510-202007

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30E40-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

main73220-30E40-C0iURL10201805-201909

BLACK,TRIM0#,1#,2#,3#,80

main73220-30E40-H0iURL10201805-201909

TURQUOISE BLUE,TRIM80

73223COVER, SEAT BELT RETRACTOR

main73223-30160iURL10201510-202007

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30150iURL10201510-202007

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73223-30150iURL10201510-202007

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30C20-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-30500-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511038

main90105-11038

9010511058

main90105-11058

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

9167380616

main91673-80616

21 parts on this diagram · 2 diagrams in section
