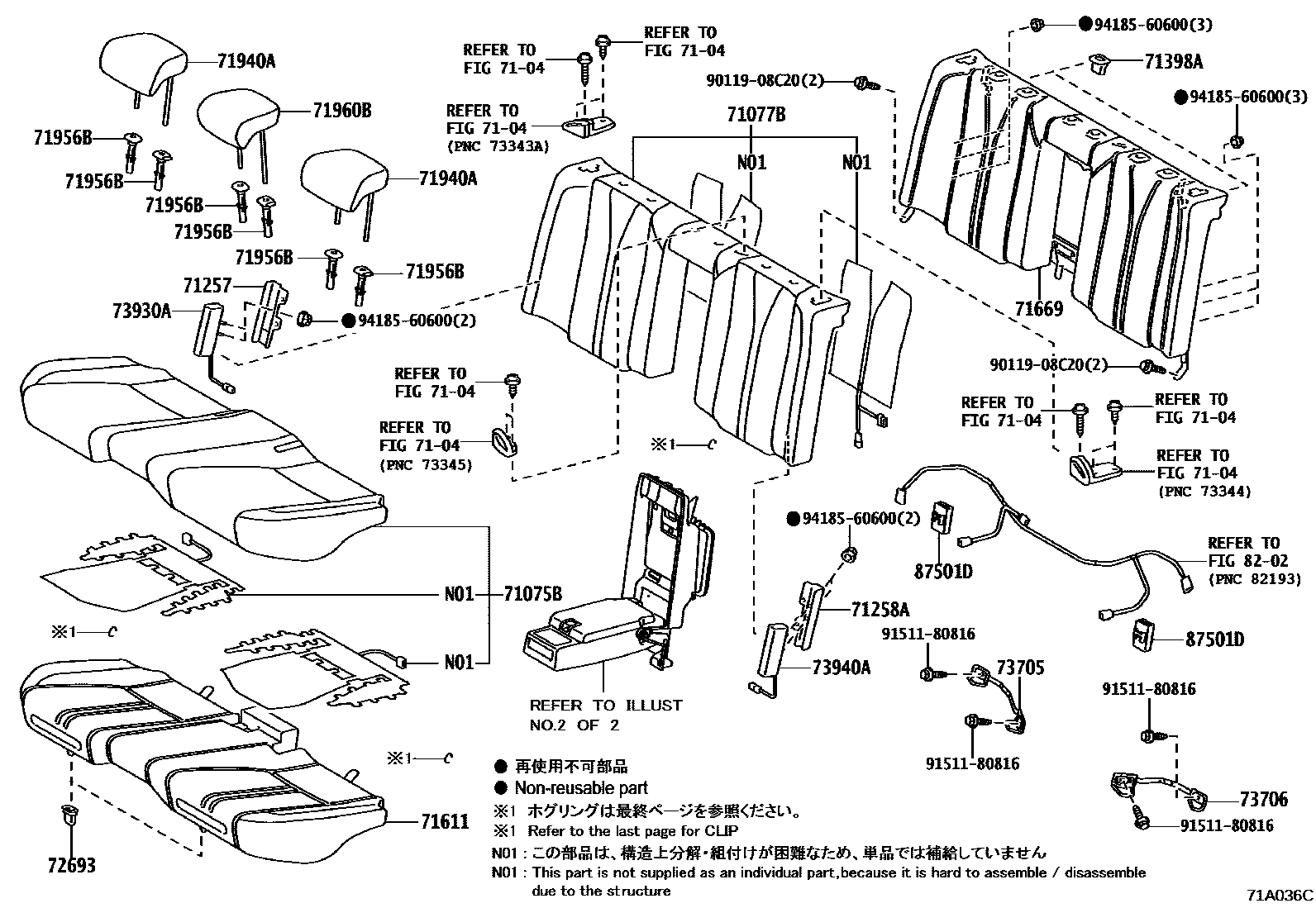

REAR SEAT & SEAT TRACK

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30J20-22i201805-201909

F 10TH ANNIVERSARY&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVERMATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/

sub71075-30J21

main71075-30J20-23supersedes 71075-30J50-21i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE,TRIM2#

sub71075-30J21

main71075-30J20-24supersedes 71075-30J50-22i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED,TRIM33,34,35

sub71075-30J21

main71075-30J20-25supersedes 71075-30J50-23i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,32

sub71075-30J21

main71075-30J20-26supersedes 71075-30J50-24i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/WHITE,TRIM0#

sub71075-30J21

main71075-30J20-B1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STONE/BLACK,TRIM1#

sub71075-30J21

main71075-30J20-C3supersedes 71075-30J00-20i201510-201805

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE,TRIM2#

sub71075-30J21

main71075-30J20-C5i201709-201805

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED/DK.ROSE,TRIM33,

sub71075-30J21

main71075-30J20-C6supersedes 71075-30J00-24i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE,TRIM2#

sub71075-30J21

main71075-30J20-C8i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED/DK.ROSE,TRIM33,

sub71075-30J21

main71075-30J20-C9i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,32

sub71075-30J21

main71075-30J20-D1i201709-201805

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,32

sub71075-30J21

main71075-30J40-20i201709-201805

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED

sub71075-30J41

main71075-30J40-21supersedes 71075-30J00-24i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLA

sub71075-30J41

main71075-30J40-23i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED

sub71075-30J41

main71075-30J40-24i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK

sub71075-30J41

main71075-30J40-B1i201510-201709

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STON

sub71075-30J41

main71075-30J40-C9supersedes 71075-30J00-20i201510-201805

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLA

sub71075-30J41

main71075-30J40-D1i201510-201709

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK

sub71075-30J41

main71075-30J50-20i201805-201909

F 10TH ANNIVERSARY&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLUE,TRIM8#

sub71075-30J51

main71075-30J50-B1i201510-201709

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),MOON STONE/BLACK,TRIM1#

sub71075-30J51

main71075-30J50-C1supersedes 71075-30J00-20i201510-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLUE,TRIM2#

sub71075-30J51

main71075-30J50-C3i201709-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED/DK.ROSE,TRIM33,34,35

sub71075-30J51

main71075-30J50-C4supersedes 71075-30J00-24i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLUE,TRIM2#

sub71075-30J51

main71075-30J50-C6i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED/DK.ROSE,TRIM33,34,35

sub71075-30J51

main71075-30J50-C7i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM30,31,32

sub71075-30J51

main71075-30J50-D1i201709-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM30,31,32

sub71075-30J51

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-30M20-21supersedes 71077-30M50-C9i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED,TRIM33,34,35

sub71077-30M21

main71077-30M20-22supersedes 71077-30M50-20i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/WHITE,TRIM0#

sub71077-30M21

main71077-30M20-23supersedes 71077-30M50-21i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE/BLACK,TRIM2#

sub71077-30M21

main71077-30M20-B1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STONE/BLACK,TRIM1#

sub71077-30M21

main71077-30M20-C2supersedes 71077-30M00-C0i201510-201805

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE,TRIM2#

sub71077-30M21

main71077-30M20-C4i201709-201805

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED/DK.ROSE,TRIM33,

sub71077-30M21

main71077-30M20-C7i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLACK,TRIM8#

sub71077-30M21

main71077-30M20-C8i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED,TRIM33,34,35

sub71077-30M21

main71077-30M20-C9supersedes 71077-30M00-23i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLUE/BLACK,TRIM2#

sub71077-30M21

main71077-30M20-D1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM3#

sub71077-30M21

main71077-30M20-D3i201805-201909

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,32

sub71077-30M21

main71077-30M20-D4supersedes 71077-30M50-D4i201909-202007

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,32

sub71077-30M21

main71077-30M40-26i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED

sub71077-30M41

main71077-30M40-28supersedes 71077-30M00-23i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLA

sub71077-30M41

main71077-30M40-B1i201510-201709

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STON

sub71077-30M41

main71077-30M40-C4supersedes 71077-30M00-C0i201510-201805

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/WHI

sub71077-30M41

main71077-30M40-C9i201709-201805

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED

sub71077-30M41

main71077-30M40-D1i201510-201709

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK

sub71077-30M41

main71077-30M40-D3i201805-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK

sub71077-30M41

main71077-30M50-B1i201510-201709

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),MOON STONE/BLACK,TRIM1#

sub71077-30M51

main71077-30M50-C0supersedes 71077-30M00-C0i201510-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLUE,TRIM2#

sub71077-30M51

main71077-30M50-C2i201709-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED/DK.ROSE,TRIM33,34,35

sub71077-30M51

main71077-30M50-C5i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLACK,TRIM8#

sub71077-30M51

main71077-30M50-C6i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED,TRIM33,34,35

sub71077-30M51

main71077-30M50-C7supersedes 71077-30M00-23i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLUE/BLACK,TRIM2#

sub71077-30M51

main71077-30M50-D1i201709-201805

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM30,31,32

sub71077-30M51

main71077-30M50-D3i201805-201909

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM30,31,32

sub71077-30M51

71257PLATE, REAR SEATBACK ANCHOR

main71257-30100i201510-202007

71258APLATE, REAR SEATBACK ANCHOR, LH

main71258-30170i201510-202007

71398AHOLDER, REAR SEATBACK

main71398-30010×2i201510-202007

71611PAD, REAR SEAT CUSHION

main71503-30280i201510-202007

71669PAD, REAR SEATBACK

main71507-30270i201510-202007

71940AHEADREST ASSY, REAR SEAT

main71940-30D80-A0×2i201909-202007

WHITE,TRIM0#

main71940-30D80-C0×2supersedes 71940-30D70-C1i201909-202007

BLACK,TRIM2#

main71940-30D80-D2×2supersedes 71940-30D70-D4i201909-202007

RED,TRIM3#

main71940-30D80-B2×2supersedes 71940-30D70-B4i201510-201709

SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),MOON STONE,TRIM1#

main71940-30D80-J0×2i201805-201909

F 10TH ANNIVERSARY&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLUE,TRIM8#

71956BSUPPORT, REAR SEAT HEADREST

main71930-52030-C1×3i201909-202007

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#,3#,8#

main71930-52030-P1×3i201510-201709

W(LOCK)&W(BUTTON),MOON STONE,TRIM1#

main71931-42020-C2×3i201510-201909

W(LOCK)&W/O(BUTTON),AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK

main71931-42020-S4×3i201510-201709

W(LOCK)&W/O(BUTTON),MOON STONE,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-30570-C1i201510-201909

BLACK,TRIM1#,2#,3#

main71960-30580-C0i201909-202007

BLACK,TRIM0#,1#,2#,3#,8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i201510-202007

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30050i201510-202007

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30050i201510-202007

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-30061i201510-202007

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-30061i201510-202007

8202

87501DCONTROL SUB-ASSY, SEAT HEATER

main87501-30020×2i201510-201909

KOREA SPEC&AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

9011908C20

main90119-08C20

9151180816

main91511-80816

9418560600

main94185-60600

21 parts on this diagram · 3 diagrams in section
