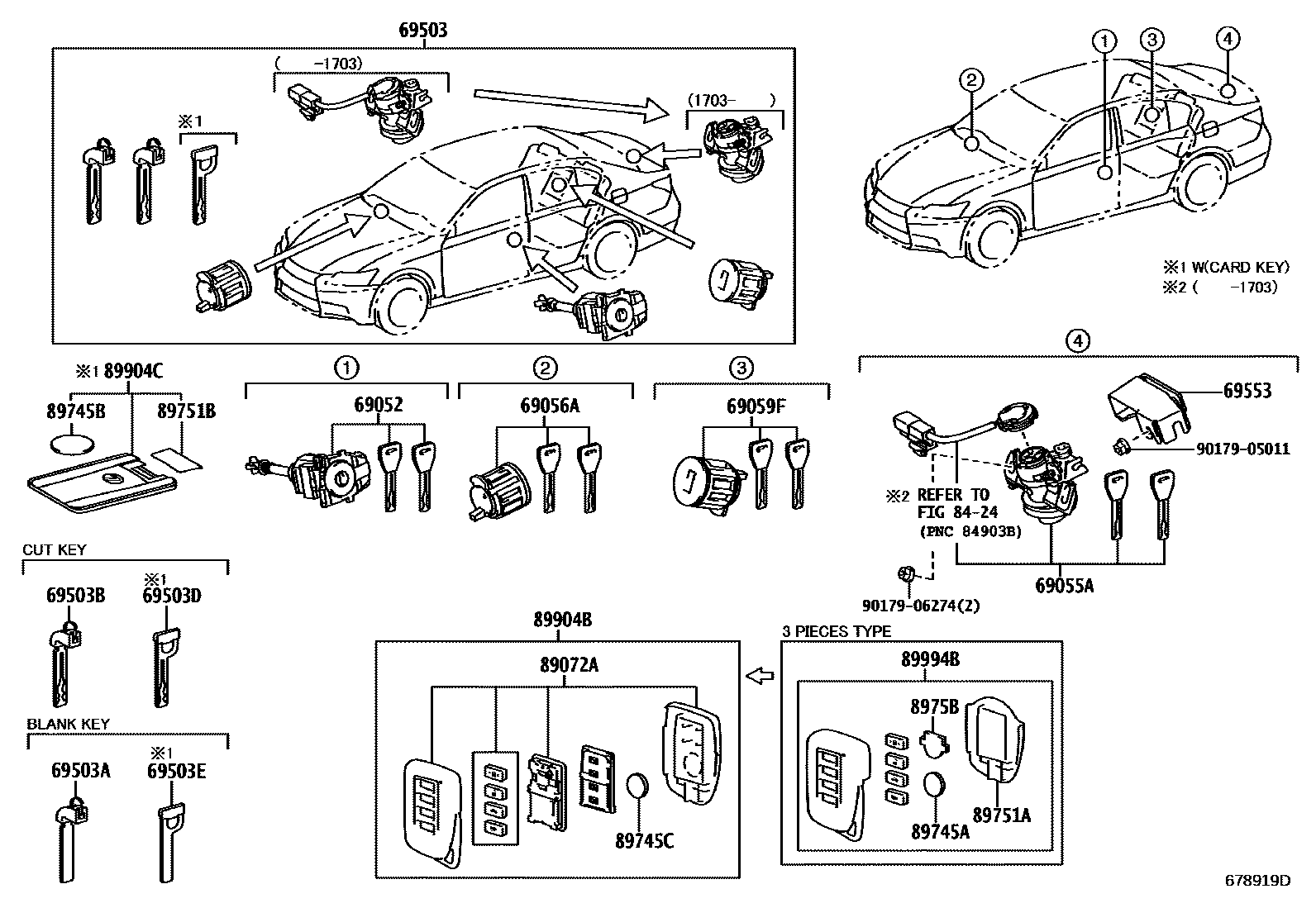

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30330iURL10201510-202007

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30480iURL10201510-201709

main69055-33540iURL10201709-202007

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iURL10201510-202007

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iURL10201510-202007

69503CYLINDER SET, LOCK

main69005-30C70iURL10201510-201709

sub69005-30E70

main69005-30C71iURL10201709-202007

69503AKEY, BLANK

main69515-30380iURL10201510-202007

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370iURL10201510-202007

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iURL10201510-202007

MASTER KEY

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iURL10201510-202007

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-30760iURL10201510-202007

89745ABATTERY, TRANSMITTER

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-45010iURL10201510-202007

CR2032

sub89745-50020

89751ACOVER, TRANSMITTER HOUSING

89751BCOVER, TRANSMITTER HOUSING

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30M50iURL10201510-202007

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

89994BTRANSMITTER, ELECTRICAL KEY

9017905011

main90179-05011

9017906274

main90179-06274

23 parts on this diagram · 1 diagram in section
