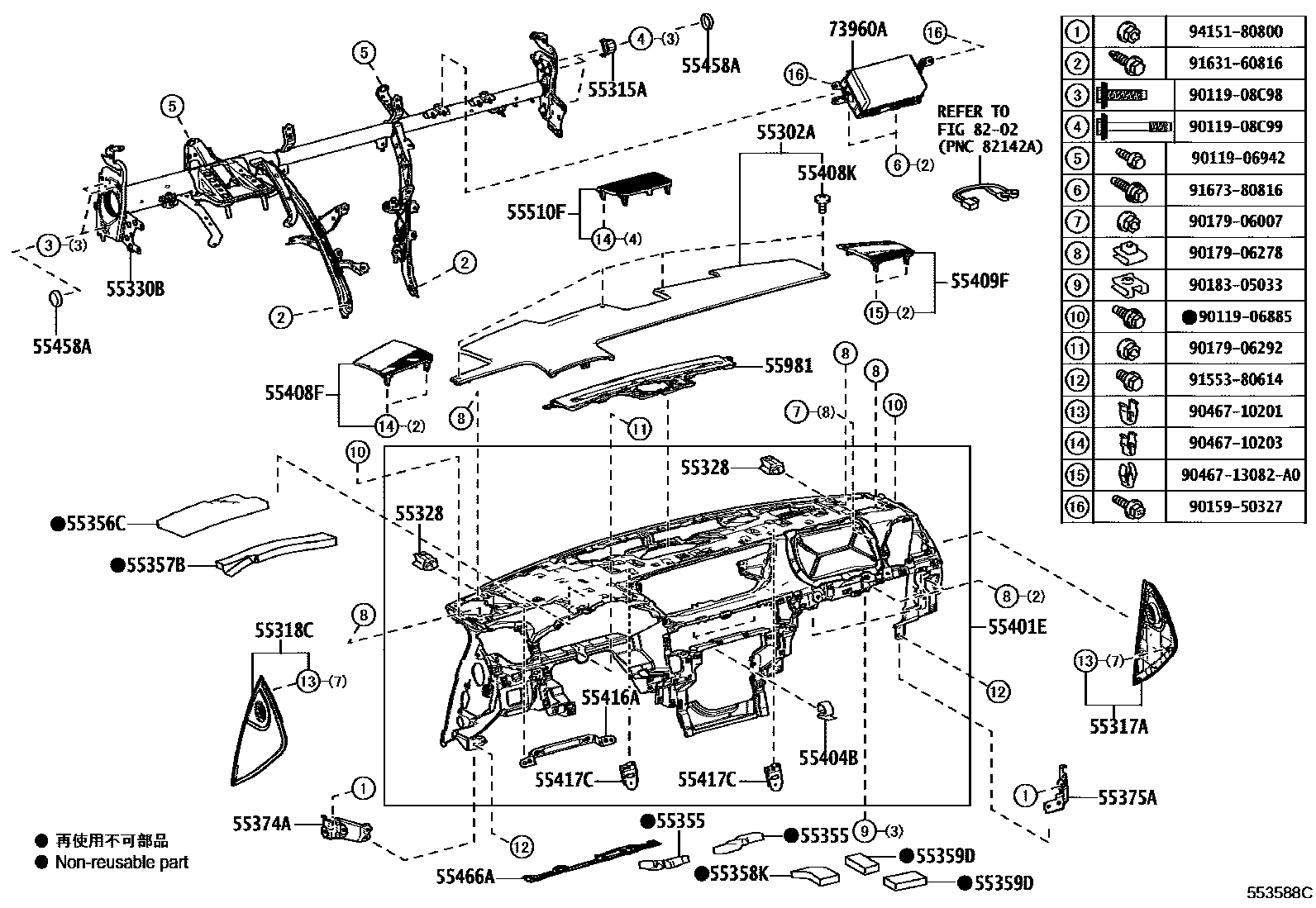

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1W(HEAD UP DISPLAY) 0006 1*DRS, W(HEAD UP DISPLAY) 0007 1*CTR, W(HEAD UP DISPLAY) 0008 1*PAS, W(HEAD UP DISPLAY)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-30170-C3iURL10201512-202007

BLACK,TRIM0#,1#,2#,3#

main55302-30170-C3iURL10201510-201512

BLACK,TRIM1#,2#,3#

main55302-30170-J1iURL10201805-201909

BLUE,TRIM8#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040iURL10201510-202007

55317APANEL, INSTRUMENT SIDE, RH

main55317-30130-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30130-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iURL10201510-202007

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30470iURL10201510-202007

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30130iURL10201510-202007

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-30060iURL10201510-202007

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-30100iURL10201510-202007

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-30160iURL10201510-202007

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-30080iURL10201510-202007

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-30280iURL10201510-202007

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-30180iURL10201510-202007

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30880-C0iURL10201512-202007

BLACK,TRIM0#,1#,2#,3#,8#

main55401-30880-C0iURL10201510-201512

BLACK,TRIM1#,2#,3#

55404BCLIP, SAFETY PAD SET

main90084-46027iURL10201510-202007

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30320-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

55408KSCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END

main90958-01001iURL10201510-202007

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-30330-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

55416ARETAINER, METER HOOD, NO.1

main55416-30200iURL10201510-202007

55417CBRACKET, INSTRUMENT PAD, NO.3

main55417-30090iURL10201510-202007

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110iURL10201510-202007

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-30070iURL10201510-202007

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30300-C0iURL10201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30150-C0iURL10201510-201512

BLACK,TRIM1#,2#,3#

main55981-30150-C0iURL10201512-202007

BLACK,TRIM0#,1#,2#,3#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30100iURL10201510-202007

8202

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9015950327

main90159-50327

9017906007

main90179-06007

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9046710201

main90467-10201

9046710203

main90467-10203

9046713082A0

main90467-13082A0

9155380614

main91553-80614

9163160816

main91631-60816

9167380816

main91673-80816

9415180800

main94151-80800

42 parts on this diagram · 8 diagrams in section
