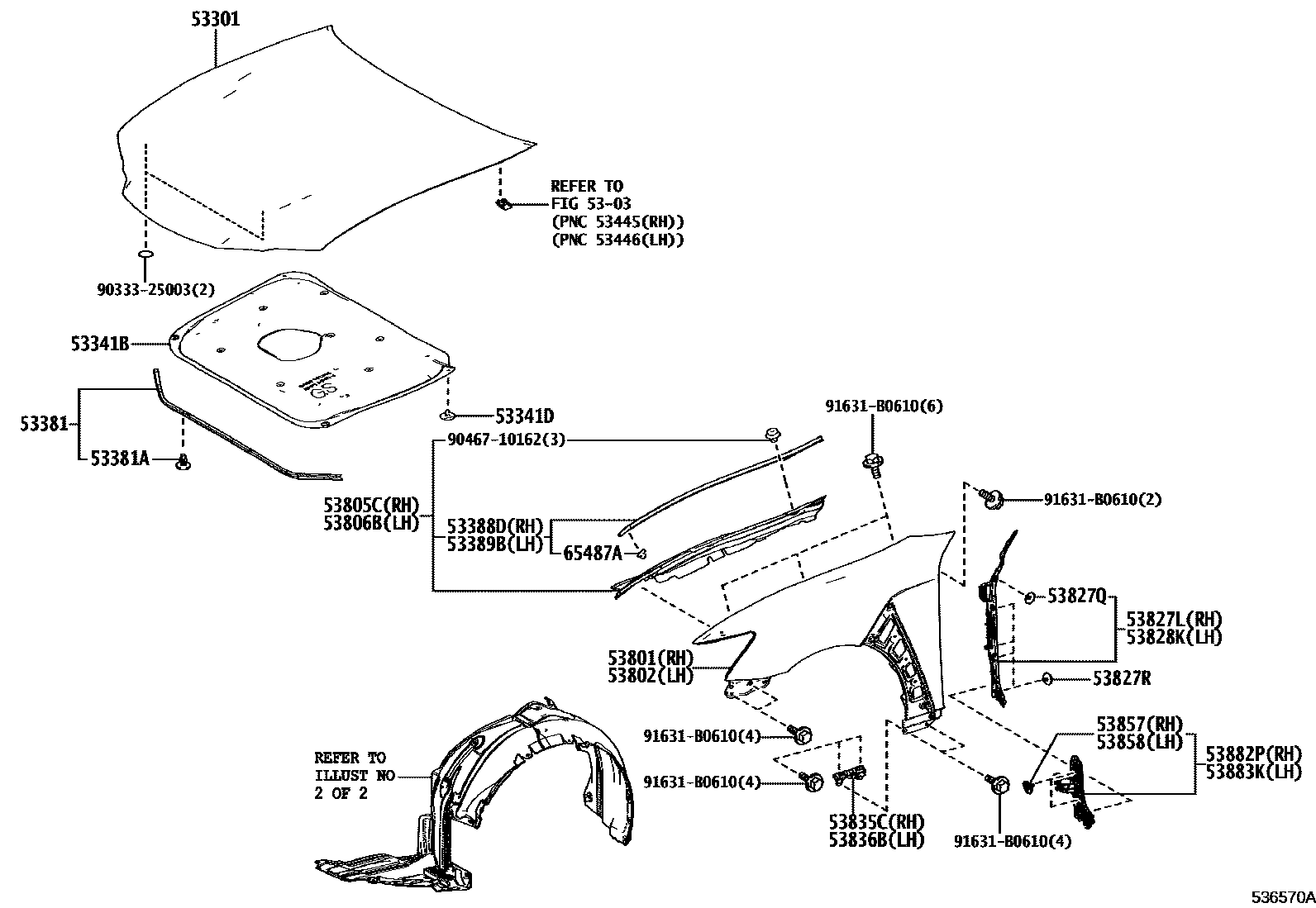

HOOD & FRONT FENDER

0001 1 0002 1

5303

53301HOOD SUB-ASSY

main53301-30491iURL10201510-202007

53341BINSULATOR, HOOD

main53341-30310iURL10201510-202007

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iURL10201510-202007

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30260iURL10201510-202007

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iURL10201510-202007

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30090iURL10201510-202007

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30080iURL10201510-202007

53801FENDER SUB-ASSY, FRONT RH

main53801-30A70iURL10201510-202007

53802FENDER SUB-ASSY, FRONT LH

main53802-30A60iURL10201510-202007

53805CSEAL SUB-ASSY, FRONT PILLAR TO FRONT SIDE, RH

main53805-30190iURL10201510-202007

53806BSEAL SUB-ASSY, FRONT PILLAR TO FRONT SIDE, LH

main53806-30190iURL10201510-202007

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30040iURL10201510-202007

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iURL10201510-201710

BLACK

main90467-07223iURL10201711-202007

53827RCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2

main90467-06205-C0iURL10201510-202007

BLACK

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30050iURL10201510-202007

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-30120iURL10201510-202007

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-30070iURL10201510-202007

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iURL10201510-202007

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iURL10201510-202007

53882PSEAL, FRONT FENDER, RH

main53882-30070iURL10201510-202007

53883KSEAL, FRONT FENDER, LH

main53883-30040iURL10201510-202007

65487ACLIP, CORNER PROTECTOR

main65487-60010iURL10201510-202007

9033325003

main90333-25003

9046710162

main90467-10162

91631B0610

main91631-B0610

26 parts on this diagram · 2 diagrams in section
