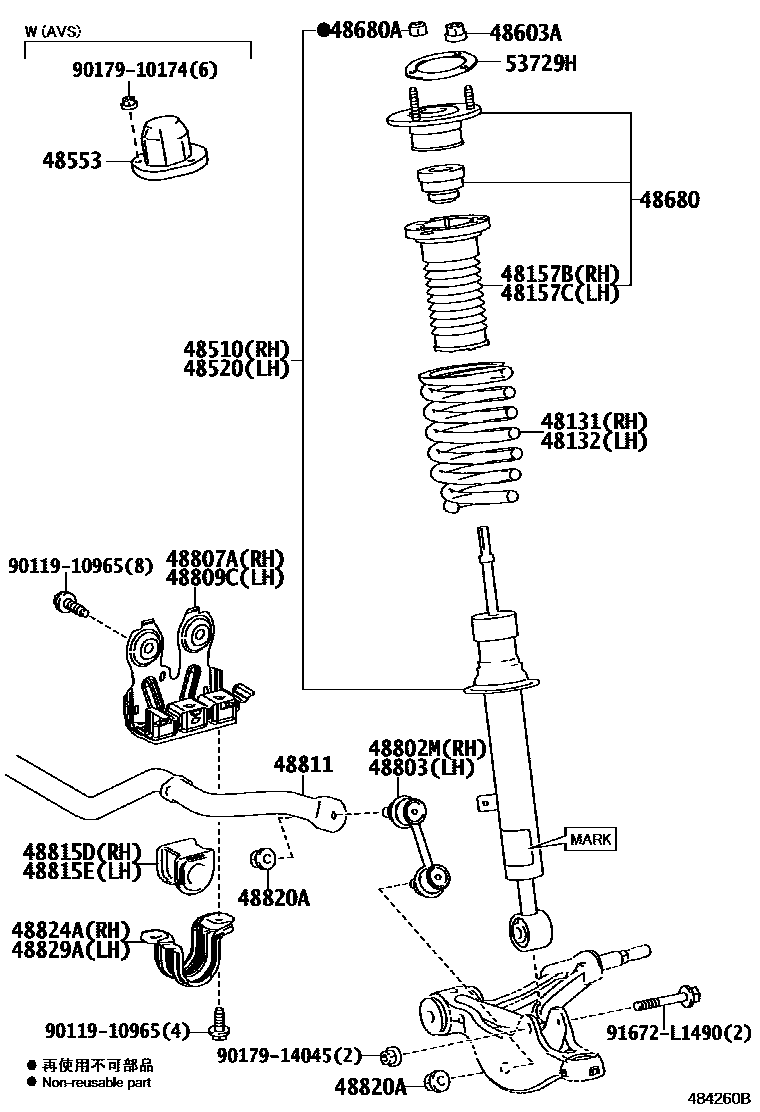

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-30E80iURL10201510-202007

48132SPRING, FRONT COIL, LH

main48131-30E80iURL10201510-202007

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30250iURL10201510-202007

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30250iURL10201510-202007

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80798iURL10201510-201609

MARK 48510-30C80

main48510-80845iURL10201609-202007

MARK 48510-24440

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80474iURL10201510-201609

MARK 48520-30690

main48520-80517iURL10201609-202007

MARK 48520-24170

48553CAP, SHOCK ABSORBER, UPPER

main48553-30110iURL10201609-202007

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iURL10201510-202007

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-24080iURL10201510-201609

main48680-24140iURL10201609-202007

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002iURL10201510-202007

48802MLINK SUB-ASSY, FRONT STABILIZER, RH

main48802-48010iURL10201510-202007

48803LINK SUB-ASSY, FRONT STABILIZER, LH

main48803-48010iURL10201510-202007

48807ABRACKET, FRONT STABILIZER, RH

main48809-30130iURL10201510-202007

48809CBRACKET, FRONT STABILIZER, LH

main48809-30130iURL10201510-202007

48811BAR, STABILIZER, FRONT

main48811-30830iURL10201510-202007

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-30710iURL10201510-202007

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-30710iURL10201510-202007

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iURL10201510-202007

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-24040iURL10201510-202007

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-24040iURL10201510-202007

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020iURL10201510-202007

9011910965

main90119-10965

9017910174

main90179-10174

9017914045

main90179-14045

91672L1490

main91672-L1490

25 parts on this diagram · 1 diagram in section
