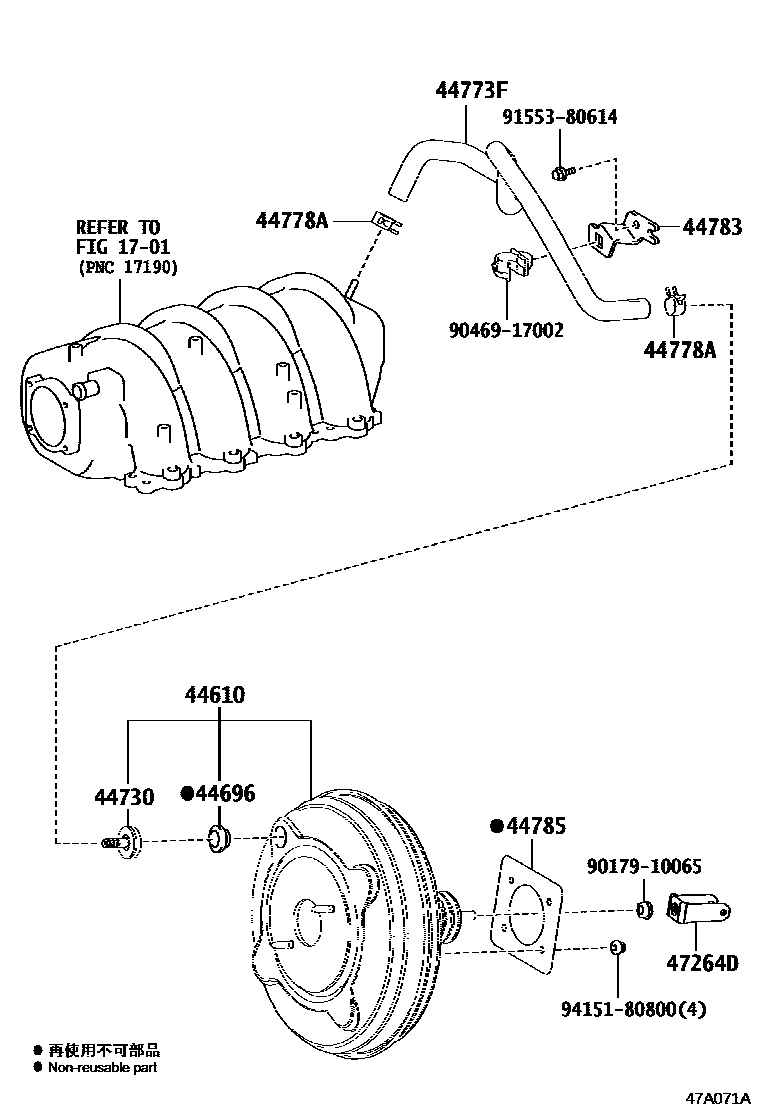

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-24150iURL10201510-202007

44696GROMMET, CHECK VALVE

main90480-24015iURL10201510-202007

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iURL10201510-202007

44773FHOSE, UNION TO CHECK VALVE

main44773-24070iURL10201510-202007

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iURL10201510-202007

44783CLAMP, VACUUM HOSE

main44783-30020iURL10201510-202007

44785GASKET, BRAKE BOOSTER

main44785-47010iURL10201510-202007

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iURL10201510-202007

9017910065

main90179-10065

9046917002

main90469-17002

9155380614

main91553-80614

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
