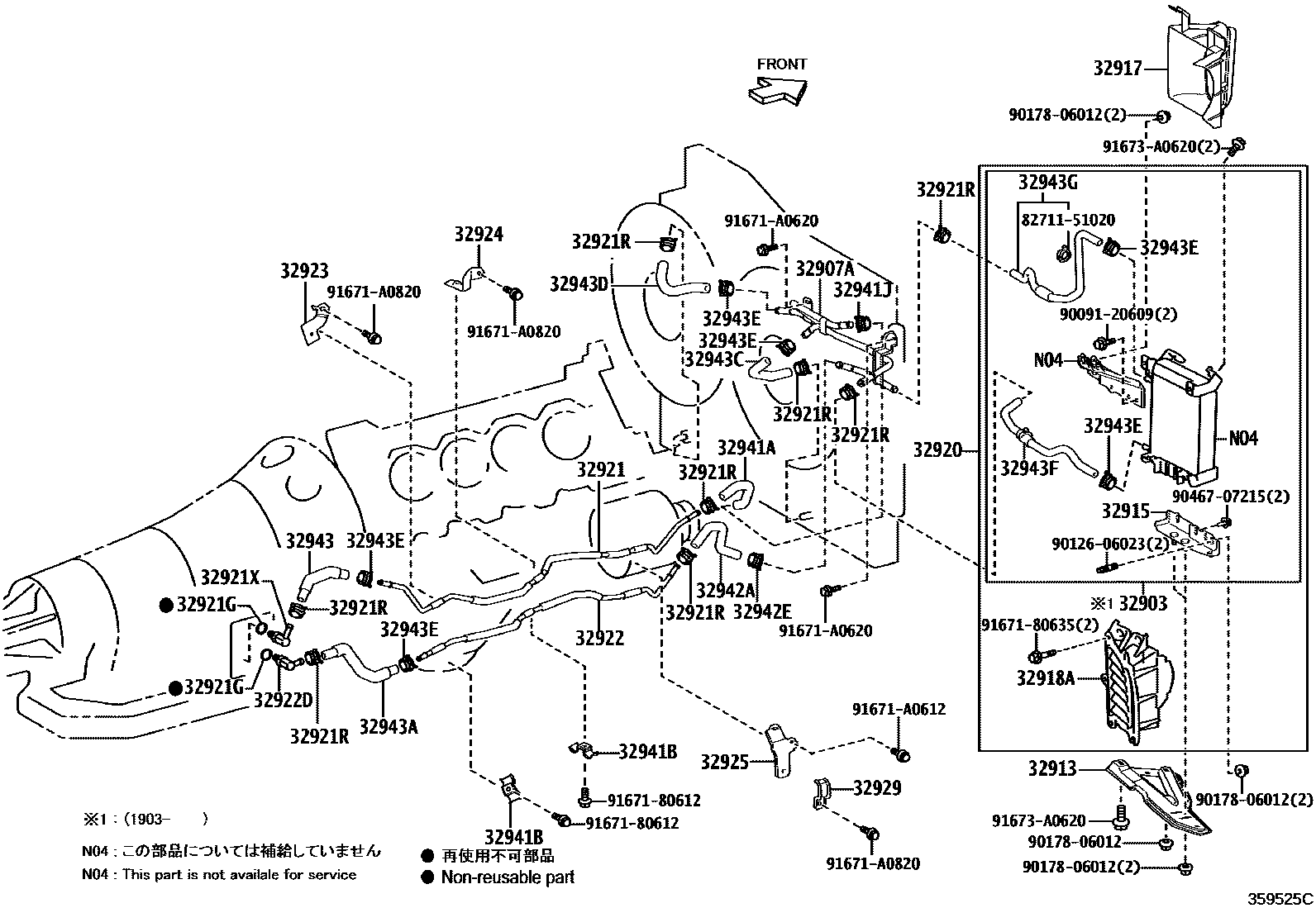

OIL COOLER & TUBE (ATM)
32903BRACKET SUB-ASSY, OIL COOLER
32907ATUBE, OIL COOLER
32913BRACKET, OIL COOLER
32915BRACKET, TRANSMISSION OIL COOLER, LWR
32917DUCT, TRANSMISSION OIL COOLER AIR
32918ADUCT, TRANSMISSION OIL COOLER AIR OUTLET
32920COOLER ASSY, OIL W/HOSE
32921TUBE, OIL COOLER INLET, NO.1
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921RCLIP, NO.2(FOR OIL COOLER HOSE)
32921XUNION OR ELBOW, OIL COOLER INLET
32922TUBE, OIL COOLER OUTLET, NO.1
32922DUNION OR ELBOW, OIL COOLER OUTLET
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32929CLAMP, FLEXIBLE HOSE, NO.2
32941AHOSE, OIL COOLER INLET, NO.2
32941BCLAMP(FOR OIL COOLER TUBE)
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942AHOSE, OIL COOLER OUTLET, NO.2
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943CHOSE, TRANSMISSION OIL COOLER, NO.3
32943DHOSE, TRANSMISSION OIL COOLER, NO.4
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
32943FHOSE, TRANSMISSION OIL COOLER, NO.5
32943GHOSE, TRANSMISSION OIL COOLER, NO.6
8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9009120609
main90091-20609
9012606023
9017806012
9046707215
9167180612
9167180635
91671A0612
91671A0620
91671A0820
91673A0620
40 parts on this diagram · 1 diagram in section
