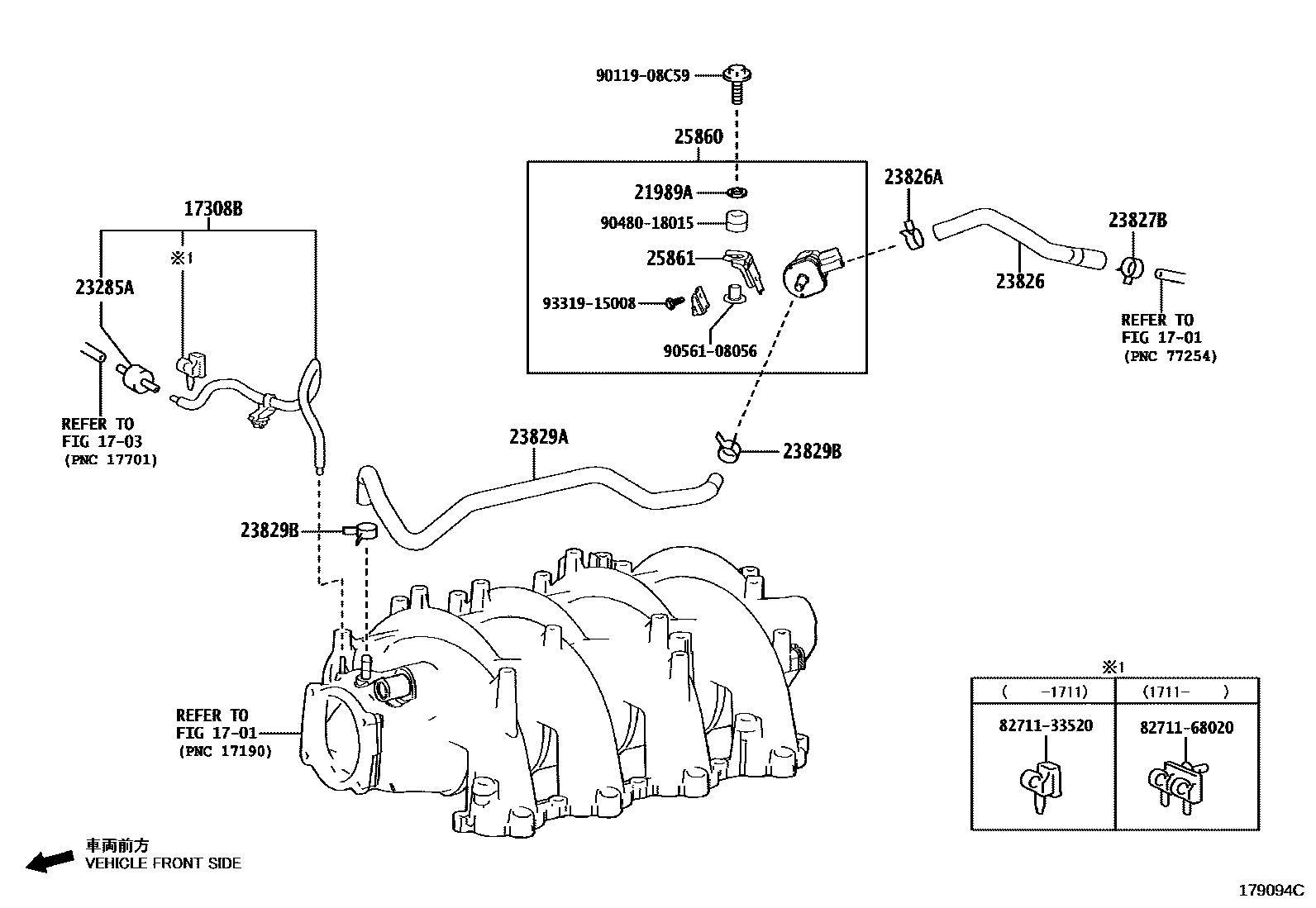

VACUUM PIPING

1701

1703

17308BHOSE SUB-ASSY, VACUUM

main17308-38010i2URGSE..URL10201510-201711

main17308-38011i2URGSE..URL10201711-202007

21989AINSULATOR, PLATE

main21989-38010i2URGSE..URL10201510-202007

23285AVALVE, CHECK, NO.1

main90917-10065i2URGSE..URL10201510-202007

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-38030i2URGSE..URL10201510-202007

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2URGSE..URL10201510-202007

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URGSE..URL10201510-202007

23829AHOSE, FUEL VAPOR FEED

main23829-38070i2URGSE..URL10201510-202007

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i2URGSE..URL10201510-202007

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URGSE..URL10201510-202007

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URGSE..URL10201510-202007

8271133520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33520

8271168020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-68020

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

18 parts on this diagram · 1 diagram in section
