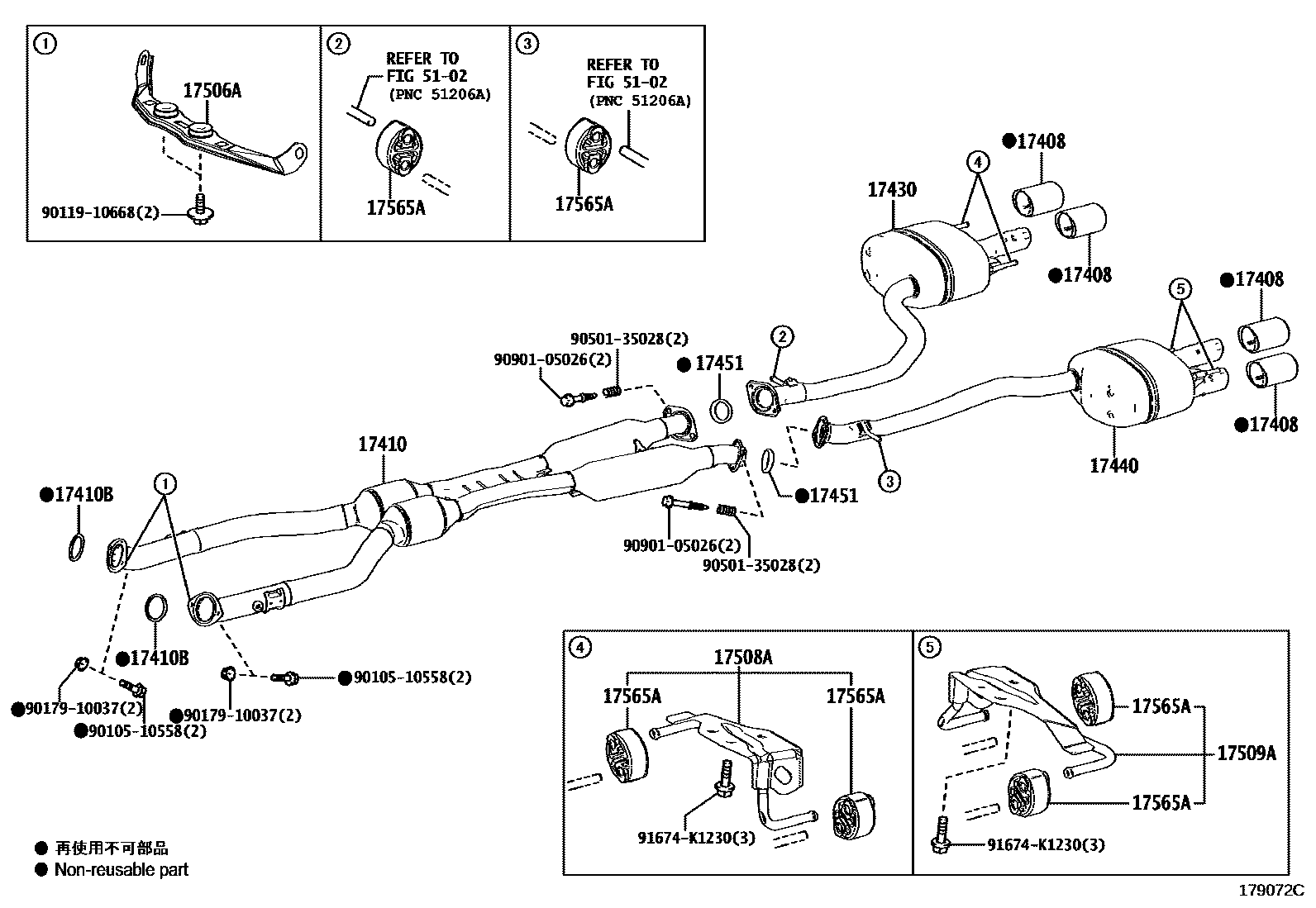

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17049-38010×4i2URGSE..URL10201510-202007

17410PIPE ASSY, EXHAUST, FRONT

main17410-38560i2URGSE..URL10201510-201604

*114=TOYOTA/PA6/Y

main17410-38561i2URGSE..URL10201605-202007

*114=TOYOTA/PA6/Y

sub17410-38562

17410BGASKET, EXHAUST PIPE

main90917-06070×2i2URGSE..URL10201510-202007

17430PIPE ASSY, EXHAUST, TAIL

main17430-38700i2URGSE..URL10201510-202007

17440PIPE, EXHAUST TAIL, LH

main17440-38100i2URGSE..URL10201510-202007

17451GASKET, EXHAUST PIPE

main17451-28022×2i2URGSE..URL10201510-202007

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38140i2URGSE..URL10201510-202007

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-38160i2URGSE..URL10201510-202007

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-38060i2URGSE..URL10201510-202007

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×6i2URGSE..URL10201510-202007

5102

9010510558

main90105-10558

9011910668

main90119-10668

9017910037

main90179-10037

9050135028

main90501-35028

9090105026

main90901-05026

91674K1230

main91674-K1230

17 parts on this diagram · 1 diagram in section
