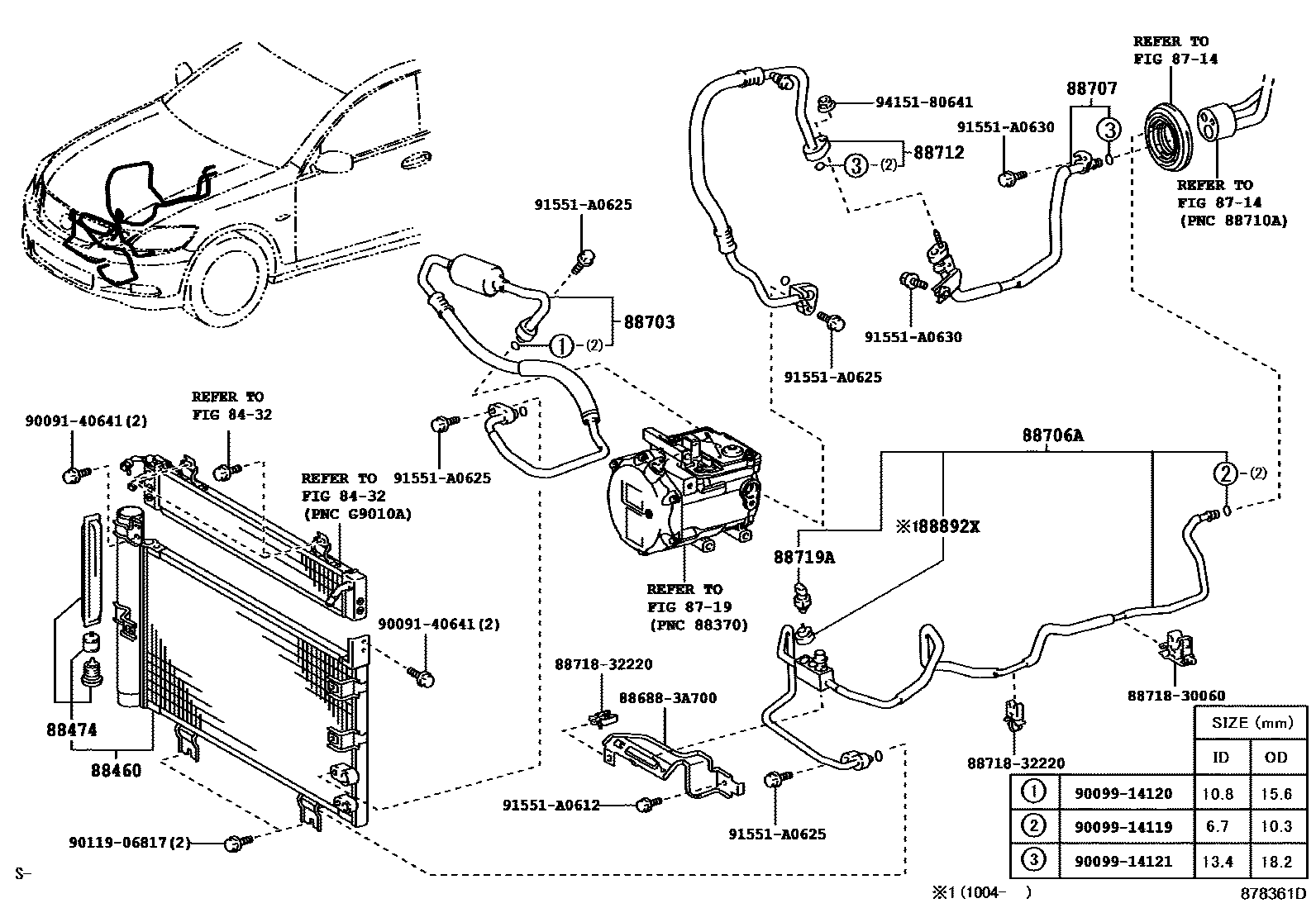

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88460CONDENSER ASSY, COOLER

main88460-30A70iGWS191200602-200705

sub88460-30A71

main88460-30A71iGWS191200706-200709

88474DRYER, COOLER

main88474-47020iGWS191200602-200709

88703HOSE SUB-ASSY, DISCHARGE

main88711-3A630iGWS191200602-201006

main88711-3A631iGWS191201007-201102

sub88711-3A630

88706ATUBE SUB-ASSY, LIQUID, A

main88706-3A470iGWS191200602-200709

88707PIPE SUB-ASSY, SUCTION

main88707-30820iGWS191200602-200709

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30220iGWS191200602-200809

main88712-30300iGWS191200809

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGWS191201004

main88719-40020iGWS191200709-201004

88892XCOVER, COOLER, NO.2

main88892-50120iGWS191201004

886883A700BRACKET, COOLER DIAPHRAGM

main88688-3A700

8871830060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30060

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009140641

main90091-40641

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

23 parts on this diagram · 1 diagram in section
