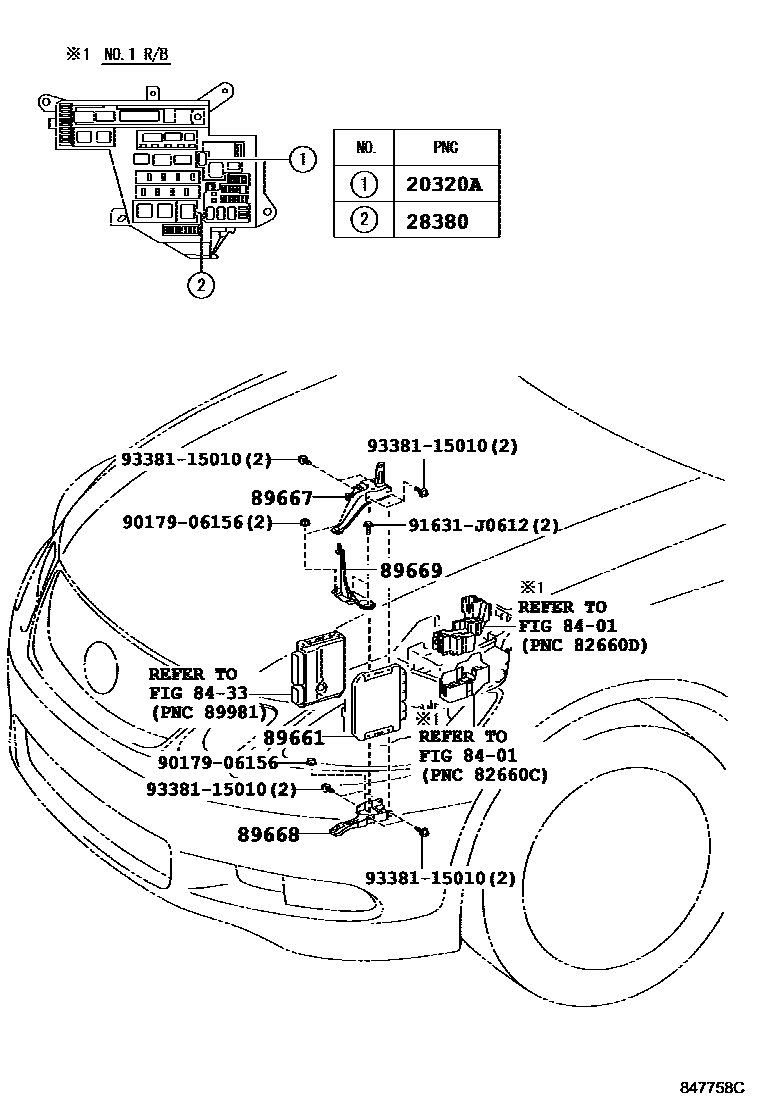

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

20320ARELAY, FUEL RELIEF VALVE

main90987-02027i2GRFSE..GWS191200602-201112

28380RELAY ASSY, FUEL PUMP

main90987-03003i2GRFSE..GWS191200602-201112

8401

8433

89661COMPUTER, ENGINE CONTROL

main89661-30C90iGWS191200602-200605

sub89661-30C91

main89661-30C91iGWS191200606-200609

sub89661-30C92

main89661-30C92iGWS191200610-200709

main89661-30G60iGWS191200709-200805

sub89661-30G61

main89661-30G61iGWS191200806-200809

main89661-30N70iGWS191200809-200909

main89661-30Q20iGWS191200909-201007

main89661-30T00iGWS191201007-201112

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30290iGWS191200602-201112

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30241iGWS191200602-201112

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30161iGWS191200602-201112

9017906156

main90179-06156

91631J0612

main91631-J0612

9338115010

main93381-15010

11 parts on this diagram · 2 diagrams in section
