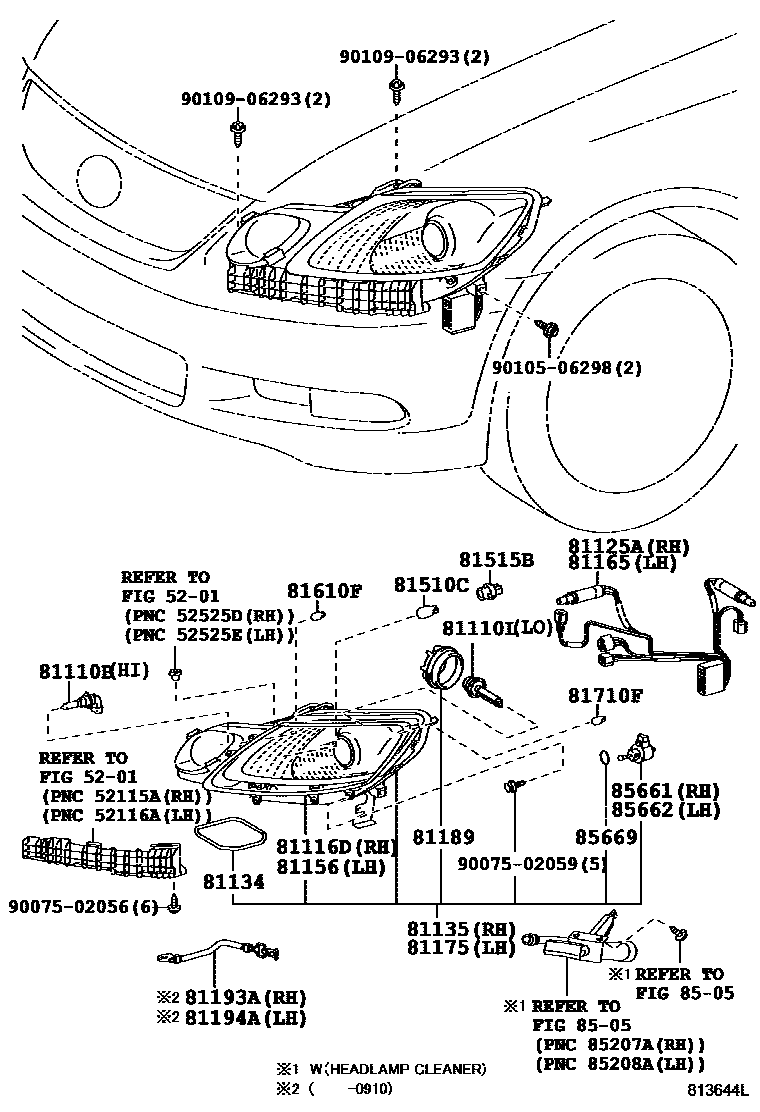

HEADLAMP
5201
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
42V 35W
81116DRIM, HEAD LAMP, RH
WITH(HEAD LAMP CLEANER)
81125ACORD, HEADLAMP, RH
KOREA SPEC&ART WORKS
KOREA SPEC
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
WITH(HEAD LAMP CLEANER)
KOREA SPEC
KOREA SPEC&ART WORKS
81156RIM, HEADLAMP, LH
WITH(HEAD LAMP CLEANER)
81165CORD, HEADLAMP, LH
KOREA SPEC&ART WORKS
KOREA SPEC
81175UNIT ASSY, HEADLAMP, LH
WITH(HEAD LAMP CLEANER)
KOREA SPEC
KOREA SPEC&ART WORKS
81189COVER, HEADLAMP
81193APROTECTOR, HEADLAMP, RH
81194APROTECTOR, HEADLAMP, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81710FBULB, FRONT SIDE MAKER LAMP
8505
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9007502059
main90075-02059
9010506298
main90105-06298
9010906293
main90109-06293
25 parts on this diagram · 2 diagrams in section
