SEAT BELT & CHILD RESTRAINT SEAT

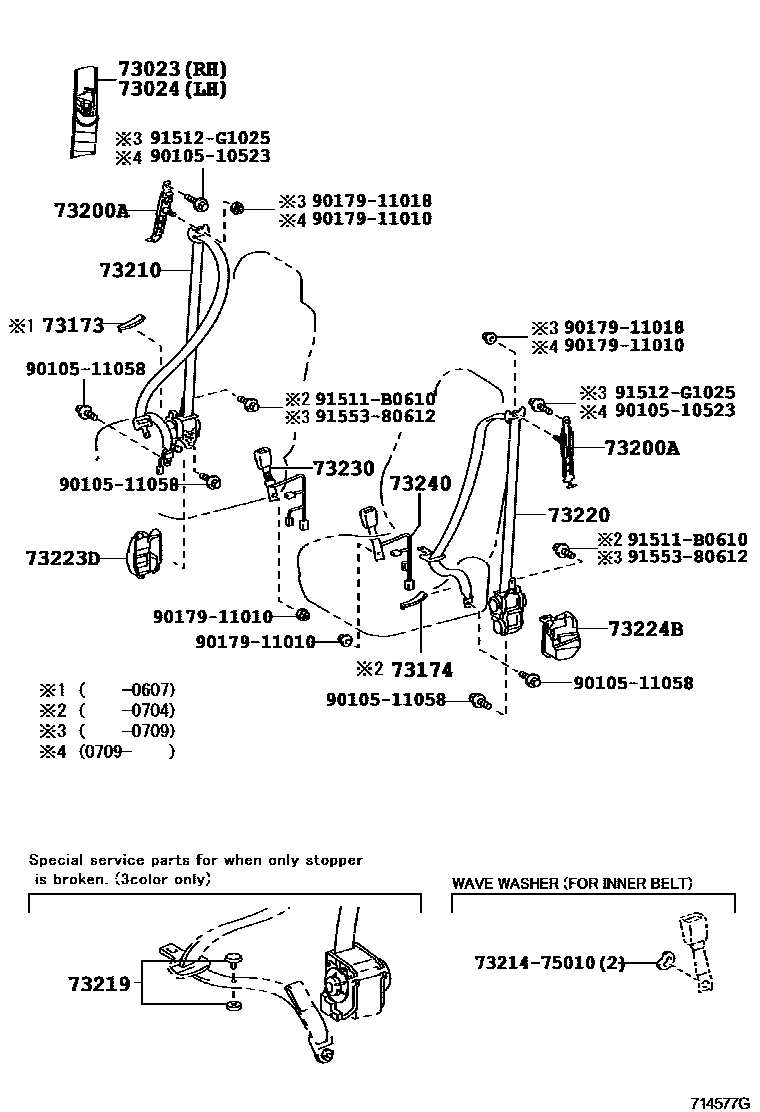

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200602-200809
IVORY,TRIM0#
sub73023-30010¥2,140
main73023-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
sub73023-30010¥2,140
main73023-30010-B5i200602-200709
GRAY,TRIM1#,2#
sub73023-30010¥2,140
main73023-30020-A0i200809-200909
IVORY,TRIM0#
main73023-30020-A1i200909-201112
IVORY,TRIM02
main73023-30020-A2i200909-201112
WATER WHITE,TRIM04
main73023-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A2i200602-200809
IVORY,TRIM0#
sub73024-30010¥2,140
main73024-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
sub73024-30010¥2,140
main73024-30010-B5i200602-200709
GRAY,TRIM1#,2#
sub73024-30010¥2,140
main73024-30020-A0i200809-200909
IVORY,TRIM0#
main73024-30020-A1i200909-201112
IVORY,TRIM02
main73024-30020-A2i200909-201112
WATER WHITE,TRIM04
main73024-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-30060-A0i200602-200607
IVORY,TRIM0#
main73173-30060-B0i200602-200607
GRAY,TRIM1#
main73173-30060-C0i200602-200607
BLACK,TRIM2#
73174COVER, FRONT SEAT BELT HOLE, LH
main73174-30060-A0i200602-200704
IVORY,TRIM0#
main73174-30060-B0i200602-200704
GRAY,TRIM1#
main73174-30060-C0i200602-200704
BLACK,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020i¥4,790200602-200709
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30B00-A0i200602-200607
IVORY,TRIM0#
sub73210-30D50
main73210-30B00-B0i200602-200607
GRAY,TRIM1#
sub73210-30D50
main73210-30B00-C0i200602-200607
BLACK,TRIM2#
sub73210-30D50
main73210-30C10-A0i200607-200803
IVORY,TRIM0#
sub73210-30E20
main73210-30C10-B0i200607-200709
GRAY,TRIM1#
sub73210-30E20
main73210-30C10-B1i200709-200803
GRAY,TRIM1#
sub73210-30E20
main73210-30C10-C0i200607-200709
BLACK,TRIM2#
sub73210-30E20
main73210-30C10-C1i200709-200803
BLACK,TRIM2#
sub73210-30E20
main73210-30D70-A0i200809-200908
IVORY,TRIM0#
sub73210-30D71
main73210-30D70-B0i200809-200908
GRAY,TRIM1#
sub73210-30D71
main73210-30D70-C0i200809-200908
BLACK,TRIM2#
sub73210-30D71
main73210-30D71-A0i200909-201112
IVORY,TRIM00
sub73210-30D71
main73210-30D71-A1i200909-201112
IVORY,TRIM02
sub73210-30D71
main73210-30D71-B3i200909-201112
GRAY/LT.GRAY,TRIM10
sub73210-30D71
main73210-30D71-C2i200909-201112
BLACK,TRIM2#
sub73210-30D71
main73210-30E20-A0i200804-200808
IVORY,TRIM0#
sub73210-30D70
main73210-30E20-B0i200804-200808
GRAY,TRIM1#
sub73210-30D70
main73210-30E20-C0i200804-200808
BLACK,TRIM2#
sub73210-30D70
73219STOPPER, TONGUE PLATE
main73219-02010i¥80200709
BLACK
main73219-02020i¥80200709
GRAY
main73219-02030i¥80200709
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30B00-A0i200602-200808
IVORY,TRIM0#
sub73220-30D10¥39,500
main73220-30B00-B0i200602-200709
GRAY,TRIM1#
sub73220-30D10¥39,500
main73220-30B00-B1i200709-200808
GRAY,TRIM1#
sub73220-30D10¥39,500
main73220-30B00-C0i200602-200709
BLACK,TRIM2#
sub73220-30D10¥39,500
main73220-30B00-C1i200709-200808
BLACK,TRIM2#
sub73220-30D10¥39,500
main73220-30D10-A0i200809-200909
IVORY,TRIM0#
sub73220-30D10¥39,500
main73220-30D10-A1i200909-201112
IVORY,TRIM0#
sub73220-30D10¥39,500
main73220-30D10-B0i200809-200909
GRAY,TRIM1#
sub73220-30D10¥39,500
main73220-30D10-B3i200909-201112
GRAY/LT.GRAY,TRIM1#
sub73220-30D10¥39,500
main73220-30D10-C0i200809-200909
BLACK,TRIM2#
sub73220-30D10¥39,500
main73220-30D10-C2i200909-201112
BLACK,TRIM2#
sub73220-30D10¥39,500
73223COVER, SEAT BELT RETRACTOR
main73223-30070i¥1,070200602-200709
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-30120i¥1,780200602-200709
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-30090i¥1,780200602-200709
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30A20-A0i200602-200607
IVORY,TRIM0#
sub73230-30A20¥8,100
main73230-30A20-B0i200602-200607
GRAY,TRIM1#
sub73230-30A20¥8,100
main73230-30A20-C0i200602-200607
BLACK,TRIM2#
sub73230-30A20¥8,100
main73230-30A30-A0i200607-200909
IVORY,TRIM0#
sub73230-30A30
main73230-30A30-A1i200909-201112
IVORY,TRIM0#
sub73230-30A30
main73230-30A30-B0i200607-200709
GRAY,TRIM1#
sub73230-30A30
main73230-30A30-B1i200709-201112
LT.GRAY,TRIM1#
sub73230-30A30
main73230-30A30-C0i200607-201112
BLACK,TRIM2#
sub73230-30A30
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-30A10-A0i200602-200909
IVORY,TRIM0#
sub73230-30A10¥8,100
main73230-30A10-A1i200909-201112
IVORY,TRIM0#
sub73230-30A10¥8,100
main73230-30A10-B0i200602-200709
GRAY,TRIM1#
sub73230-30A10¥8,100
main73230-30A10-B1i200709-201112
LT.GRAY,TRIM1#
sub73230-30A10¥8,100
main73230-30A10-C0i200602-201112
BLACK,TRIM2#
sub73230-30A10¥8,100
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
9010510523
main90105-10523¥100
9010511058
main90105-11058¥100
9017911010
main90179-11010¥110
9017911018
main90179-11018¥170
91511B0610
main91511-B0610¥110
91512G1025
main91512-G1025¥100
9155380612
main91553-80612¥60

21 parts on this diagram · 2 diagrams in section
