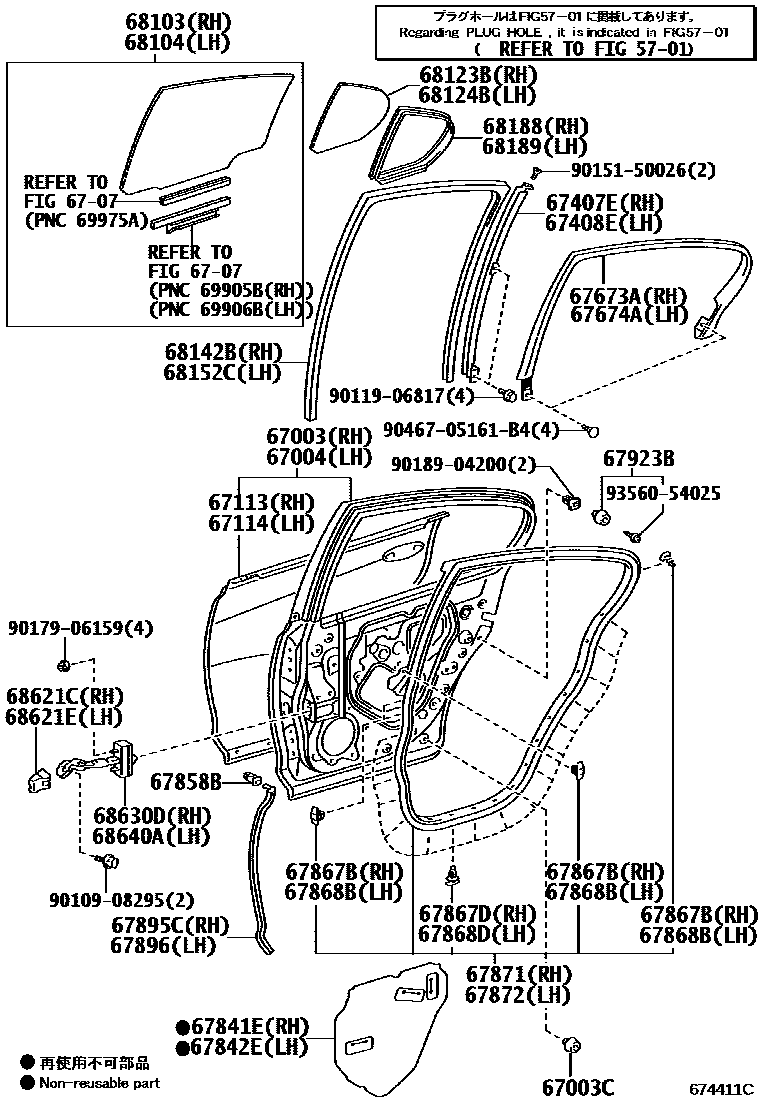

REAR DOOR PANEL & GLASS
5701
67003CCUSHION, REAR DOOR PANEL
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
WHITE
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
WHITE
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=4.0,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=4.0,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=4.0,GREEN
68142BRUN, REAR DOOR WINDOW, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68621ECOVER, REAR DOOR CHECK, LH
9010908295
main90109-08295
9011906817
main90119-06817
9015150026
main90151-50026
9017906159
main90179-06159
9018904200
main90189-04200
9046705161B4
main90467-05161B4
9356054025
main93560-54025
42 parts on this diagram · 2 diagrams in section
