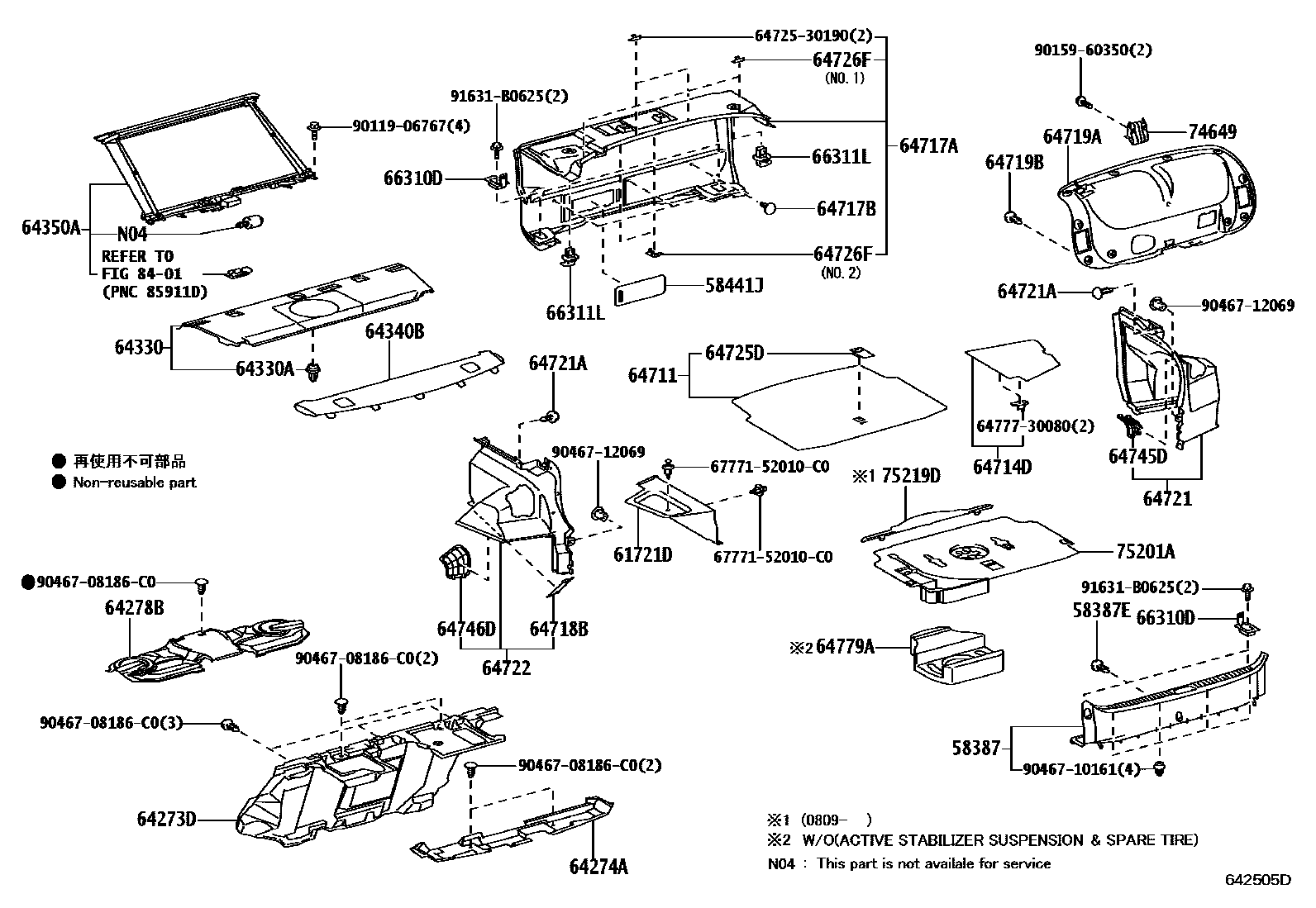

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58441JCOVER, BATTERY SERVICE HOLE
BLACK,TRIM0#,1#,2#
61721DCOVER, BATTERY SERVICE HOLE, LH
BLACK,TRIM0#,1#,2#
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM02
DELOUR NEEPAN,TRIM04
LT.GRAY,TRIM1#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64711MAT, LUGGAGE COMPARTMENT FLOOR
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION),BLACK,TRIM0#,1#,2#
sub64711-30611
BLACK,TRIM0#,1#,2#
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION),BLACK,TRIM0#,1#,2#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION),BLACK,TRIM0#,1#,2#
sub64714-30481
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
NO.1
BLACK,TRIM0#,1#,2#,NO.2
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,2#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#
64779ASTOPPER, SPARE WHEEL COVER
66310DHOOK ASSY, ROPE
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,1#,2#
75201ABOX, TOOL
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
75219DBOARD, TOOL BOX
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
8401
6472530190RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30190
6477730080CLAMP, SPARE WHEEL COVER
main64777-30080
6777152010C0WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-52010C0
9011906767
main90119-06767
9015960350
main90159-60350
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046712069
main90467-12069
91631B0625
main91631-B0625
41 parts on this diagram · 1 diagram in section
