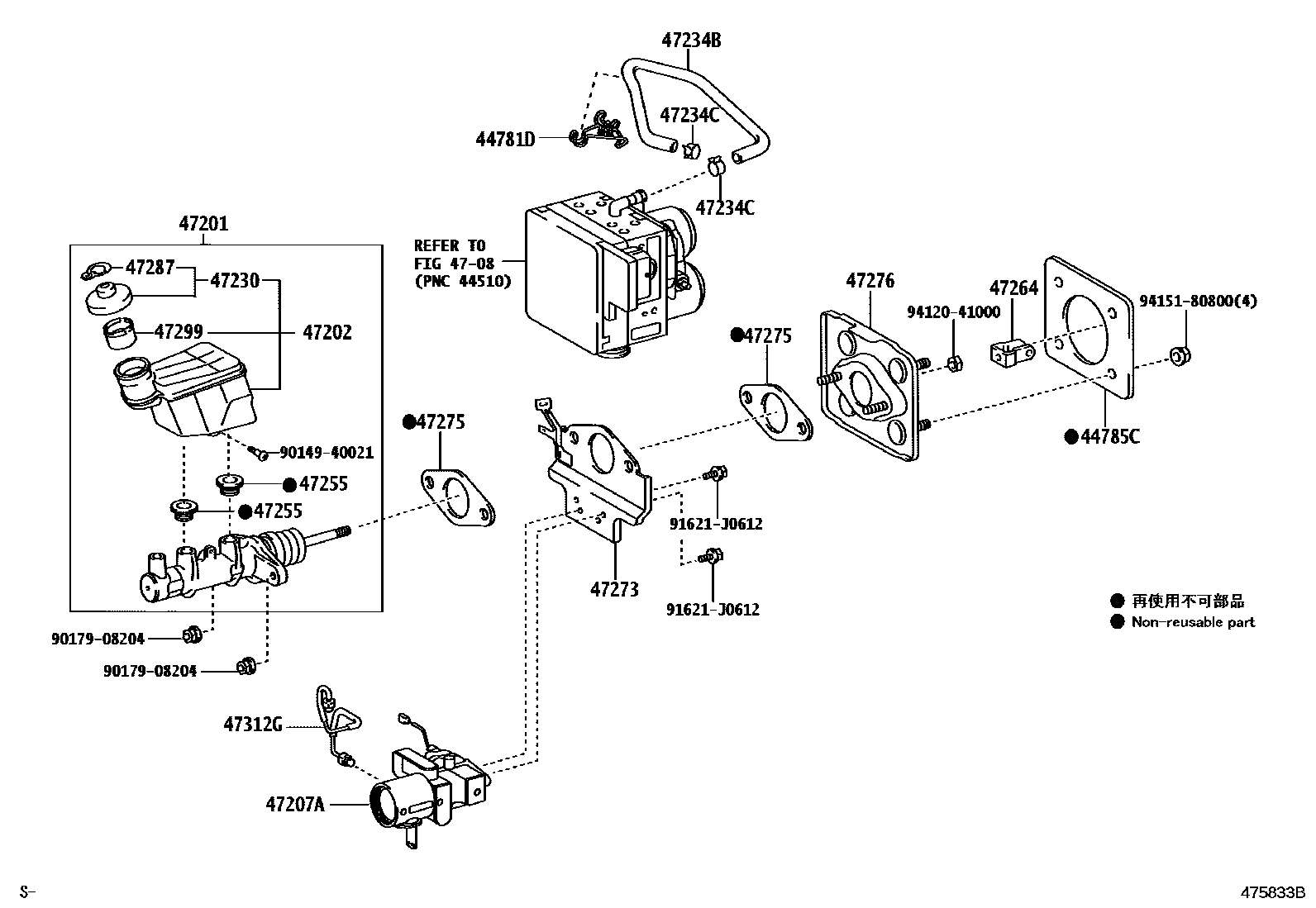

BRAKE MASTER CYLINDER

44781DBRACKET, RESERVOIR HOSE

main44781-30030iGWS191200602-201112

44785CGASKET, BRAKE BOOSTER

main44785-47010iGWS191200602-200709

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30770iGWS191200602-200709

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30200iGWS191200602-200709

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-30040iGWS191200602-201112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGWS191200602-200709

47234BTUBE, RESERVOIR, NO.1

main47234-30020iGWS191200602-201112

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96135-51300iGWS191200602-201112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGWS191200602-200709

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42010iGWS191200602-200709

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-48010iGWS191200602-200709

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iGWS191200602-200709

47276BRACKET, BRAKE MASTER CYLINDER

main47276-30040iGWS191200602-200709

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGWS191200602-200709

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGWS191200602-200709

47312GTUBE, BRAKE STROKE SIMULATOR

main44255-30090iGWS191200602-200709

main44255-30120iGWS191200709-201112

9014940021

main90149-40021

9017908204

main90179-08204

91621J0612

main91621-J0612

9412041000

main94120-41000

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
