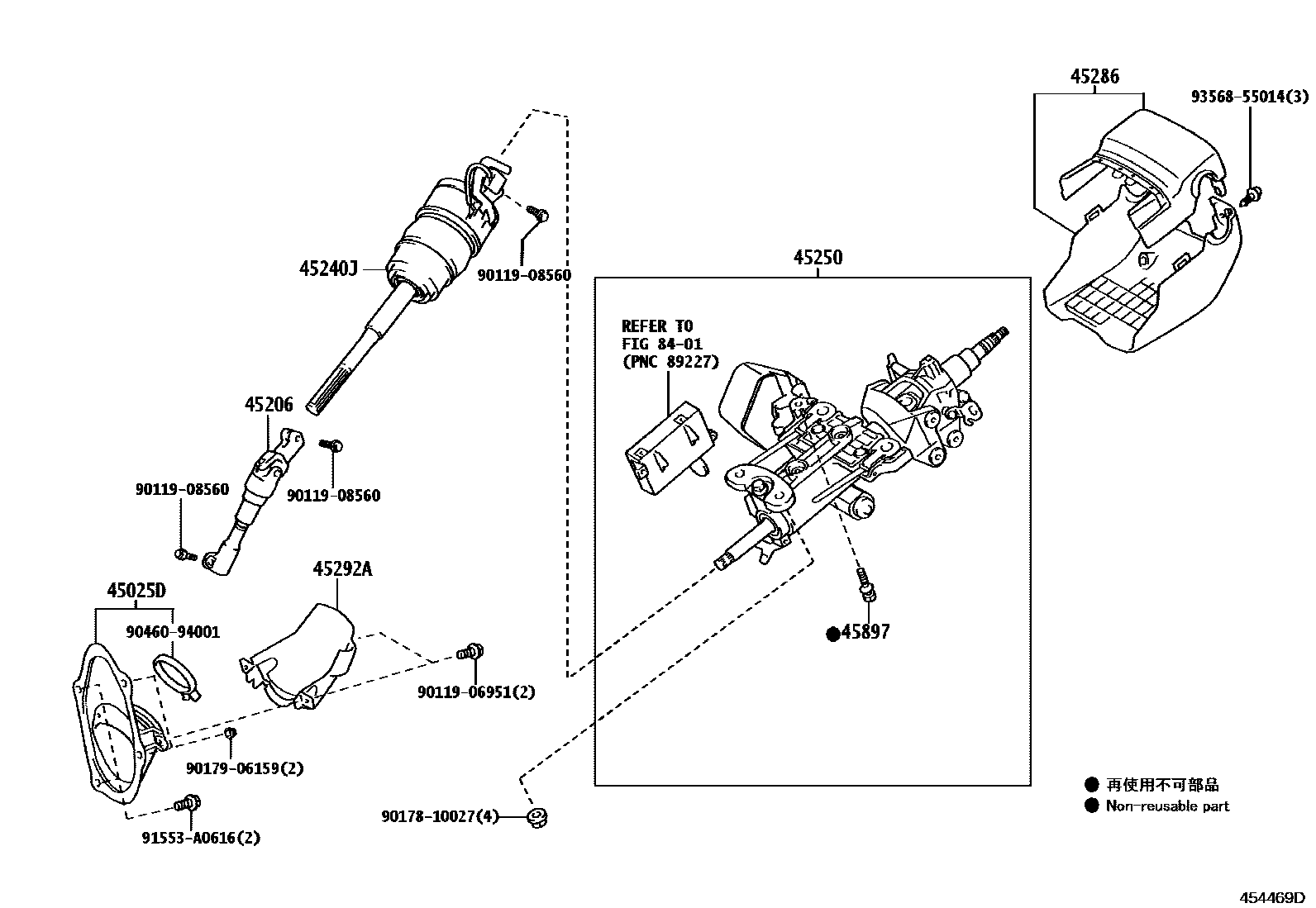

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30380iGWS191200602-201112

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30111iGWS191201103-201112

PAINTED=GREEN

main45206-30130iGWS191200602-200709

sub45206-30111

main45206-30131iGWS191200709-201103

PAINTED=GOLD

sub45206-30111

45240JACTUATOR ASSY, STEERING

main45240-30110iGWS191200602-200701

sub45240-30140

main45240-30111iGWS191200709-200901

sub45240-30112

main45240-30112iGWS191200902-201112

main45240-30140iGWS191200702-200709

sub45240-30141

45250COLUMN ASSY, STEERING

main45250-30A60iGWS191200602-201011

sub45810-30210

sub45020-30A60

sub45892-30020

sub45897-12020

sub89227-30020

sub93219-15010

sub93381-15010

45286COVER, STEERING COLUMN

main45286-3A905-C0iGWS191200602-200709

BLACK,TRIM1#,2#

sub45286-3A905

main45286-3A905-C0iGWS191200709-201112

BLACK,TRIM04,1#,2#

sub45286-3A905

main45286-3A905-E0iGWS191200602-200709

ORCHID BROWN,TRIM0#

sub45286-3A905

main45286-3A905-E0iGWS191200709-201112

ORCHID BROWN,TRIM00,01,02

sub45286-3A905

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-30100iGWS191200602-201112

45897BOLT, STEERING LOCK SET

main45897-12020iGWS191200602-201112

8401

9011906951

main90119-06951

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046094001

main90460-94001

91553A0616

main91553-A0616

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
