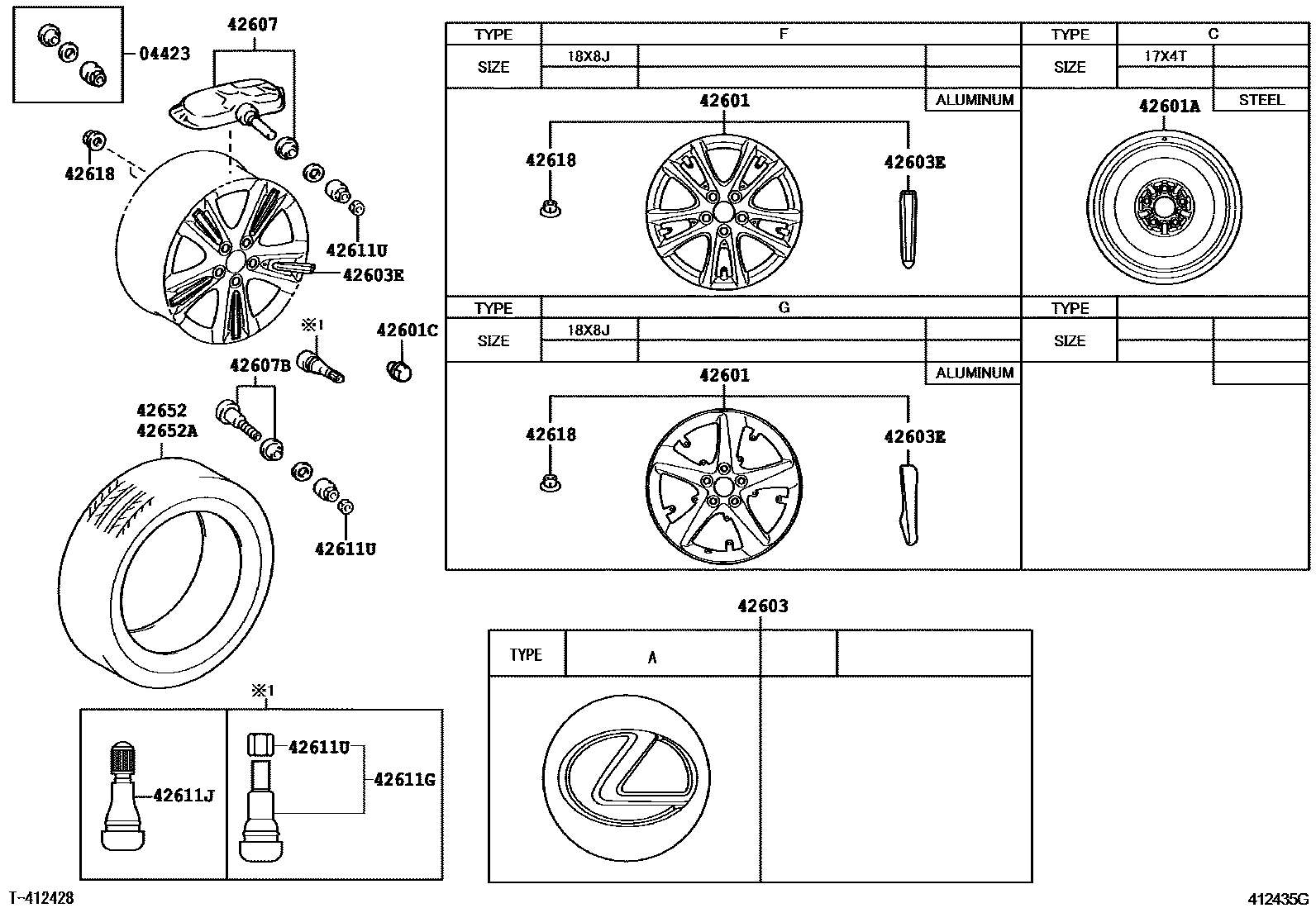

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030i200607-201112

sub04423-33060

main04423-35020i200602-200604

main04423-42010i200604-200607

42601WHEEL, DISC

main42601-30040i200602-200909

18X8J, #,TYPE F:REFER ILLUST.

sub42601-30050

main42601-30050i200709-200909

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J,TYPEF:REFER ILLUST.

main42601-30050i200709-200909

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J&SPARETIRE-WITHOUT,TYPE F:REFER ILLUST.

main42601-30050i200709-200909

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT SUMMER TIRE 8J&SPARE TIRE-WITHOUT,TYPE F:REFER ILLUST.

main42601-30050i200709-200909

18X8J, #,CANADA SPEC,TYPE F:REFER ILLUST.

main42601-30080i200909-201112

18X8J, #,TYPE G:REFER ILLUST.

sub42601-30090

main42601-30090i200909-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J,TYPEG:REFER ILLUST.

sub42601-30091

main42601-30090i200909-201112

18X8J, #,CANADA SPEC,TYPE G:REFER ILLUST.

sub42601-30091

main42601-30090i200909-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT ALL SEASON TIRE 8J&SPARETIRE-WITHOUT,TYPE G:REFER ILLUST.

sub42601-30091

main42601-30090i200909-201112

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-245/40R18 RUN FLAT SUMMER TIRE 8J&SPARE TIRE-WITHOUT,TYPE G:REFER ILLUST.

sub42601-30091

main42601-30110i201007-201109

18X8J, *MGB,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS,TYPE F:REFER ILLUST.

sub42601-30111

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60i200602-200908

17X4T,TYPE C:REFER ILLUST.

main42611-53320i200909-201112

17X4T,TYPE C:REFER ILLUST.

sub42611-53321

42601CNUT, HUB (FOR AXLE)

main90942-01033i200602-201112

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540i200602-200909

*ALU,TYPE A:REFER ILLUST.

main42603-30590i201007-201109

*CHR,KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS,TYPE A:REFERILLUST.

main42603-50300i200909

*ALU,TYPE A:REFER ILLUST.

42603EGARNISH SUB-ASSY, WHEEL HUB

main42603-30620i200602-200709

sub4260B-30010

main4260B-30010i200709-200909

main4260B-30030i200909-201112

main4260B-30050i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30030i200602-200607

sub42607-33021

main42607-33021i200607-201112

sub42607-33022

42607BVALVE SUB-ASSY, TIRE PRESSURE BALANCER

main42607-35020i200709-201001

KOREA SPEC

sub90942-05041

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

main90942-05028i201001-201112

KOREA SPEC

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200602-201112

42611UCAP, TIRE VALVE

main90942-05029i201007-201109

KOREA SPEC&TIRE & DISC WHEEL-245/40R18 SUMMER TIRE 8J,ART WORKS

main90942-05029i200709-201112

KOREA SPEC

main90942-05037i200602-201112

42618RETAINER, WHEEL CAP

main42618-24010i200602-200709

42652TIRE

main42652-24333i200602-200606

245/40ZR18,*B/S,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT&SPARE TIRE-WITHOUT

sub42652-24334

main42652-24333i200607-200707

245/40ZR18,*B/S,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISK WHEEL-245/40R18 8J RUN FLAT&SPARE TIRE-WITHOUT

sub42652-24334

main42652-24341i200602-200606

245/40ZR18,*D/L,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT&SPARE TIRE-WITHOUT

sub42652-24343

main42652-24341i200607-200708

245/40ZR18,*D/L,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISK WHEEL-245/40R18 8J RUN FLAT&SPARE TIRE-WITHOUT

sub42652-24343

main42652-24390i200602-200606

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT M+S&SPARE TIRE-WITHOUT

sub42652-24391

main42652-24390i200602-200606

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT M+S

sub42652-24391

main42652-24390i200607-200608

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S

sub42652-24391

main42652-24390i200607-200608

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S&SPARE TIRE-WITHOUT

sub42652-24391

main42652-24391i200609-200709

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S&SPARE TIRE-WITHOUT

sub42652-24392

main42652-24391i200609-200709

P245/40R18,*D/L,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S

sub42652-24392

main42652-24400i200602-200606

P245/40R18,*B/S,TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT M+S

sub42652-24401

main42652-24400i200602-200606

P245/40R18,*B/S,TIRE & DISK WHEEL-245/40R18 8JJ RUN FLAT M+S&SPARE TIRE-WITHOUT

sub42652-24401

main42652-24400i200607-200709

P245/40R18,*B/S,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S&SPARE TIRE-WITHOUT

sub42652-24401

main42652-24400i200607-200709

P245/40R18,*B/S,TIRE & DISK WHEEL-245/40R18 8J RUN FLAT M+S

sub42652-24401

main42652-30840i200602-200708

245/40R18,*D/L

sub42652-30841

main42652-30841i200709-201012

245/40R18,*D/L,KOREA SPEC

sub42652-30842

main42652-30842i201101-201112

245/40R18,*D/L,KOREA SPEC

main42652-30A70i200602-200704

245/40R18,*Y/H

sub42652-30A71

main42652-30A71i200705-200709

245/40R18,*Y/H

sub42652-30A72

main42652-30A71i200709-201012

245/40R18,*Y/H,KOREA SPEC

sub42652-30A72

main42652-30A72i201101-201112

245/40R18,*Y/H,KOREA SPEC

main42652-30C20i200607-200709

245/40R18,MICHELIN

main42652-30D20i200708-200709

245/40R18,*B/S,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISK WHEEL-245/40R18 8J RUN FLAT&SPARE TIRE-WITHOUT

sub42652-30D21

42652ATIRE (FOR SPARE)

main42652-30C00i200602-200709

T155/70D17,*T/Y

main42652-30C00i200709-201112

T155/70D17,*T/Y,KOREA SPEC

main42652-58050i200709-201112

T155/70D17,*D/L,KOREA SPEC

main42652-58050i200610-200709

T155/70D17,*D/L

14 parts on this diagram · 2 diagrams in section
