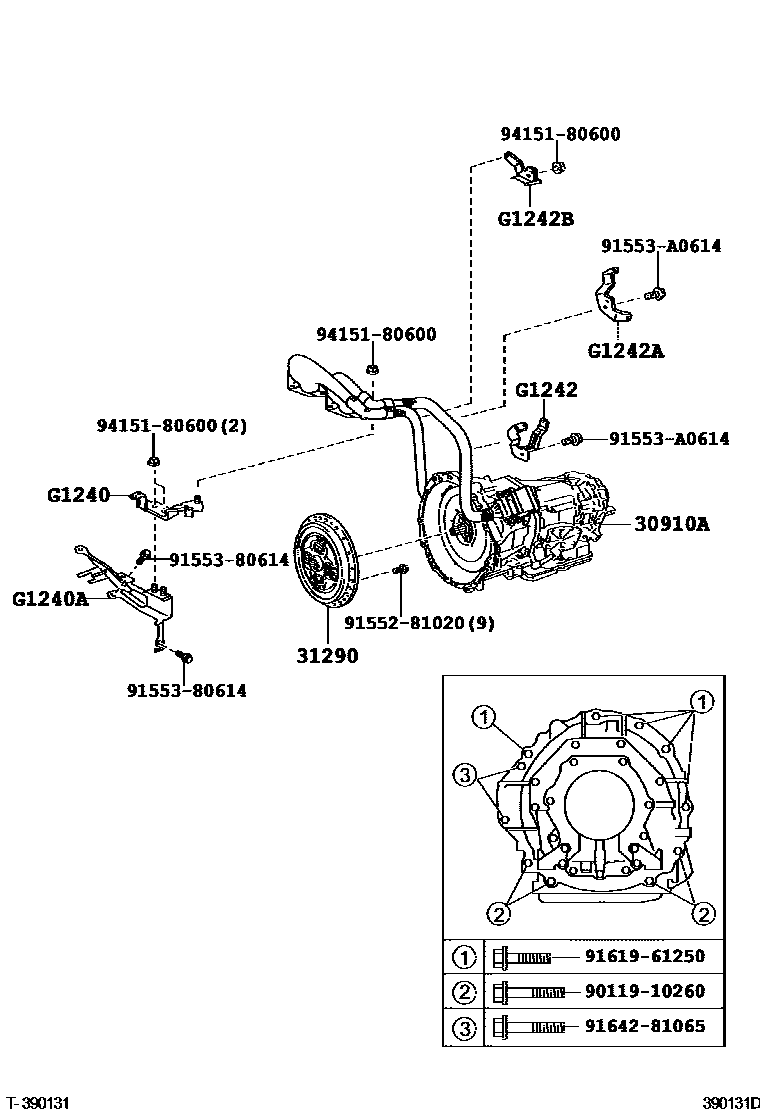

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1TRANSMISSION LH SIDE 0003 1TRANSMISSION LH SIDE 0004 1TRANSMISSION RH SIDE 0005 1TRANSMISSION RH SIDE

30910ATRANSMISSION ASSY, HYBRID VEHICLE

main30910-30020iGWS191200602-200607

sub30910-30021

main30910-30021iGWS191200607-200702

sub30910-30022

main30910-30022iGWS191200702-200709

main30910-30040iGWS191200709-200712

main30910-30041iGWS191200712-201112

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWS191200602-200709

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124030021iGWS191200602-200709

G1240ABRACKET ASSY, INVERTER MOTOR CABLE

mainG124030031iGWS191200602-200709

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230032iGWS191200602-200709

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230040iGWS191200602-200709

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230050iGWS191200602-200709

9011910260

main90119-10260

9155281020

main91552-81020

9155380614

main91553-80614

91553A0614

main91553-A0614

9161961250

main91619-61250

9164281065

main91642-81065

9415180600

main94151-80600

14 parts on this diagram · 5 diagrams in section
