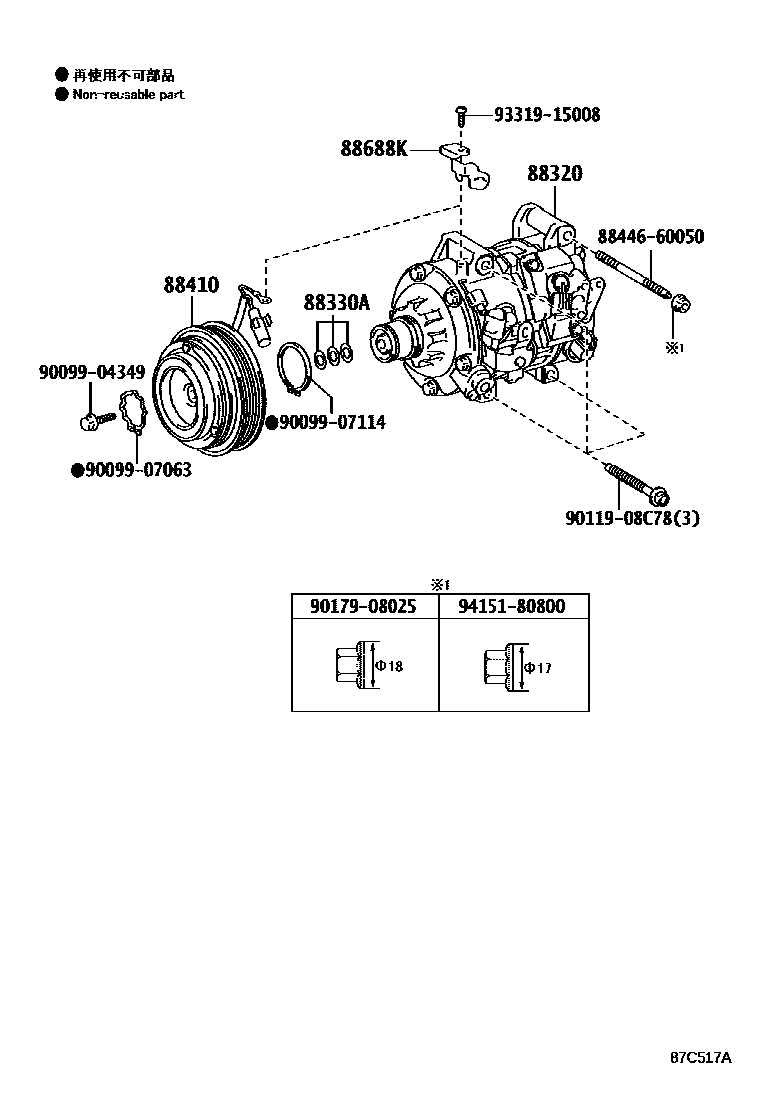

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88320COMPRESSOR ASSY, COOLER

main88320-30730iGRL16201510-202007

main88320-3A380iGRL10,11201112-201209

sub88320-3A460

main88320-3A400iGRL15201112-201209

sub88320-3A480

main88320-3A460iGRL11;GRL10..8FC201210-201510

main88320-3A480iGRL15201210-201510

main88320-48320iARL10,GRL12201510-202007

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGRL11,15;GRL10..8FC201112-202007

88410CLUTCH ASSY, MAGNET

main88410-0N010iARL10,GRL1#201510-202007

main88410-33180iGRL10201112-201403

sub88410-33190

main88410-33190iGRL1#201403-201510

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGRL10201112-202007

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9331915008

main93319-15008

9415180800

main94151-80800

12 parts on this diagram · 4 diagrams in section
