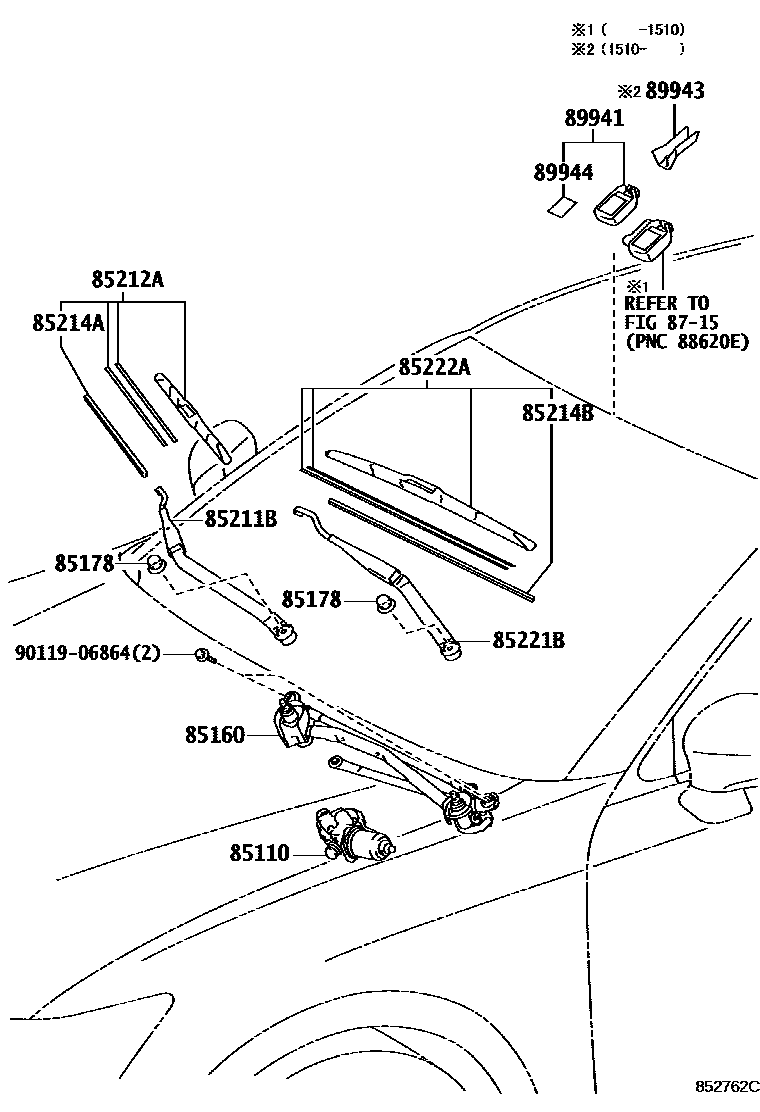

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30670iGRL1#,GWL10201112-201409

sub85110-30720¥25,400

main85110-30720iGRL1#,GWL10¥25,400201409-202007

85160LINK ASSY, WINDSHIELD WIPER

main85150-30740iGRL10201112-202007

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGRL10..8FC;GRL11,15,GWL10¥110201112-202007

85211BARM, FRONT WIPER, RH

main85211-30790iGRL10201112-202007

85212ABLADE, FR WIPER, RH

main85212-30480iGRL1#,GWL10201112-202007

85214ARUBBER, WIPER, RH

main85214-33180iGRL10..8FC;GRL11,15,GWL10¥800201112-202007

85214BRUBBER, WIPER, LH

main85214-52110iARL10,GRL1#,GWL10¥900201211-202007

main85214-68020iGRL1#,GWL10¥900201112-201210

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-30680iGRL10201112-202007

85222ABLADE, FR WIPER, LH

main85222-30650iGRL1#,GWL10201112-202007

8715

89941SENSOR, RAIN

main89941-30030iGRL11,GWL10¥19,900201201-201510

main89941-52010iGWL10¥12,500201510-201809

89943COVER, RAIN SENSOR

main89943-33050iGWL10¥1,400201510-201809

89944TAPE, RAIN SENSOR

main89944-42010iGRL11,GWL10¥1,490201201-201809

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
