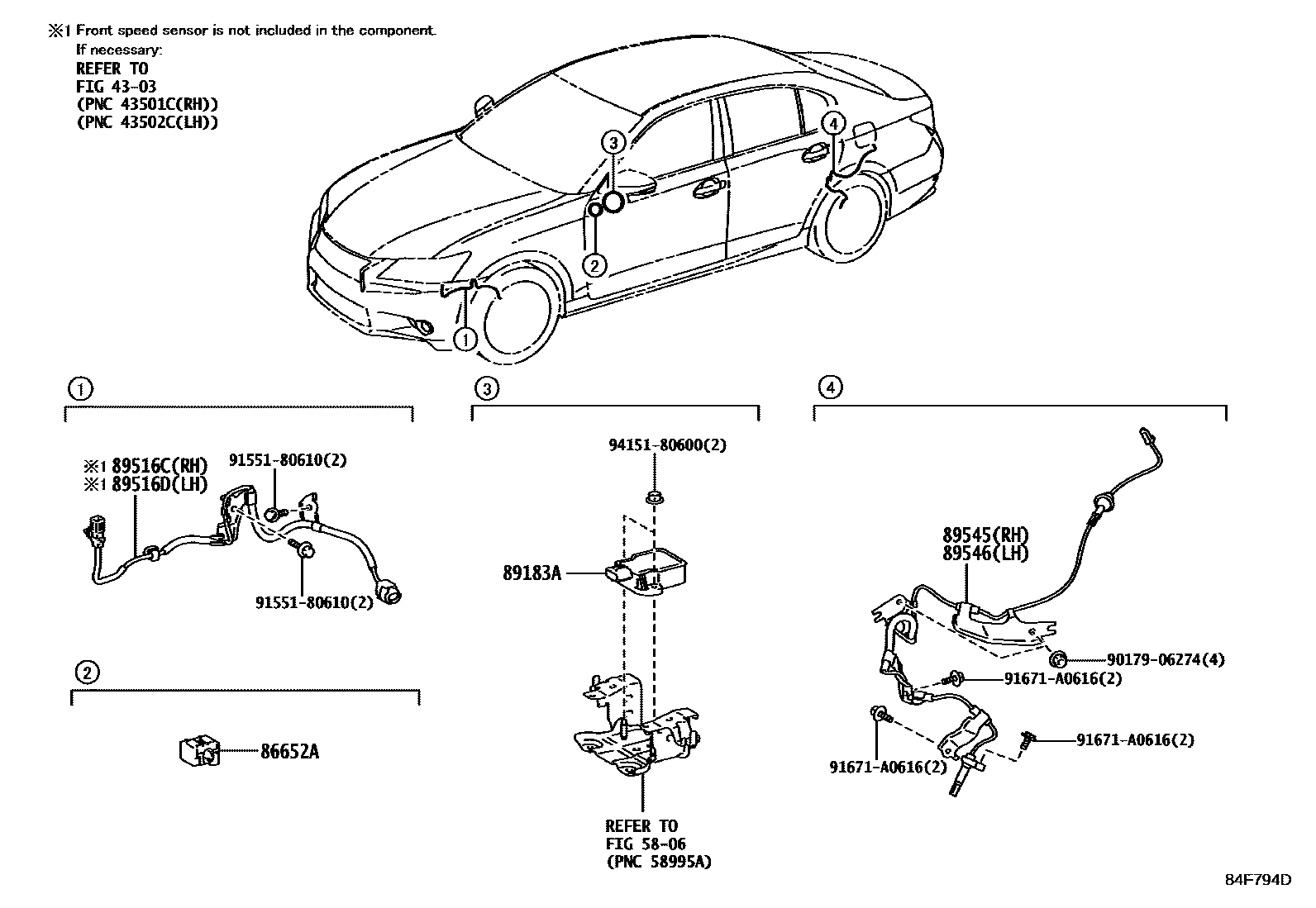

ABS & VSC

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1

4303

5806

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGWL10201203-201309

89183ASENSOR, YAWRATE

main89183-30080iGRL10201112-201812

main89183-50040iARL10,GRL1#201812-202007

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-24010iGRL10,GWL10201503-202007

main89516-30140iGRL10,11,GWL10201204-201309

main89516-30160iGRL10,11201112-201204

sub89516-30140

main89516-30220iGRL10,GWL10201309-201510

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-24020iGRL10,GWL10201503-202007

main89516-30170iGRL11201112-201510

89545SENSOR, SPEED, REAR RH

main89545-30080iGRL10201112-202007

89546SENSOR, SPEED, REAR LH

main89546-30080iARL10,GRL1#,GWL10201112-202007

9017906274

main90179-06274

9155180610

main91551-80610

91671A0616

main91671-A0616

9415180600

main94151-80600

12 parts on this diagram · 6 diagrams in section
