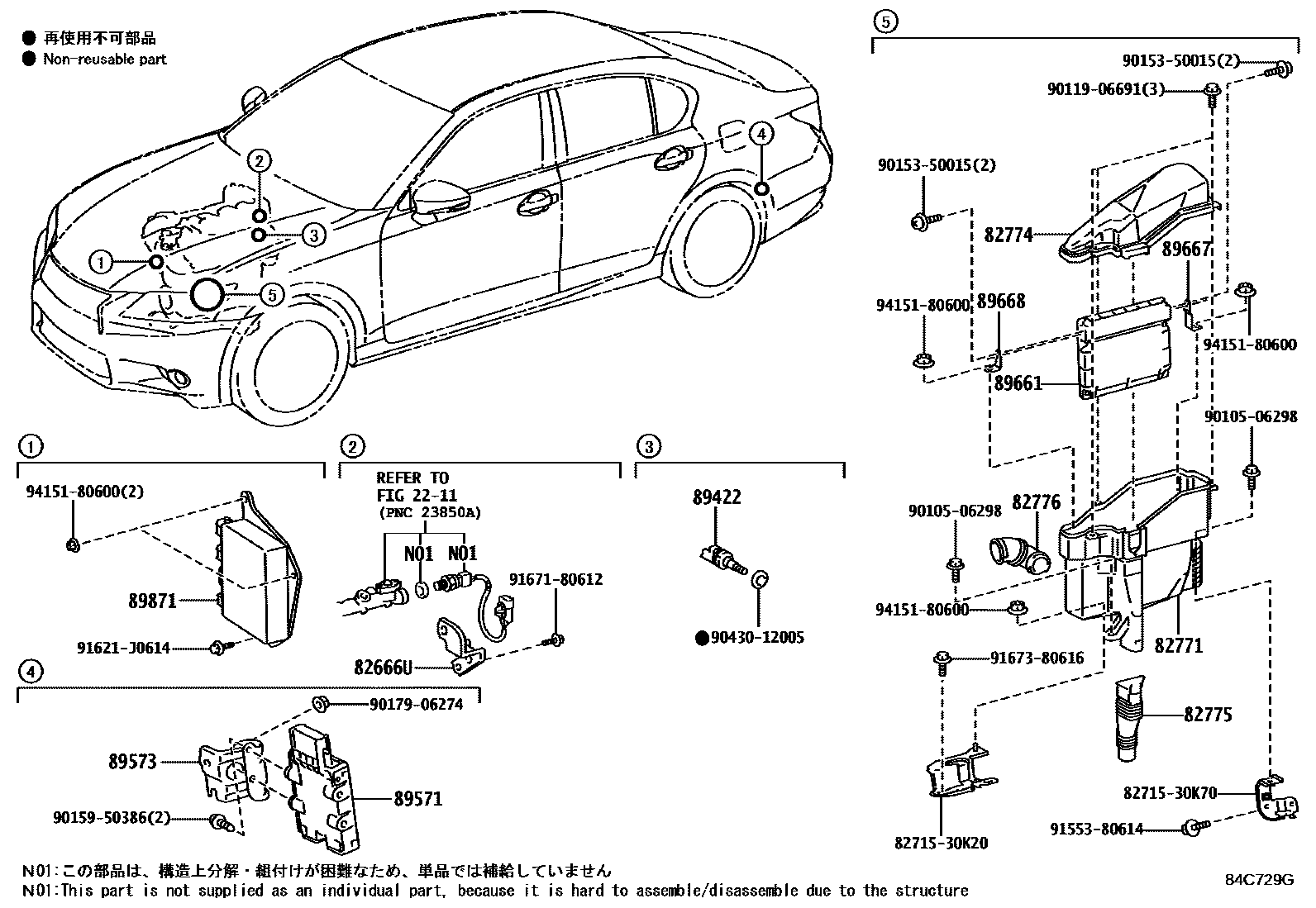

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

2211

82666UHOLDER, CONNECTOR

main82666-30780iGRL10201201-201510

82771BOX, ENGINE ROOM ECU

main82771-24010iGRL10,15201503-201510

main82771-30060iGRL15;GRL10..8FC201112-201510

main82771-30070iGWL10201203-201809

main82771-30090iARL10,GRL1#201510-202007

82774COVER, ENGINE ROOM ECU

main82774-30060iGRL10201112-201510

main82774-30080iGWL10201203-201809

main82774-30090iARL10,GRL1#201510-202007

82775DUCT, ENGINE ROOM ECU INLET

main82775-24010iGRL10,15201503-202007

main82775-30070iGRL15;GRL10..8FC201112-201510

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30150iGRL11,15;GRL10..8FC201112-201510

main82776-30160iARL10,GRL1#201510-202007

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRL10201201-201908

main89422-47010iGRL1#201510-202007

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iGRL10201201-201510

main89571-58010iARL10,GRL1#201510-202007

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30090iGRL10..8FC;GRL11,15,GWL10201201-201510

main89573-53030iARL10,GRL1#201510-202007

89661COMPUTER, ENGINE CONTROL

main89661-30Q00iGWL10201609-201809

main89661-30T50iGWL10201203-201402

sub89661-30T51

main89661-30T51iGWL10201403-201409

main89661-30U40iGRL11201201-201309

main89661-30U50iGRL10201112-201201

sub89661-30U51

main89661-30U51iGRL10201202-201206

sub89661-30U52

main89661-30U52iGRL10201207-201309

main89661-30U60iGRL15201112-201201

sub89661-30U61

main89661-30U61iGRL15201202-201206

sub89661-30U62

main89661-30U62iGRL15201207-201309

main89661-30X30iGRL11201309-201510

main89661-30X40iGRL10201309-201311

sub89661-30X41

main89661-30X41iGRL10201312-201510

sub89661-30X42

main89661-30X50iGRL15201309-201311

sub89661-30X51

main89661-30X51iGRL15201312-201510

sub89661-30X52

main89661-30Z40iGWL10201409-201510

sub89661-30Z41

main89661-30Z50iARL10201809-201811

DENSO

sub89661-30Z51

main89661-30Z51iARL10201812-201908

DENSO

main89661-30Z90iARL10201510-201511

sub89661-30Z91

main89661-30Z91iARL10201511-201604

sub89661-30Z92

main89661-30Z92iARL10201605-201606

sub89661-30Z93

main89661-30Z93iARL10201607-201609

sub89661-30Z94

main89661-3AA70iGWL10201510-201603

sub89661-3AA71

main89661-3AA71iGWL10201604-201609

sub89661-3AA72

main89661-3AB10iGRL12201510-201511

sub89661-3AB11

main89661-3AB11iGRL12201512-201709

sub89661-3AB12

main89661-3AB20iGRL16201510-201511

sub89661-3AB21

main89661-3AB21iGRL16201512-201709

sub89661-3AB22

main89661-3AE30iARL10201609-201710

sub89661-3AE31

main89661-3AE31iARL10201711-201802

DENSO

main89661-3AE32iARL10201803-201809

DENSO

main89661-3AG20iGRL12201709-201804

sub89661-3AG21

main89661-3AG21iGRL12201805-201809

DENSO

sub89661-3AG22

main89661-3AG30iGRL16201709-201804

sub89661-3AG31

main89661-3AG31iGRL16201805-201809

DENSO

sub89661-3AG32

main89661-3AJ10iGRL12201809-201812

DENSO

sub89661-3AJ11

main89661-3AJ11iGRL12201901-201907

DENSO

sub89661-3AJ12

main89661-3AJ12iGRL12201908-202007

DENSO

main89661-3AJ20iGRL16201809-201812

DENSO

sub89661-3AJ21

main89661-3AJ21iGRL16201901-201907

DENSO

sub89661-3AJ22

main89661-3AJ22iGRL16201908-202007

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30300iGRL1#201112-201510

main89667-30310iGWL10201203-201809

main89667-53040iARL10,GRL1#201510-202007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30250iGWL10201203-201809

main89668-30280iGRL1#201112-201510

main89668-53040iARL10,GRL1#201510-202007

89871DRIVER, INJECTOR

main89871-30040iGWL10201203-201809

main89871-53010iGRL1#201201-201510

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70

9010506298

main90105-06298

9011906691

main90119-06691

9015350015

main90153-50015

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9167380616

main91673-80616

9415180600

main94151-80600

26 parts on this diagram · 4 diagrams in section
