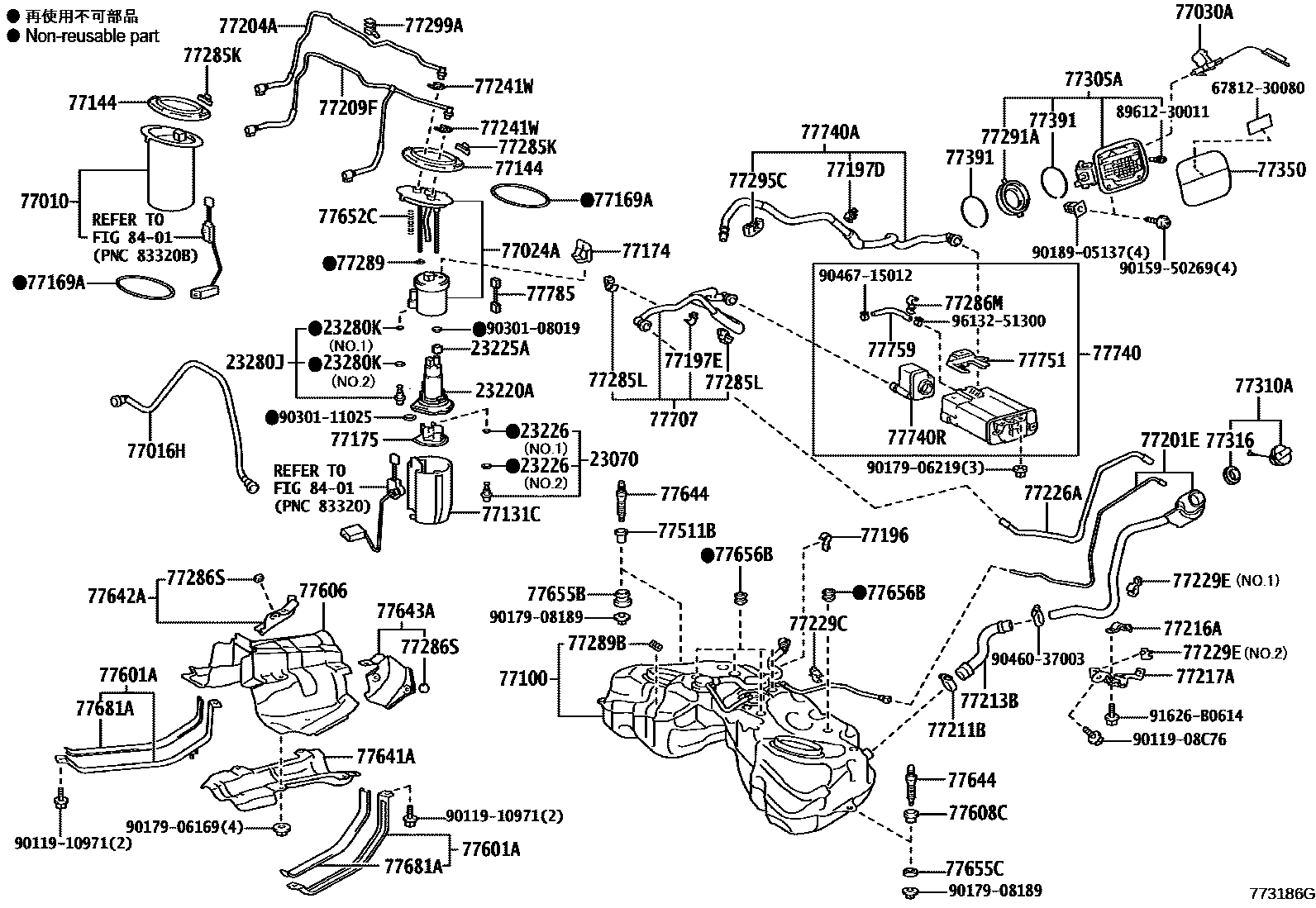

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE

23070VALVE ASSY, FUEL MAIN

main23070-31020i2GRFXE..GWL10201203-201809

NO.1:REFER ILLUST.

main23070-31030i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

NO.1:REFER ILLUST.

main23070-36010i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

NO.2:REFER ILLUST.

main23070-38020i2GRFSE..GRL10201112-201510

main23070-38020i2GRFXE..GWL10201203-201809

NO.2:REFER ILLUST.

23220APUMP ASSY, FUEL W/FILTER

main23220-38030i4GRFSE..GRL11201201-201510

main23220-38041i2GRFSE..GRL10201112-201809

23225ASPACER, FUEL PUMP

main23225-23010i2GRFSE..GRL10201112-201809

main23225-31010i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

23226RING, O(FOR FUEL PUMP)

main90301-04013i2GRFSE..GRL10201112-202007

NO.1:REFER ILLUST.

main90301-15024i2GRFSE..GRL10201112-202007

NO.2:REFER ILLUST.

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2GRFSE..GRL10201112-201809

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFSE..GRL10201112-201809

NO.1:REFER ILLUST.

main90301-15024i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201809

NO.2:REFER ILLUST.

77010TUBE ASSY, FUEL TANK VENT

main77010-30010iARL10,GRL1#,GWL10201112-202007

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-30090iGRL10201112-202007

main77016-30100iGWL10201203-201809

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30160iGRL10201112-201510

main77024-30180iGWL10201203-201809

main77024-53100iARL10,GRL1#201510-202007

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-30150iGRL10201112-202007

77100TANK ASSY, FUEL

main77001-30620iGRL10201112-202007

sub77001-24110

77131CSUB-TANK, FUEL, NO.1

main77131-30063iGWL10201112-202007

main77131-30091iGWL10201203-201311

sub77131-30063

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iGRL10201112-202007

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iGRL10201112-202007

77174SUPPORT, FUEL SUCTION, NO.1

main77174-30040iGRL10201112-201510

main77174-30050iGWL10201203-201809

main77174-53020iARL10,GRL1#201510-202007

77175SUPPORT, FUEL SUCTION, NO.2

main77175-50010iGRL10201112-201809

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30060iGRL10201112-202007

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iGRL1#,GWL10201112-202007

77197ECLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iGRL1#,GWL10201112-202007

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-30510iGRL10201112-201510

sub77201-30550

main77201-30550iARL10,GRL1#,GWL10201510-202007

77204ATUBE, FUEL TANK RETURN

main77204-30060iGRL1#201112-201303

sub77204-30061

main77204-30061iGRL10201304-201510

main77204-30080iGWL10201203-201303

sub77204-30081

main77204-30081iGWL10201304-201809

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30160iGRL10,15201112-201303

sub77209-30161

main77209-30161iGRL15;GRL10..8FC201304-201510

main77209-30260iGRL11201201-201303

sub77209-30261

main77209-30261iGRL11201304-201510

main77209-30280iGWL10201203-201303

sub77209-30281

main77209-30281iGWL10201304-201809

main77209-30340iGRL1#201510-202007

main77209-53130iARL10201510-201908

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-40005iGRL10201112-202007

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30210iGRL10201112-202007

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30080iGRL1#,GWL10201112-201301

sub77216-53010

main77216-53010iGRL10201302-202007

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30150iGRL1#,GWL10201112-201301

sub77217-53020

main77217-53020iGRL10201302-202007

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-30110iGRL10201112-202007

77229CCLAMP, BREATHER TUBE

main77229-30100iGRL10..8FC;GRL11,15,GWL10201112-202007

77229ECLAMP, BREATHER TUBE

main77229-30090iARL10,GRL1#,GWL10201112-202007

NO.1:REFER ILLUST.

main77229-33060iGRL1#,GWL10201112-202007

NO.2:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-33011iARL10,GRL1#201112-202007

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iGRL10..8FC;GRL11,15,GWL10201112-202007

77285LCLAMP, FUEL TUBE, NO.1

main77285-30310iARL10,GRL1#,GWL10201112-202007

77286MCLAMP, FUEL TUBE, NO.6

main77286-30250iGRL11,15;GRL10..8FC201112-202007

main77286-30260iGWL10201203-201809

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iARL10,GRL1#,GWL10201112-202007

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGRL10..8FC;GRL11,15,GWL10201112-202007

77289BCLAMP, FUEL TUBE, NO.3

main77289-30120iGRL10201112-202007

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-30090iARL10,GRL1#,GWL10201112-202007

77295CGROMMET, FUEL TUBE

main77295-60320iGRL10..8FC;GRL11,15,GWL10201112-202007

77299ACLAMP, FUEL TUBE, NO.5

main77299-30090iARL10,GRL1#,GWL10201112-202007

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-30020iGRL10201112-202007

77310ACAP ASSY, FUEL TANK

main77300-47040iGWL10201203-201309

main77300-53020iGRL1#201309-202007

main77300-53030iGWL10201309-201809

main77300-74010iGRL1#201112-201309

77316GASKET, FUEL TANK CAP

main77316-52040iGRL10201112-202007

main77316-75020iGWL10201203-201809

77350LID ASSY, FUEL FILLER OPENING

main77350-30420iGRL10201112-202007

77391RING, FUEL INLET BOX

main77391-12020iGRL10201112-202007

77511BBRACKET, FUEL TANK

main77511-48030iGRL10201112-202007

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-30190iGRL1#,GWL10201112-201309

main77601-53040iGRL1#,GWL10201309-201503

sub77601-53041

main77601-53041iGRL1#,GWL10201504-202007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30210iGRL10201112-202007

77608CCUSHION SET, FUEL TANK

main77608-48010iGRL10201112-202007

77641APROTECTOR, FUEL TANK, NO.1

main77641-30160iGRL10201112-202007

77642APROTECTOR, FUEL TANK, NO.2

main77642-30040iGRL10201112-202007

77643APROTECTOR, FUEL TANK, NO.3

main77643-30030iGRL10201112-202007

77644BOLT, FUEL TANK

main77644-48010iGRL10201112-202007

77652CSPRING, FUEL PUMP

main77652-30090iGRL1#,GWL10201112-202007

77655BCUSHION, FUEL TANK

main77655-30080iGRL10201112-202007

77655CCUSHION, FUEL TANK

main77655-48010iGRL10201112-202007

77656BCUSHION, FUEL TANK, NO.6

main77656-30030iGRL10201112-202007

77681ASEAT, FUEL TANK BAND

main77681-30030iGRL10..8FC;GRL11,15,GWL10201112-202007

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-30020iGRL1#201112-201509

sub77707-30021

main77707-30021iARL10,GRL1#201510-202007

main77707-30030iGWL10201203-201809

77740CANISTER ASSY, CHARCOAL

main77740-30350iGRL1#201112-202007

main77740-30370iGWL10201203-201809

main77740-53030iARL10201510-201908

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77404-30080iARL10,GRL1#201112-202007

main77404-30090iGWL10201203-201809

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-14005iGRL10201112-201505

sub90910-14008

main90910-14008iGWL10201505-202007

77751BRACKET, CHARCOAL CANISTER BASE

main77751-30160iGRL11,15;GRL10..8FC201112-202007

main77751-30170iGWL10201203-201809

77759HOSE, CHARCOAL CANISTER

main77759-30030iGRL11,15;GRL10..8FC201112-202007

main77759-30040iGWL10201203-201809

main77759-53010iARL10201510-201908

77785HARNESS, FUEL PUMP

main77785-48060iARL10,GRL1#201510-202007

main77785-53010iGRL10201112-201708

sub77785-53011

main77785-53011iGWL10201709-201809

8401

6781230080PAD, REAR DOOR SILENCER

main67812-30080

8961230011BRACKET, PUSH SWITCH

main89612-30011

9011908C76

main90119-08C76

9011910971

main90119-10971

9015950269

main90159-50269

9017906169

main90179-06169

9017906219

main90179-06219

9017908189

main90179-08189

9018905137

main90189-05137

9030108019

main90301-08019

9030111025

main90301-11025

9046037003

main90460-37003

9046715012

main90467-15012

91626B0614

main91626-B0614

9613251300

main96132-51300

80 parts on this diagram · 9 diagrams in section
