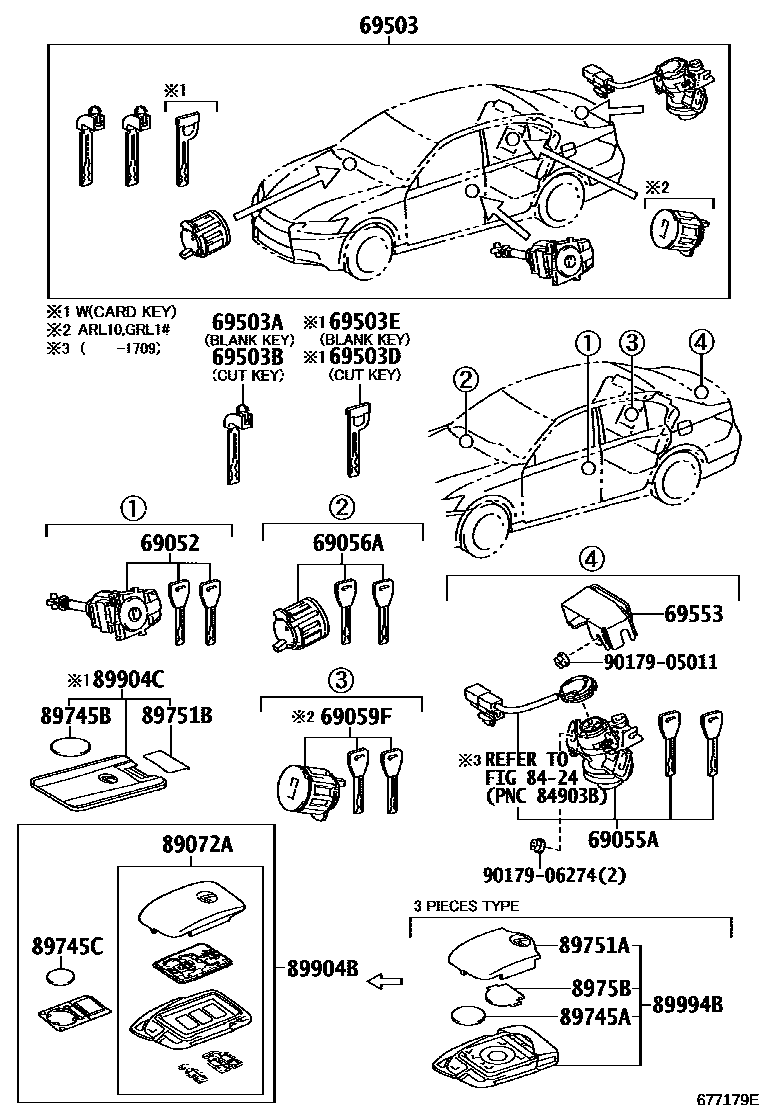

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30330iGRL10201112-202007

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30480iGRL1#,GWL10201112-201709

main69055-33540iARL10,GRL1#,GWL10201709-202007

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iGRL1#,GWL10201112-202007

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iGRL1#201112-202007

69503CYLINDER SET, LOCK

main69005-30C70iGRL11,15;GRL10..8FC201112-201709

sub69005-30E70

main69005-30C71iARL10,GRL1#201709-202007

main69005-30F10iGWL10201203-201709

main69005-30F11iGWL10201709-201809

69503AKEY, BLANK

main69515-30380iARL10,GRL1#,GWL10201112-202007

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370iGRL1#,GWL10201112-202007

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iGRL1#,GWL10201112-202007

MASTER KEY

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iGRL10..8FC;GRL11,15,GWL10201112-201510

main69553-30010iARL10,GRL1#,GWL10201510-202007

TYPE A:REFER ILLUST.

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-30170iGRL10,15201112-201203

sub89072-30171

main89072-30171iGRL10,15201204-201206

sub89072-30172

main89072-30172iGRL10201207-201510

main89072-30350iGWL10201203-201204

sub89072-30351

main89072-30351iGWL10201204-201206

sub89072-30352

main89072-30352iGWL10201207-201510

main89072-30530iARL10,GRL1#201510-202007

main89072-30700iGWL10201510-201809

89745ABATTERY, TRANSMITTER

main89745-50020iGRL11201201-201510

CR2032

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-45010iGRL10..8FC;GRL15,GWL10201112-202007

CR2032

sub89745-50020

89751ACOVER, TRANSMITTER HOUSING

main89751-30310iGRL11201201-201510

89751BCOVER, TRANSMITTER HOUSING

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iGRL11201201-201510

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30A30iGRL10,15201112-201206

sub89904-30A31

main89904-30A31iGRL15;GRL10..8FC201207-201510

main89904-30A90iGWL10201203-201206

sub89904-30A91

main89904-30A91iGWL10201207-201510

main89904-30G90iARL10,GRL1#201510-202007

main89904-30K20iGWL10201510-201809

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

89994BTRANSMITTER, ELECTRICAL KEY

main89904-30B70iGRL11201201-201510

9017905011

main90179-05011

9017906274

main90179-06274

23 parts on this diagram · 1 diagram in section
