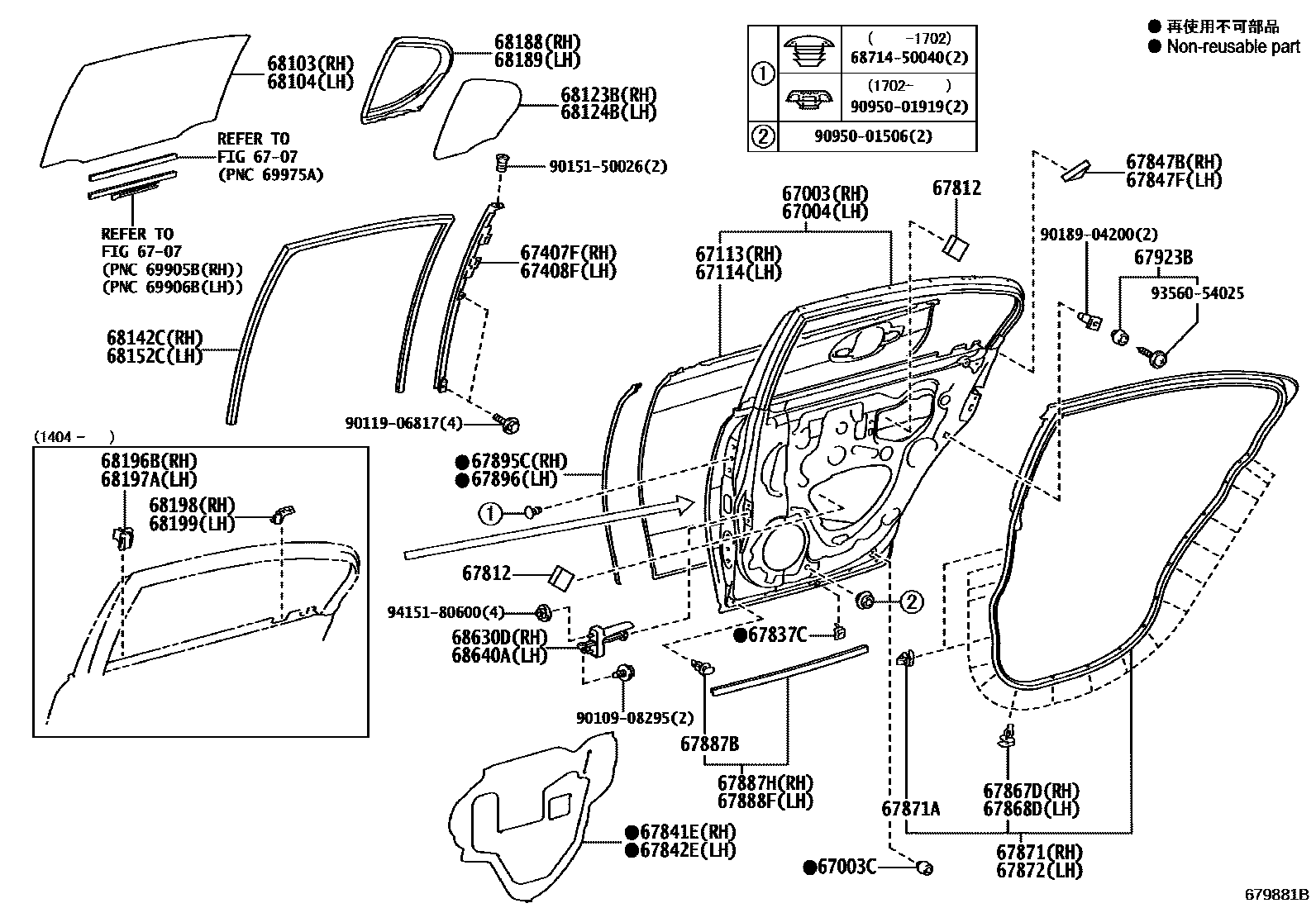

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30650iGRL10201112-201510

sub67003-30651

main67003-30651iARL10,GRL1#,GWL10201510-202007

67003CCUSHION, REAR DOOR PANEL

main90541-09069iGRL10201112-202007

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30650iGRL10201112-201510

sub67004-30651

main67004-30651iARL10,GRL1#,GWL10201510-202007

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-30430iGRL1#,GWL10201112-202007

67114PANEL, REAR DOOR, OUTER LH

main67114-30440iGRL1#,GWL10201112-202007

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-30230iGRL10201112-202007

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-30220iGRL10201112-202007

67812PAD, REAR DOOR SILENCER

main67811-30100iARL10,GRL1#,GWL10201112-202007

67837CSEAL, REAR DOOR DUST PROOF

main67837-30040iGRL10201112-202007

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30450iGRL1#,GWL10201112-201308

sub67841-30451

main67841-30451iGRL1#,GWL10201309-202007

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30310iGRL1#,GWL10201112-201308

sub67842-30311

main67842-30311iGRL1#,GWL10201309-202007

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-30020iGRL1#,GWL10201112-202007

67847FSEAL, REAR DOOR VENT, LH

main67847-30020iGRL10..8FC;GRL11,15,GWL10201112-202007

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iARL10,GRL1#,GWL10201112-202007

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iGRL10201112-202007

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30310iGRL10201112-202007

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iGRL10201112-202007

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30320iGRL10201112-202007

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67867-52010iGRL10201112-202007

RH

main67867-52030iARL10,GRL1#,GWL10201112-202007

LH

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30170iGRL10201112-202007

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30170iGRL10201112-202007

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-30040iGRL10201112-202007

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-30040iGRL10201112-202007

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-48060iGRL10201112-202007

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30820iGRL1#,GWL10201112-202007

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30740iGRL1#,GWL10201112-202007

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-30640iGRL10..8FC;GRL11,15,GWL10201112-202007

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-30570iGRL10201112-202007

68142CRUN, REAR DOOR GLASS, RH

main68142-30230iGRL10201112-202007

68152CRUN, REAR DOOR GLASS, LH

main68152-30130iGRL10201112-202007

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30200iGRL10201112-201404

sub68188-30201

main68188-30201iGRL1#,GWL10201404-202007

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30180iGRL10..8FC;GRL11,15,GWL10201112-201404

sub68189-30181

main68189-30181iGRL1#,GWL10201404-202007

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-30050iGRL1#,GWL10201404-202007

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-30050iGRL1#,GWL10201404-202007

68198SEAL, REAR DOOR BELT, REAR RH

main68198-30040iARL10,GRL1#,GWL10201404-202007

68199SEAL, REAR DOOR BELT, REAR LH

main68199-30020iARL10,GRL1#,GWL10201404-202007

68630DCHECK ASSY, REAR DOOR, RH

main68630-30230iGRL10..8FC;GRL11,15,GWL10201112-202007

68640ACHECK ASSY, REAR DOOR, LH

main68640-30130iGRL10..8FC;GRL11,15,GWL10201112-202007

6871450040

main68714-50040

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9018904200

main90189-04200

9095001506

main90950-01506

9095001919

main90950-01919

9356054025

main93560-54025

9415180600

main94151-80600

48 parts on this diagram · 2 diagrams in section
