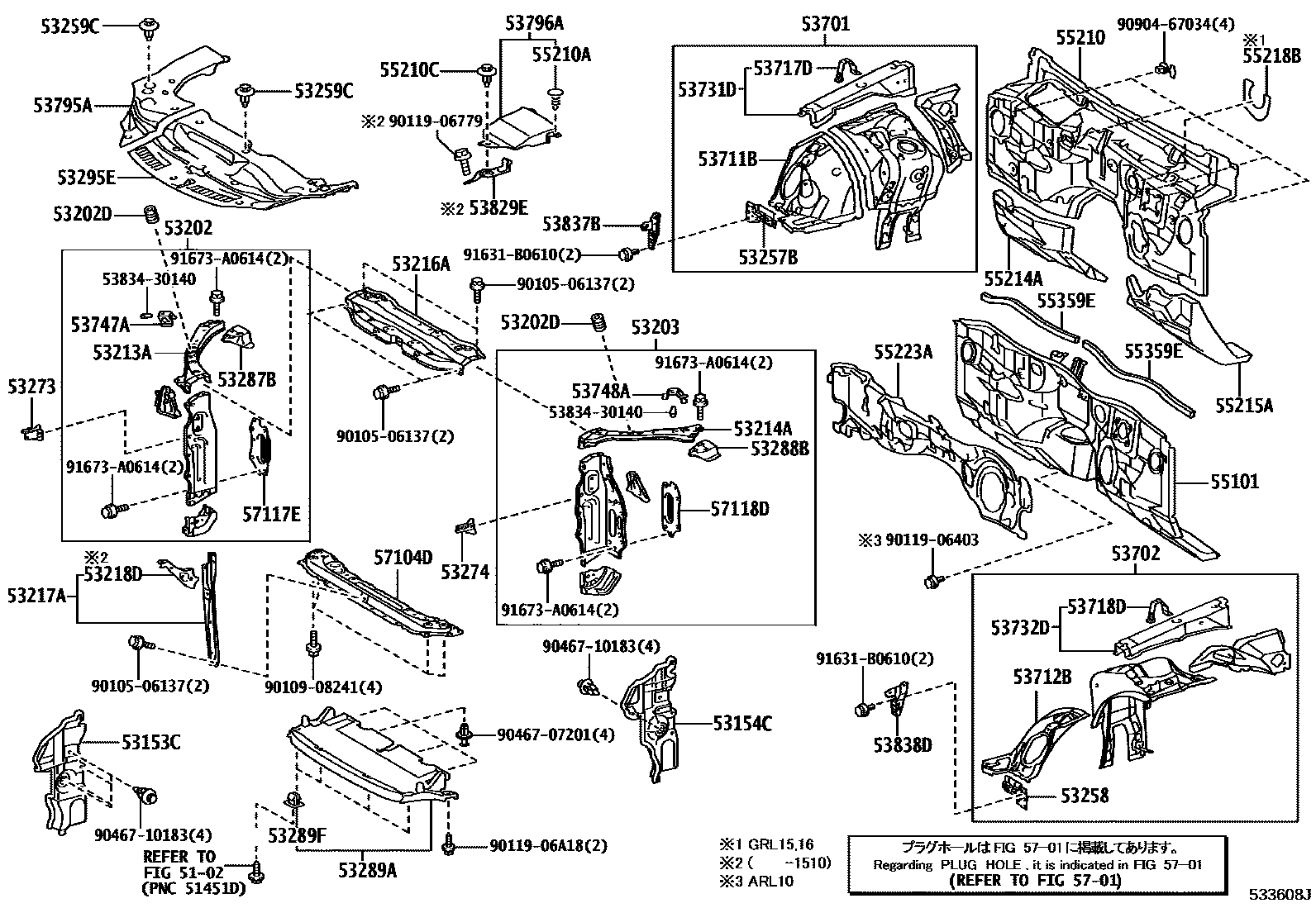

FRONT FENDER APRON & DASH PANEL

5102

53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30200iGRL10..8FC;GRL11,15,GWL10201112-201510

main53153-30280iARL10,GRL1#,GWL10201510-202007

53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30190iGRL10201112-201510

main53154-30260iARL10,GRL1#,GWL10201510-202007

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30120iGRL1#,GWL10201112-201211

sub53202-30121

main53202-30121iGRL1#,GWL10201212-201303

sub53202-30122

main53202-30122iGRL10201304-202007

53202DCUSHION, RADIATOR SUPPORT

main90541-15034iGRL10201112-202007

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30130iGRL10201112-202007

53213ASUPPORT, RADIATOR, UPPER RH

main53213-30130iGRL10201112-202007

53214ASUPPORT, RADIATOR, UPPER LH

main53214-30120iGRL10201112-202007

53216ASUPPORT, RADIATOR, UPPER

main53216-30260iGRL10201112-201503

sub53216-30261

main53216-30261iGRL1#,GWL10201504-202007

53217ABRACE, HOOD LOCK SUPPORT

main53217-30903iGRL10201112-201510

main53217-30904iARL10,GRL1#,GWL10201510-202007

53218DEXTENSION, HOOD LOCK BRACE

main53218-30150iGRL10201112-201510

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-30090iGRL1#,GWL10201112-201303

main53257-30120iGRL10201304-202007

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-30070iGRL10201112-202007

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211iGRL1#,GWL10201112-201207

main90467-07217iGRL1#,GWL10201208-202007

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-30090iGRL10..8FC;GRL11,15,GWL10201112-202007

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-30070iGRL10201112-202007

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30080iGRL10201112-202007

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30070iGRL10201112-202007

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30180iGRL1#,GWL10201112-201510

main53289-30250iARL10,GRL1#,GWL10201510-202007

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90189-06237iGRL1#,GWL10201112-202007

53295ESEAL, COOL AIR INTAKE DUCT

main53295-30100iGRL10201112-201510

main53295-30270iARL10,GRL1#,GWL10201510-202007

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30B10iGRL10,11,GWL10201112-201205

sub53701-30B11

sub53715-30030

sub90179-06274

sub91673-80616

main53701-30B11iGRL10,11,GWL10201205-201303

sub53701-30B12

main53701-30B12iGRL10..8FC201304-201310

sub53701-30B13

main53701-30B13iGRL10,11,GWL10201310-201405

sub53701-30B14

main53701-30B14iGRL10,11,GWL10201406-201504

sub53701-30B15

main53701-30B15iGRL10,11,GWL10201505-201510

sub53701-30B80

main53701-30B20iGRL15201112-201205

sub53701-30B21

sub53715-30030

sub90179-06274

sub91673-80616

main53701-30B21iGRL15201205-201303

sub53701-30B22

main53701-30B22iGRL15201304-201309

sub53701-30B23

main53701-30B23iGRL15201310-201405

sub53701-30B24

main53701-30B24iGRL15201406-201504

sub53701-30B25

main53701-30B25iGRL15201505-201510

sub53701-30B90

main53701-30B80iARL10,GRL12,GWL10201510-202007

main53701-30B90iGRL16201510-202007

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30870iGRL10,11,GWL10201112-201310

sub53702-30871

main53702-30871iGRL10,11,GWL10201310-201405

sub53702-30872

main53702-30872iGRL10,11,GWL10201406-201504

sub53702-30873

main53702-30873iGRL10,11,GWL10201505-201510

sub53702-30A40

main53702-30880iGRL15201112-201309

sub53702-30881

main53702-30881iGRL15201310-201405

sub53702-30882

main53702-30882iGRL15201406-201504

sub53702-30883

main53702-30883iGRL15201505-201510

sub53702-30A50

main53702-30A40iARL10,GRL12,GWL10201510-202007

main53702-30A50iGRL16201510-202007

53711BAPRON, FRONT FENDER, FRONT RH

main53711-24050iGRL1#,GWL10201406-202007

main53711-3A030iGRL1#,GWL10201112-201205

sub53711-3A031

sub53715-30030

sub90179-06274

sub91673-80616

main53711-3A031iGRL10..8FC;GRL11,15,GWL10201205-201405

sub53711-24050

53712BAPRON, FRONT FENDER, FRONT LH

main53712-24060iGRL1#,GWL10201406-202007

main53712-30640iGRL10201112-201405

sub53712-24060

53717DGUSSET, FENDER APRON, RH

main53717-30080iARL10,GRL1#,GWL10201112-202007

53718DGUSSET, FENDER APRON, LH

main53717-30080iGRL10..8FC;GRL11,15,GWL10201112-202007

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-30050iGRL10201112-201504

sub53705-30051

main53705-30051iGRL11201502-202007

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-30090iGRL10201112-201504

sub53706-30091

main53706-30091iGRL11201502-202007

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-30080iGRL10201112-202007

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-30060iGRL10201112-202007

53795ACOVER, ENGINE ROOM, SIDE

main53795-30060iGRL10201112-201510

main53795-30170iARL10,GRL1#,GWL10201510-202007

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-30150iGRL10201112-201510

main53796-30160iGWL10201203-201510

main53796-30170iARL10,GRL1#201510-202007

main53796-30180iGWL10201510-201809

53829EBRACKET, FRONT FENDER TO COWL LOUVER MOUNT, LH

main53829-30020iGRL11,15;GRL10..8FC201112-201510

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-30040iGRL10201112-202007

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-30080iGRL10..8FC;GRL11,15,GWL10201112-202007

55101PANEL SUB-ASSY, DASH

main55101-30B60iGRL10201112-201510

sub55101-53260

main55101-30B70iGRL15201112-201510

sub55101-53270

main55101-30B90iGWL10201203-201510

sub55101-53280

main55101-53260iARL10,GRL12201510-202007

main55101-53270iGRL16201510-202007

main55101-53280iGWL10201510-201809

55210INSULATOR ASSY, DASH PANEL

main55210-30460iGRL10201112-201511

sub55210-30461

main55210-30461iARL10,GRL1#,GWL10201512-202007

55210ACLIP

main90467-05045-22iGRL1#,GWL10201112-202007

BLACK

sub90467-05045

55210CCLIP

main90467-07211iGRL1#,GWL10201112-201207

main90467-07217iGRL10201208-202007

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-30070iGRL1#,GWL10201112-201308

main55214-30140iGRL1#,GWL10201309-202007

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-30280iGRL10,11,GWL10201112-201309

main55215-30281iGRL10,11,GWL10201309-202007

main55215-30290iGRL16201112-202007

55218BSEAL, DASH PANEL INSULATOR

main55218-30020iGRL15201112-202007

55223AINSULATOR, DASH PANEL, OUTER

main55223-30231iGRL10201112-201412

sub55223-30232

main55223-30232iGRL1#,GWL10201501-201512

sub55223-30233

main55223-30233iARL10,GRL1#,GWL10201601-202007

55359ECUSHION, INSTRUMENT PANEL, NO.5

main55355-30100iGRL10..8FC;GRL11,15,GWL10201112-201510

main55355-30120iARL10,GRL1#,GWL10201510-202007

5701

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-30090iGRL10201112-202007

sub57104-30091

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-30050iGRL10201112-202007

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-30050iGRL10201112-202007

5383430140PANEL, FRONT FENDER SIDE, LOWER LH

main53834-30140

9010506137

main90105-06137

9010908241

main90109-08241

9011906403

main90119-06403

9011906779

main90119-06779

9011906A18

main90119-06A18

9046707201

main90467-07201

9046710183

main90467-10183

9090467034

main90904-67034

91631B0610

main91631-B0610

91673A0614

main91673-A0614

60 parts on this diagram · 1 diagram in section
