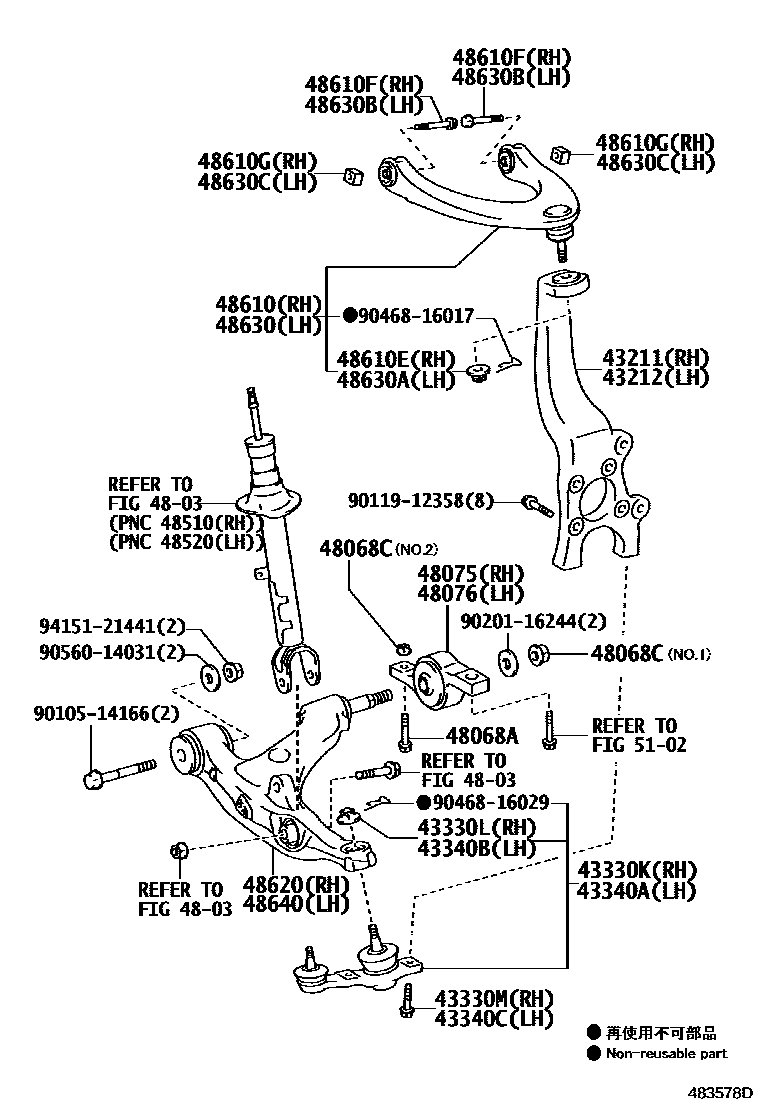

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30030iARL10,GRL12,GWL10201112-202007

main43201-30040iGRL15201112-202007

43212KNUCKLE, STEERING, LH

main43202-30040iARL10,GRL12,GWL10201112-202007

main43202-30050iGRL15201112-202007

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39635iGRL16201112-202007

main43330-39865iARL10,GRL12,GWL10201112-202007

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14014iGRL10..8FC;GRL11,15,GWL10201112-202007

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iARL10,GRL1#,GWL10201112-202007

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGRL15201112-202007

main43340-39625iGRL10201112-202007

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14014iARL10,GRL1#,GWL10201112-202007

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iARL10,GRL1#,GWL10201112-202007

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12332iGRL16201112-202007

main91552-L1265iGRL10..8FC;GRL11,GWL10201112-202007

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iGRL10201112-202007

NO.2

main94151-21601iGRL10..8FC;GRL11,GWL10201112-202007

NO.1

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-24070iARL10,GRL12,GWL10201510-202007

OFFSET:0,REFER R/M

main48075-24100iARL10,GRL12,GWL10201510-202007

OFFSET:+20,REFER R/M

main48075-24110iARL10,GRL12,GWL10201510-202007

OFFSET:-20,REFER R/M

main48075-30030iGRL15201112-202007

main48075-30060iGRL10,11,GWL10201112-201510

OFFSET:0,REFER R/M

main48075-30080iGRL10,11,GWL10201112-201510

OFFSET:+20,REFER R/M

main48075-30090iGRL10,11,GWL10201112-201510

OFFSET:-20,REFER R/M

sub48075-30091

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-24040iARL10,GRL12,GWL10201510-202007

OFFSET:0,REFER R/M

main48076-24070iARL10,GRL12,GWL10201510-202007

OFFSET:+20,REFER R/M

main48076-24080iARL10,GRL12,GWL10201510-202007

OFFSET:-20,REFER R/M

main48076-30030iGRL16201112-202007

main48076-30060iGRL10,11,GWL10201112-201510

OFFSET:0,REFER R/M

main48076-30080iGRL10,11,GWL10201112-201510

OFFSET:+20,REFER R/M

main48076-30090iGRL10,11,GWL10201112-201510

OFFSET:-20,REFER R/M

sub48076-30091

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39185iGRL10..8FC;GRL11,GWL10201112-202007

main48610-39195iGRL16201112-202007

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iARL10,GRL1#,GWL10201112-202007

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iGRL10201112-202007

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iGRL10..8FC;GRL11,15,GWL10201112-202007

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30320iARL10,GRL12,GWL10201112-202007

main48620-30330iGRL15201112-202007

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39195iGRL15201112-202007

main48630-39115iGRL10..8FC;GRL11,GWL10201112-202007

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iGRL10201112-202007

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iGRL10..8FC;GRL11,15,GWL10201112-202007

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iARL10,GRL1#,GWL10201112-202007

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30320iGRL10201112-202007

main48640-30330iGRL15201112-202007

5102

9010514166

main90105-14166

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441
