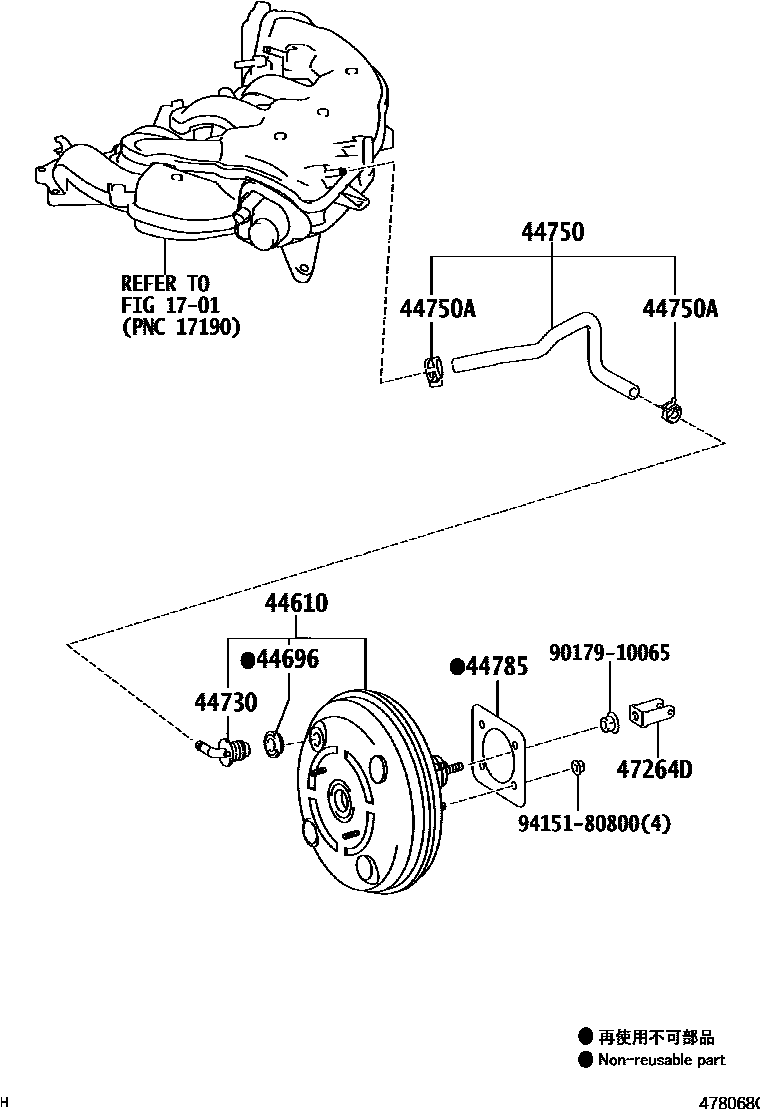

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-30B50iGRL1#201112-201510

main44610-53450iARL10,GRL1#201510-202007

44696GROMMET, CHECK VALVE

main90480-24439iGRL10201112-202007

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iARL10,GRL1#201510-202003

main44730-20170iGRL1#201112-201510

main44730-52010iGRL1#202004-202007

44750HOSE ASSY, VACUUM

main44750-53120iGRL11201201-201510

main44750-53140iGRL10201112-201510

main44750-53220iARL10201510-201908

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014iGRL11201201-202007

main90467-16014iGRL10201112-201510

NO.2

main96133-41500iGRL15;GRL10..8FC201112-201510

NO.1

44785GASKET, BRAKE BOOSTER

main44785-47010iGRL10201112-202007

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRL10201112-202007

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 4 diagrams in section
