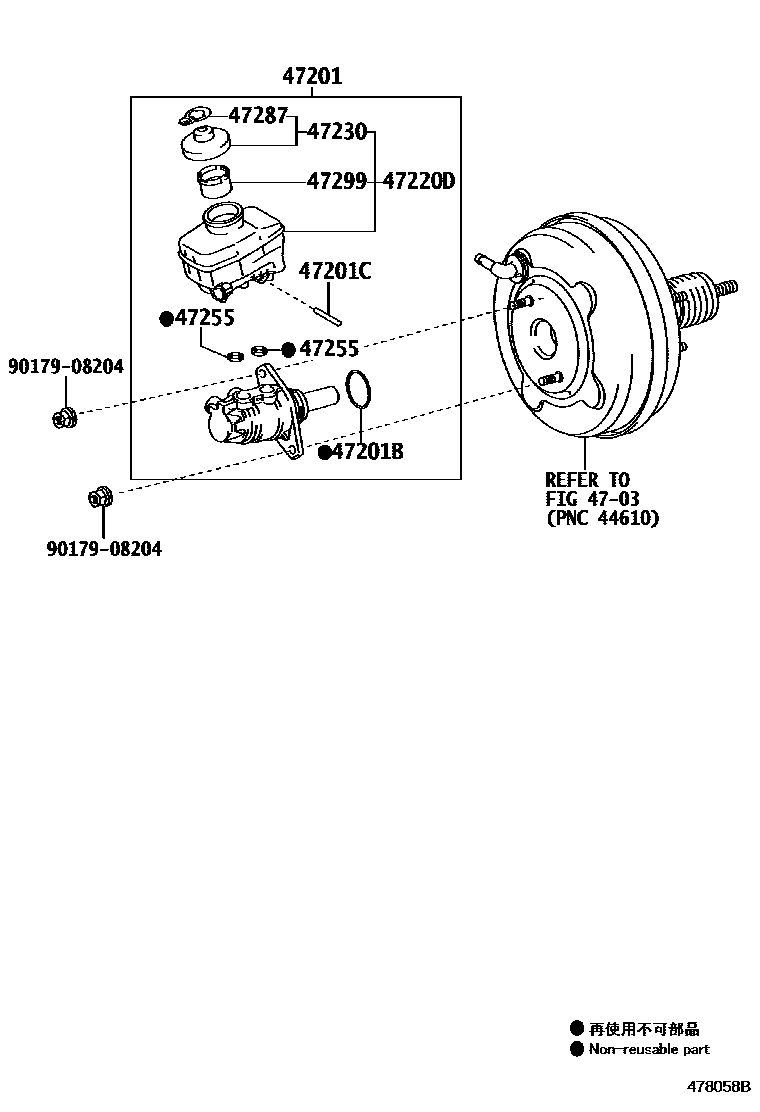

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30820iGRL1#201112-201202

sub47201-30821

main47201-30821iGRL1#201203-201204

sub47201-30822

main47201-30822iGRL10201205-201510

main47201-30840iGWL10201203-201809

main47201-30870iARL10,GRL1#201510-202007

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRL10201112-202007

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRL10201112-202007

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30220iARL10,GRL1#201112-202007

main47220-30240iGWL10201203-201809

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRL10201112-202007

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGRL10201112-202007

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRL10..8FC;GRL11,15,GWL10201112-202007

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iARL10,GRL1#201112-202007

main47299-30190iGWL10201203-201809

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
