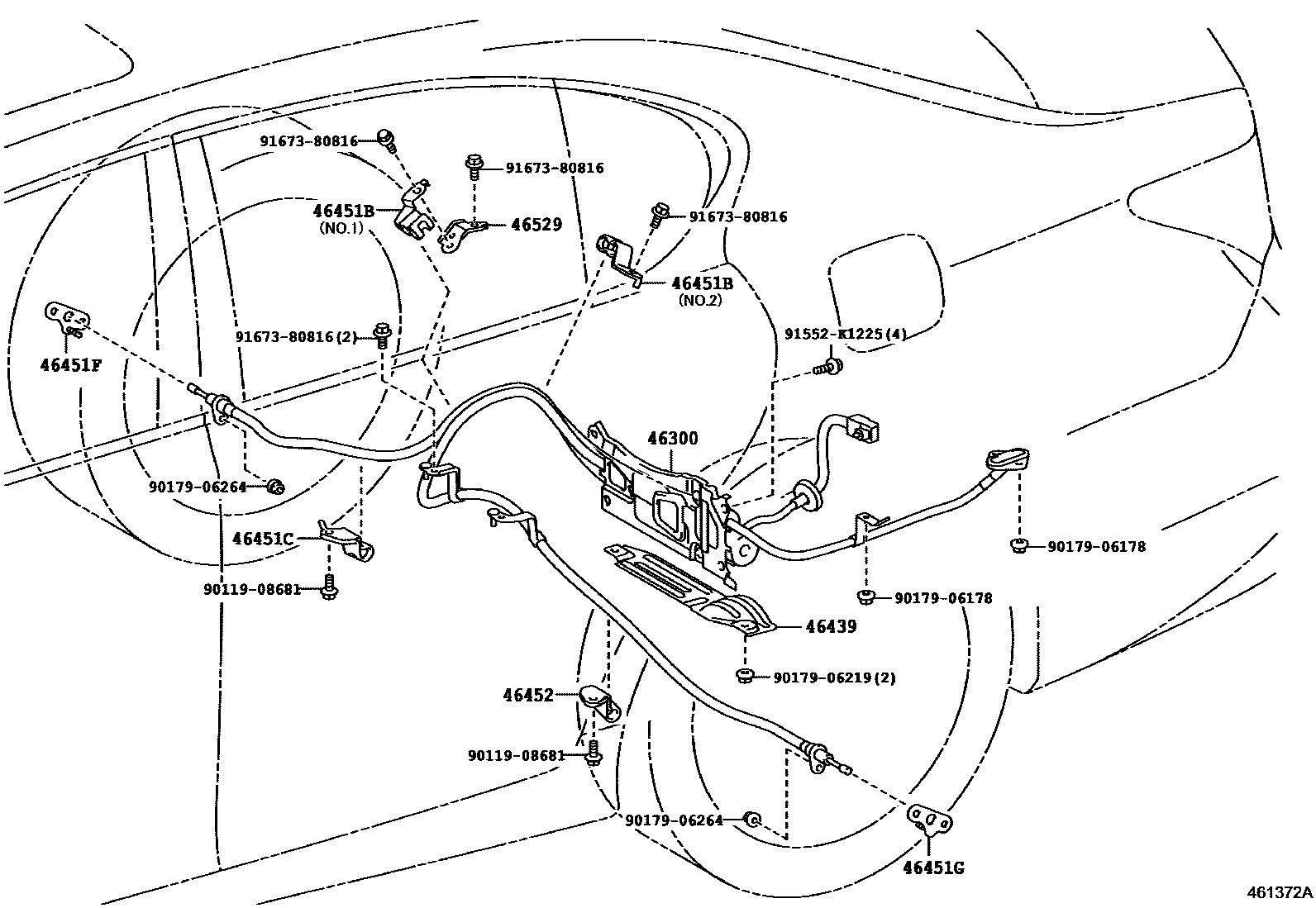

PARKING BRAKE & CABLE

0001 1CABLE,W/O(LDH) 0002 1CABLE,W(LDH) 0003 1CABLE 0004 1BRAKE SHOE & LEVER

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-30010iARL10201510-201908

main46300-30020iGRL10201112-202007

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-30020iGRL10201112-202007

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-30240iARL10201510-201908

NO.2

main46451-30250iGRL10..8FC;GRL11,15,GWL10201112-202007

NO.1

main46451-30260iGRL10201112-202007

NO.2

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iGRL10201112-202007

46451FBRACKET, CABLE SUPPORT

main46451-30270iARL10,GRL1#,GWL10201112-202007

46451GBRACKET, CABLE SUPPORT

main46451-30280iARL10,GRL1#,GWL10201112-202007

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iGRL10201112-202007

46529BRACKET, CABLE CLAMP

main46529-30010iGRL10201112-202007

9011908681

main90119-08681

9017906178

main90179-06178

9017906219

main90179-06219

9017906264

main90179-06264

91552K1225

main91552-K1225

9167380816

main91673-80816

14 parts on this diagram · 4 diagrams in section
