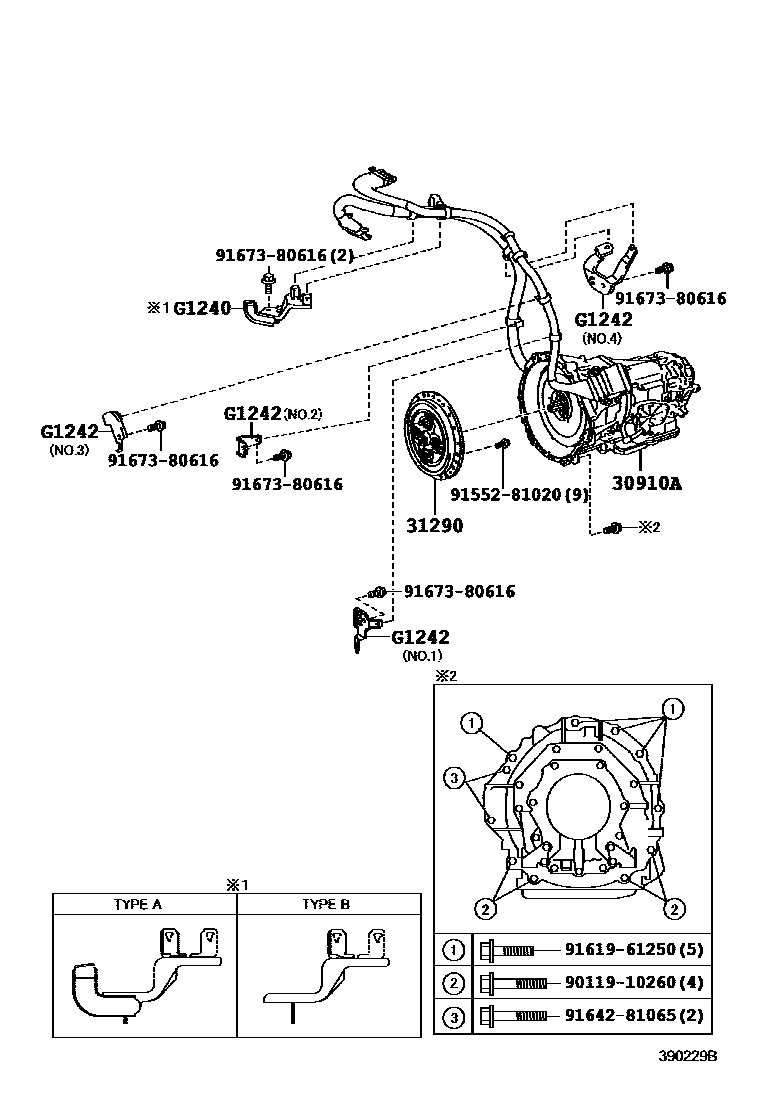

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1TRANSMISSION & FITTING PARTS 0002 1TRANSMISSION LH SIDE 0003 1TRANSMISSION RH SIDE

30910ATRANSMISSION ASSY, HYBRID VEHICLE

main30910-30090iGWL10201203-201304

PNC G2148 REFER

sub30910-30110

subG1240-30051

main30910-30110iGWL10201304-201809

PNC G2148 REFER

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWL10201203-201809

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124030050iGWL10201203-201304

TYPE A:REFER ILLUST.

mainG124030051iGWL10201304-201809

TYPE B:REFER ILLUST.

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230060iGWL10201203-201809

NO.1:REFER ILLUST.

mainG124230070iGWL10201203-201809

NO.2:REFER ILLUST.

mainG124230100iGWL10201203-201809

NO.3:REFER ILLUST.

mainG124230110iGWL10201203-201809

NO.4:REFER ILLUST.

9011910260

main90119-10260

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

9167380616

main91673-80616

9 parts on this diagram · 3 diagrams in section
