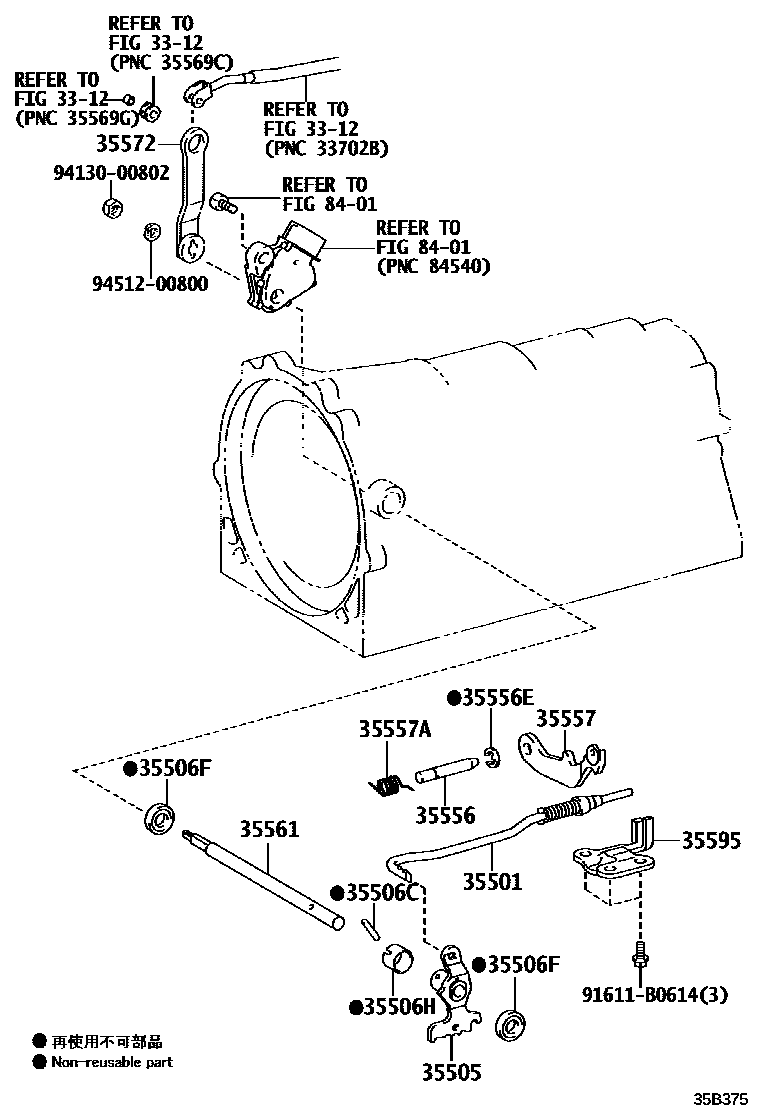

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A760E,A960E 0002 1A760H 0003 1AA81E

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-30040iGRL11201201-201510

main35501-30050iGRL16201112-202007

main35501-50020iARL10,GRL12201309-202007

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30040iGRL10201309-202007

main35505-53030iGRL10201112-202007

main35505-53040iGRL11201201-201510

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRL10201112-202007

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRL10201112-202007

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRL1#201112-202007

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRL10201112-202007

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRL11,15;GRL10..8FC201112-202007

35557PAWL, PARKING LOCK

main35557-30050iGRL16201112-202007

main35590-50010iGRL10201112-201409

sub35590-50030

main35590-50020iARL10,GRL12201309-202007

main35590-50030iGRL11201409-201510

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iGRL16201112-202007

main90949-03137iGRL11201201-201510

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGRL10201112-201510

main35561-50030iGRL10201309-202007

main35561-60030iGRL15201112-202007

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGRL10,11..6FC201112-201510

main35572-30100iGRL10201309-202007

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGRL10201112-202007

main35595-50020iARL10,GRL12201309-202007

8401

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 3 diagrams in section
