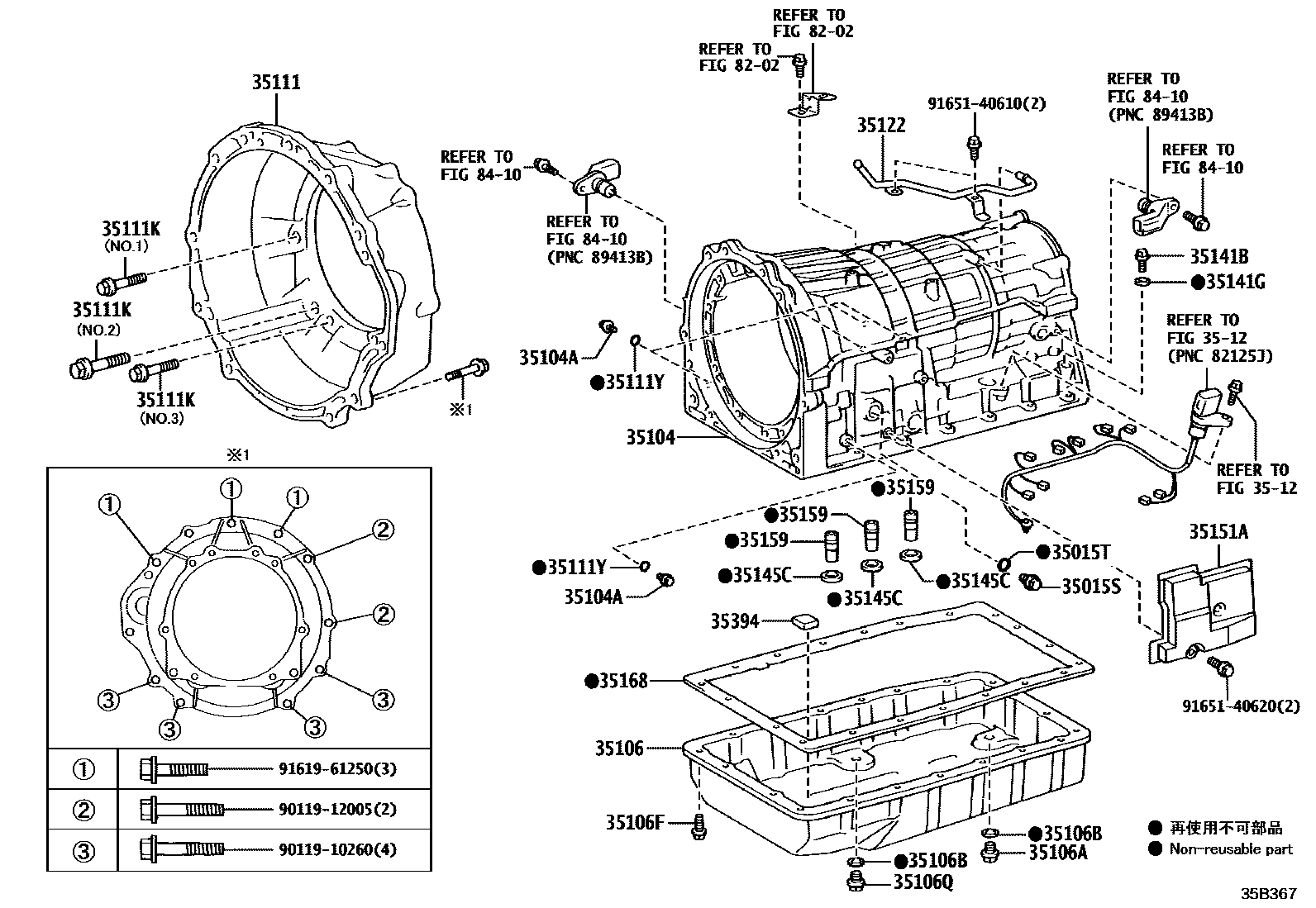

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A760E 0002 1A760H 0003 1A960E 0004 1AA81E 0005 1AA81E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRL10201112-202007

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRL11,15;GRL10..8FC201112-202007

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRL11201201-201510

main35104-30220iGRL16201112-202007

main35104-30240iGRL12201309-202007

main35104-50020iGRL10201112-201309

main35104-53010iARL10201510-201908

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGRL11,15201112-202007

main90341-14011iGRL10201309-202007

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30260iGRL16201112-202007

main35106-30270iGRL11201201-201510

main35106-30300iGRL10201309-201505

sub35106-30310

main35106-30310iARL10,GRL12201506-202007

main35106-50040iGRL10201112-201309

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRL10201112-201510

main90341-10011iGRL10201309-202007

NO.1

main90341-10021iARL10,GRL12201309-202007

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iARL10,GRL1#201112-202007

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173iGRL11,15201112-202007

main90119-06982iGRL10201309-202007

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRL16201112-202007

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRL11201201-201510

main35111-30190iGRL16201112-202007

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGRL1#..6FC201112-202007

*10-1.5PX35-30,NO.1

main90119-10947iGRL1#..6FC201112-202007

*10-1.50PX35-29.3,NO.3

main90119-12378iGRL1#..6FC201112-202007

*12-1.75PX38-30,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGRL11,15201112-202007

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03182iGRL11201201-201510

main90930-03184iGRL15201112-202007

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRL10201112-202007

main90341-24017iGRL10201309-202007

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRL10201112-202007

main90301-20013iGRL10201309-202007

35145CGASKET, TRANSAXLE CASE

main35145-60020iGRL10201112-202007

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRL11201201-201510

main35151-30040iGRL10201112-201309

35159GASKET, BRAKE DRUM

main35159-60010iGRL10201112-202007

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRL11201201-201510

main35168-50010iARL10,GRL12201309-202007

main35168-60010iGRL10201112-202007

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGRL15201112-202007

main35394-48010iARL10201309-202007

8202

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 5 diagrams in section
