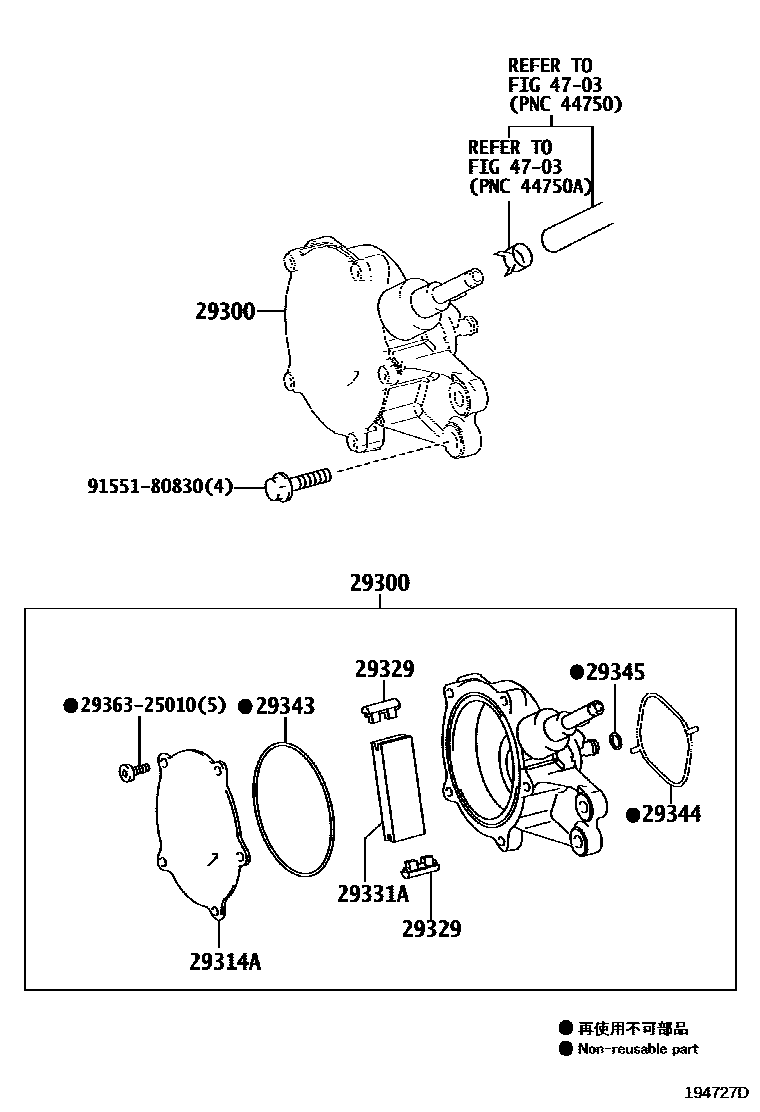

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-31020i2GRFKS..GRL1#201510-201610

sub29300-31021

main29300-31021i2GRFKS..GRL1#201611-202007

main29300-36020i8ARFTS..ARL10201510-201908

29314ACOVER, END

main29314-31010i2GRFKS..GRL1#201510-202007

main29314-36010i8ARFTS..ARL10201510-201908

29329CAP, VACUUM PUMP VANE

main29329-37010i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

29331AVANE, VACUUM PUMP

main29331-36010i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

29343RING, O VACUUM PUMP, NO.1

main29343-36010i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2GRFKS..GRL1#201510-202007

main29344-36010i8ARFTS..ARL10201510-201908

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180830

main91551-80830

10 parts on this diagram · 2 diagrams in section
