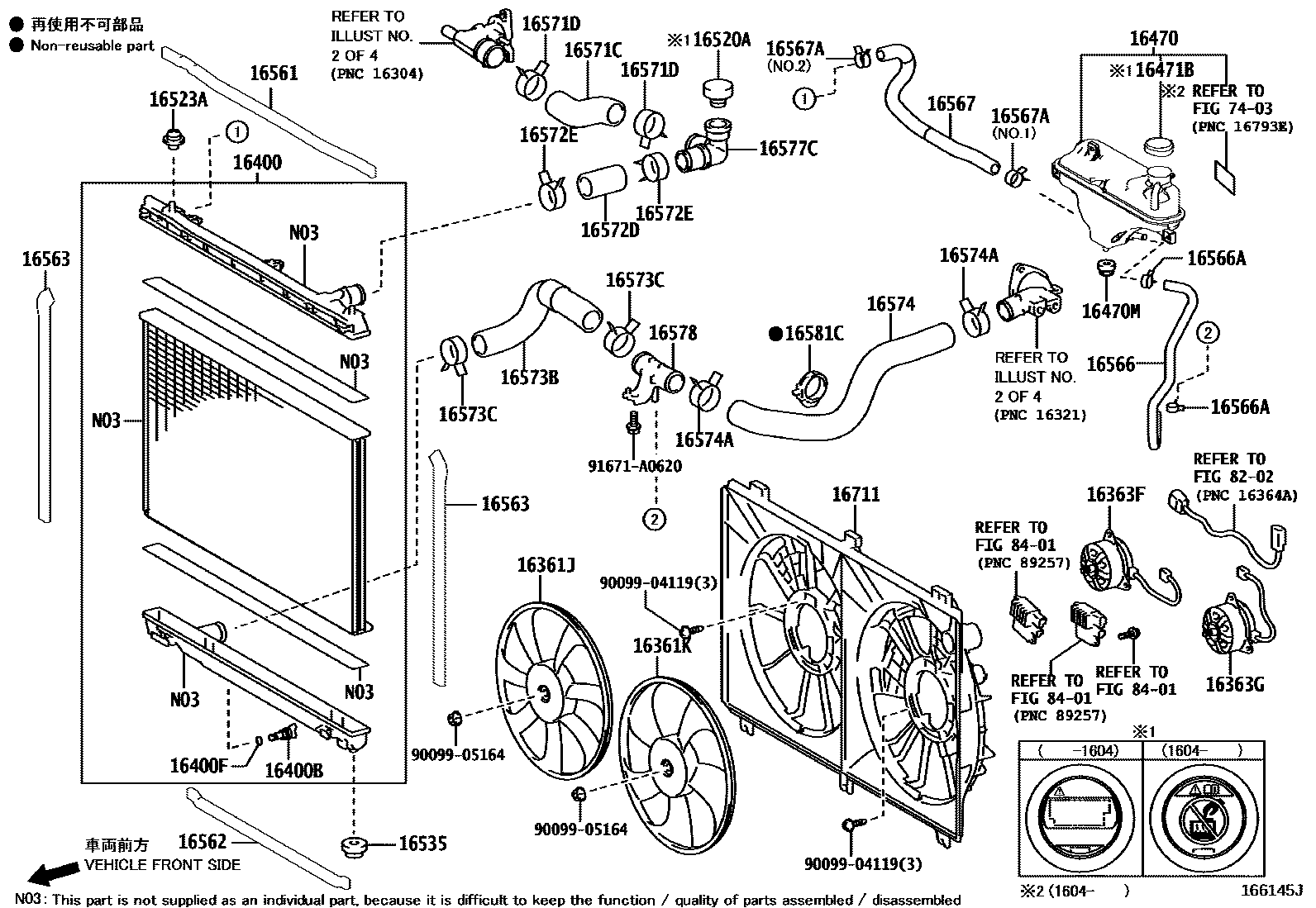

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE PIPING 1/2 0003 1ENGINE PIPING 2/2 0004 1INTERCOOLER SIDE 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16361JFAN, RH

main16361-31430i2GR#,4GRFSE..GRL1#,GWL10201112-202007

main16361-38120i8ARFTS..ARL10201510-201908

16361KFAN, LH

main16361-31410i2GRFKS..GRL1#201112-202007

main16361-38030i2GRFXE,4GRFSE..GRL11,GWL10201201-201809

main16361-38110i8ARFTS..ARL10201510-201908

16363FMOTOR, COOLING FAN, RH

main16363-38160i8ARFTS..ARL10201510-201908

main16363-50040i2GR#,4GRFSE..GRL1#,GWL10201112-202007

16363GMOTOR, COOLING FAN, LH

main16363-31290i2GRFXE..GWL10201201-201809

main16363-31300i2GRFSE..GRL10,15201112-202007

main16363-38160i8ARFTS..ARL10201510-201908

16400RADIATOR ASSY

main16400-31800i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main16400-31820i2GRFXE..GWL10201203-201510

sub16400-31B00

sub16567-36030

sub96136-42701

main16400-31A50i2GRFKS..GRL1#201510-202007

main16400-31A60i2GRFXE..GWL10201510-201809

main16400-36150i8ARFTS..ARL10201510-201908

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i8ARFTS..ARL10201112-201908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFSE..GRL10201112-202007

16470TANK ASSY, RADIATOR RESERVE

main16470-31150i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

sub16470-31151

main16470-31160i2GRFXE..GWL10201203-201409

sub16470-31161

main16470-31161i2GRFXE..GWL10201410-201504

W/LABEL

sub16470-31162

main16470-31162i2GRFXE..GWL10201504-201510

W/O LABEL

sub16470-31163

main16470-36031i8ARFTS..ARL10201510-201603

sub16470-36032

main16470-36032i8ARFTS..ARL10201604-202007

16470MGROMMET

main90480-18010i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-202007

16471BCAP, RESERVE TANK

main16405-31110i2GRFSE..GRL10201112-201310

sub16405-31140

main16405-31140i2GRFSE,4GRFSE..GRL1#201310-201510

main16475-28140i2GRFKS..GRL1#201604-202007

main16475-37010i2GRFXE..GWL10201203-201409

sub16475-28140

main16475-37011i2GR#..GRL1#,GWL10201410-201604

sub16475-28140

16520ACAP SUB-ASSY, WATER FILLER

main16501-36012i8ARFTS..ARL10201510-201603

sub16501-36013

main16501-36013i8ARFTS..ARL10201604-201908

16523ACUSHION, RADIATOR SUPPORT

main16523-38010i2GRFSE..GRL10201112-202007

16535SUPPORT, RADIATOR, LOWER

main90480-40021i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201603

main90480-40022i8ARFTS..ARL10201604-202007

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31090i2GRFSE..GRL10201112-201510

main16561-31110i8ARFTS..ARL10201510-202007

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-31040i2GRFXE..GWL10201112-201510

main16562-31040i2GRFXE..GWL10201304-201410

NO.1

main16562-31060i2GRFXE..GWL10201510-202007

main16562-31060i2GRFXE..GWL10201802-201809

NO.1

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-31020i2GRFSE..GRL10201112-201510

main16563-31050i2GR#..GRL1#,GWL10201510-202007

16566HOSE, RESERVE TANK OUTLET

main16566-31010i2GRFXE..GWL10201203-201510

main16566-31030i2GR#..GRL1#,GWL10201510-202007

main16566-36010i8ARFTS..ARL10201510-201704

sub16566-36011

main16566-36011i8ARFTS..ARL10201704-201908

16566ACLIP(FOR RESERVE TANK OUTLET)

main96137-41701i8ARFTS..ARL10201203-202007

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31030i2GRFXE..GWL10201203-201510

main16567-36030i8ARFTS..ARL10201510-202007

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90466-21004i2GR#..GRL1#,GWL10201510-201604

NO.1

main90466-21004i2GRFXE..GWL10201203-201510

main90466-21004i8ARFTS..ARL10201510-202007

NO.1:REFER ILLUST.

main96136-42701i2GR#..GRL1#,GWL10201510-201604

NO.2

main96136-42701i8ARFTS..ARL10201510-202007

NO.2:REFER ILLUST.

16571CHOSE, RADIATOR, NO.1

main16571-31320i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201809

main16571-31380i2GRFKS..GRL1#201510-202007

main16571-36260i8ARFTS..ARL10201510-201908

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002i2GRFSE..GRL10201112-202007

16572DHOSE, RADIATOR, NO.2

main16572-31400i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main16572-31410i2GRFXE..GWL10201203-201510

main16572-31450i2GR#..GRL1#,GWL10201510-202007

main16572-36220i8ARFTS..ARL10201510-201908

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i2GR#..GRL1#,GWL10201112-202007

16573BHOSE, RADIATOR, NO.3

main16573-31040i2GRFXE..GWL10201203-201510

main16573-31060i2GRFKS..GRL1#201510-202007

main16573-31070i2GRFXE..GWL10201510-201809

main16573-36020i8ARFTS..ARL10201510-201908

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-39002i8ARFTS..ARL10201203-202007

16574HOSE, RADIATOR, NO.4

main16574-36040i8ARFTS..ARL10201510-201908

16574ACLIP, RADIATOR HOSE, NO.4

main90466-39002i8ARFTS..ARL10201510-201908

16577CPIPE, RADIATOR

main16577-31030i2GRFXE..GWL10201203-202007

main16577-36020i8ARFTS..ARL10201510-201908

16578PIPE, RADIATOR, NO.2

main16578-36010i8ARFTS..ARL10201510-201908

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-31010i2GRFSE..GRL10201112-201510

main16581-33080i8ARFTS..ARL10201510-201908

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-31040i2GRFXE..GWL10201203-202007

16711SHROUD, FAN

main16711-31560i2GRFXE,4GRFSE..GRL11,GWL10201201-201510

main16711-31570i2GRFSE..GRL10201112-201510

main16711-31620i2GRFXE..GWL10201510-201809

main16711-31630i2GRFKS..GRL1#201510-202007

main16711-38160i8ARFTS..ARL10201510-201908

7403

8202

8401

9009904119

main90099-04119

9009905164

main90099-05164

91671A0620

main91671-A0620

39 parts on this diagram · 10 diagrams in section
